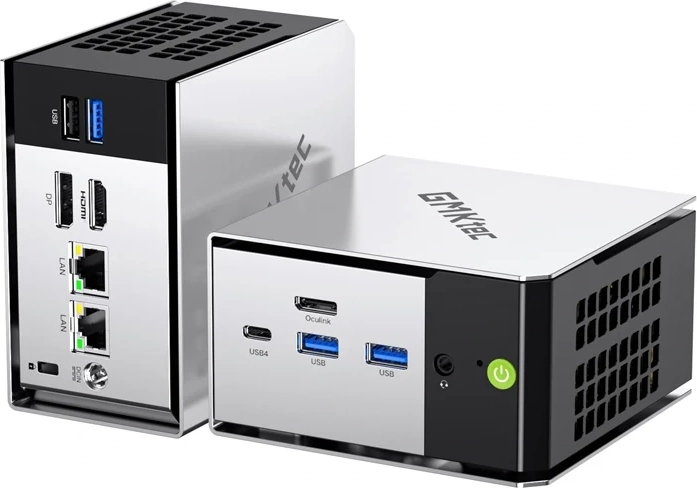

The compact GMKtec M8 Mini PC delivers high performance for work, multimedia and demanding multitasking. The AMD Ryzen 5 PRO 6650H processor, 16 GB LPDDR5 RAM and 1TB SSD are complemented by support for up to three 8K monitors, fast Wi-Fi 6E networking and two 2.5G LAN ports.

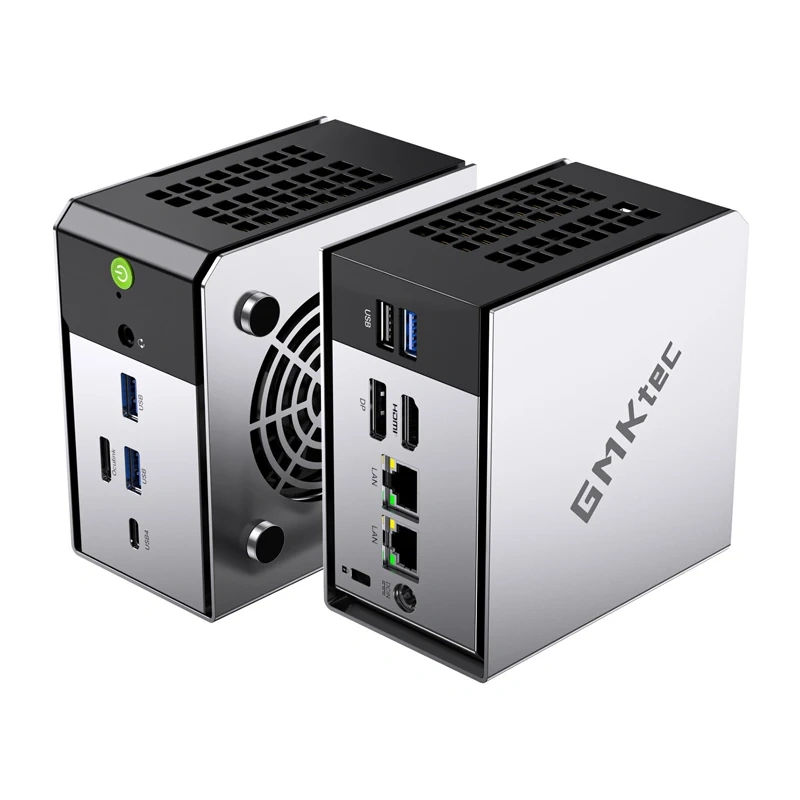

The GMKtec M8 is a powerful mini PC in a compact chassis measuring 110 × 108 × 64 mm. The six-core AMD Ryzen 5 PRO 6650H processor with 12 threads, a frequency of up to 4.5 GHz and integrated AMD Radeon 660M graphics provides smooth operation for office applications, technical software, content creation and multimedia. The pre-installed Windows 11 Pro operating system is ready for immediate use; the device also supports Linux.
Fast system responsiveness is ensured by 16 GB of LPDDR5 memory with a speed of 6400 MT/s and the pre-installed 1TB M.2 2280 PCIe 3.0 SSD. Storage can be further expanded using two M.2 2280 PCIe 4.0 x4 slots, each supporting a drive with a capacity of up to 8 TB. The design allows drives to be replaced without tools.
Key features:
- simultaneous connection of up to three displays at resolutions of up to 8K at 60 Hz via HDMI 2.0, DisplayPort 1.4 and USB4,
- modern connectivity with Wi-Fi 6E, Bluetooth 5.2 and 2× 2.5G LAN,
- USB4 with data transfer speeds of up to 40 Gb/s, power delivery and DisplayPort support,
- OCuLink port for connecting an external eGPU graphics card,
- effective cooling with two fans and copper heat pipes,
- selectable 28 W, 35 W and 40 W performance modes for balancing quiet operation and performance.
Specifications
- Manufacturer
- GMKtec
- Model
- M8
- Device type
- Mini PC
- Dimensions
- 110 × 108 × 64 mm
- Weight
- 482 g
- Chassis material
- Metal and plastic
- Processor
- AMD Ryzen 5 PRO 6650H
- Number of cores / threads
- 6 / 12
- Maximum clock speed
- Up to 4.5 GHz
- Cache
- 16 MB L3 cache
- Graphics
- AMD Radeon 660M
- Operating modes / power consumption
- 28 W / 35 W / 40 W
- System memory
- 16 GB LPDDR5, 6400 MT/s
- eMMC
- No
- Pre-installed storage
- 1 TB M.2 2280 PCIe 3.0 SSD
- SSD slots
- 2× M.2 2280 PCIe 4.0 x4, supports up to 2× 8 TB
- 2.5" HDD/SSD support
- No
- TF card reader
- No
- Storage interface
- PCIe
- Real-time clock
- Supported
- BIOS support
- Yes
- TPM
- TPM 2.0 support
- Video outputs
- 1× HDMI 2.0, 1× DisplayPort 1.4, 1× USB4 with DisplayPort
- Display support
- Up to 3 displays simultaneously, up to 8K at 60 Hz
- Wi-Fi
- Wi-Fi 6E
- Wi-Fi bands
- 2.4 GHz / 5 GHz / 6 GHz
- Bluetooth
- Bluetooth 5.2
- LAN
- 2× RJ45 2.5G LAN, compatible with 2.5 G / 1 G / 100 M / 10 M
- USB 2.0
- 1× USB-A 2.0
- USB 3.2
- 3× USB-A 3.2 Gen 2
- USB4
- 1× USB4, up to 40 Gb/s, Power Delivery and DisplayPort
- OCuLink
- 1× OCuLink PCIe Gen4 x4
- Audio
- 1× 3.5 mm headphone connector, CTIA
- Status indicator
- Power LED indicator
- Controls
- 1× power button
- Antennas
- Built-in dual antenna
- Operating system
- Pre-installed Windows 11 Pro, Linux support
- Cooling
- Two fans and copper heat pipes
- Operating temperature
- 0 to 40 °C
- Storage temperature
- 0 to 40 °C
- Operating humidity
- 35 to 80% relative humidity, non-condensing
- Power supply
- DC IN 20 V / 5 A, 100 W
- VESA
- Yes
- IR remote control
- No
- Maximum transmission power
- 18.5 dBm, theoretical value for the AMD RZ616 Wi-Fi module
