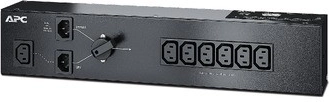

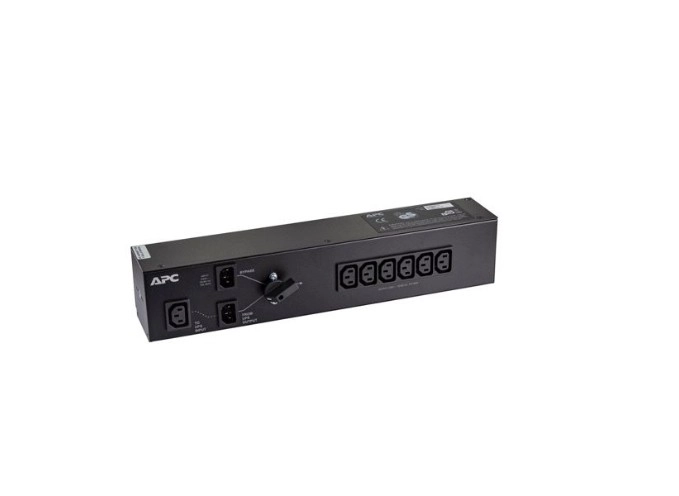

APC service bypass enables the safe disconnection and maintenance of a compatible UPS system without interrupting power to connected devices. It features a single-phase design, a current rating of 10 A, a C14 input, and 6 C13 outputs.
The service bypass is a practical solution for power management in offices, server rooms, and other installations with a UPS. It allows power to connected equipment to be transferred to the bypass branch during servicing or replacement of the backup power supply.
Thanks to the C14 input connector and six C13 output sockets, multiple devices with the corresponding power interface can be connected easily.
- Single-phase design for input and output
- Rated current up to 10 A
- 1× C14 input
- 6× C13 outputs
Specifications
- Product type
- Service bypass for UPS
- Manufacturer
- APC
- Phase configuration
- 1f/1f
- Rated current
- 10 A
- Input connector
- C14
- Output connectors
- 6× C13
- Sales unit
- 1 piece
