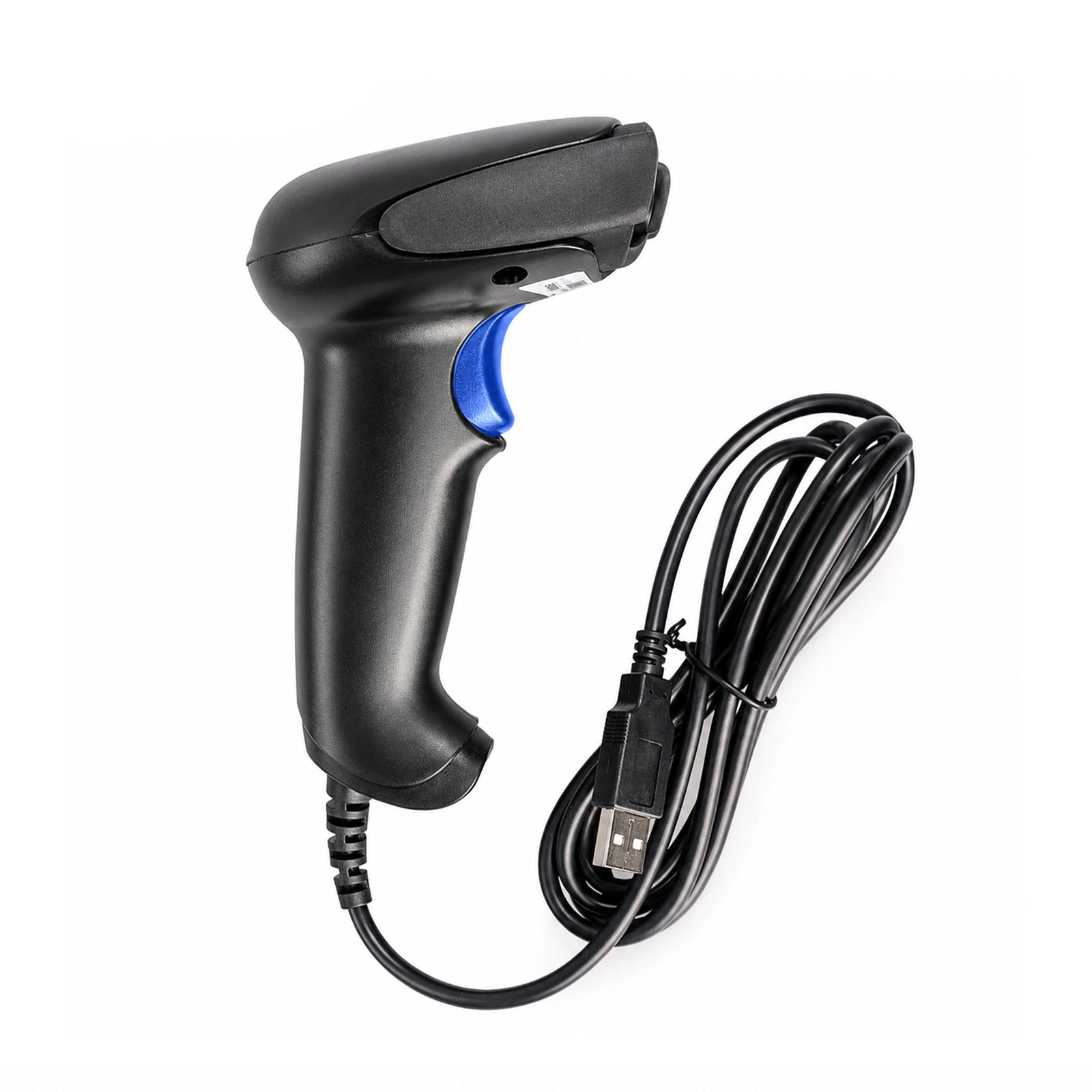

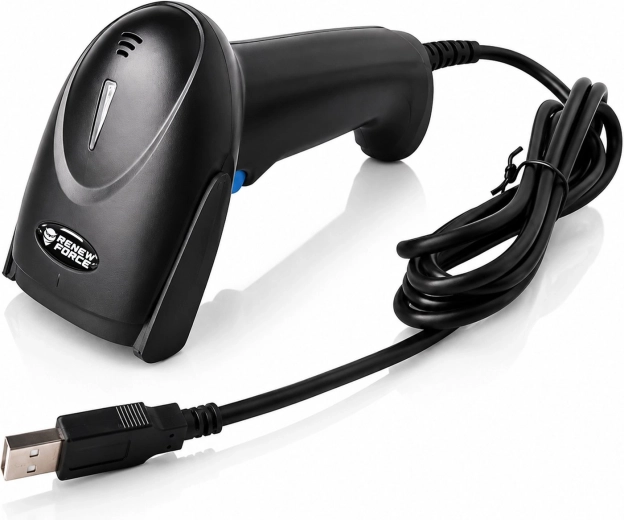

1D Wired Barcode Scanner Renew Force is a fast and durable solution for stores, warehouses, logistics, and e-commerce. The linear CCD scanner reaches a speed of at least 300 scans per second, supports USB and USB-COM interfaces, offers both manual and automatic continuous modes, and thanks to its IP54 protection rating, is suitable for everyday use.

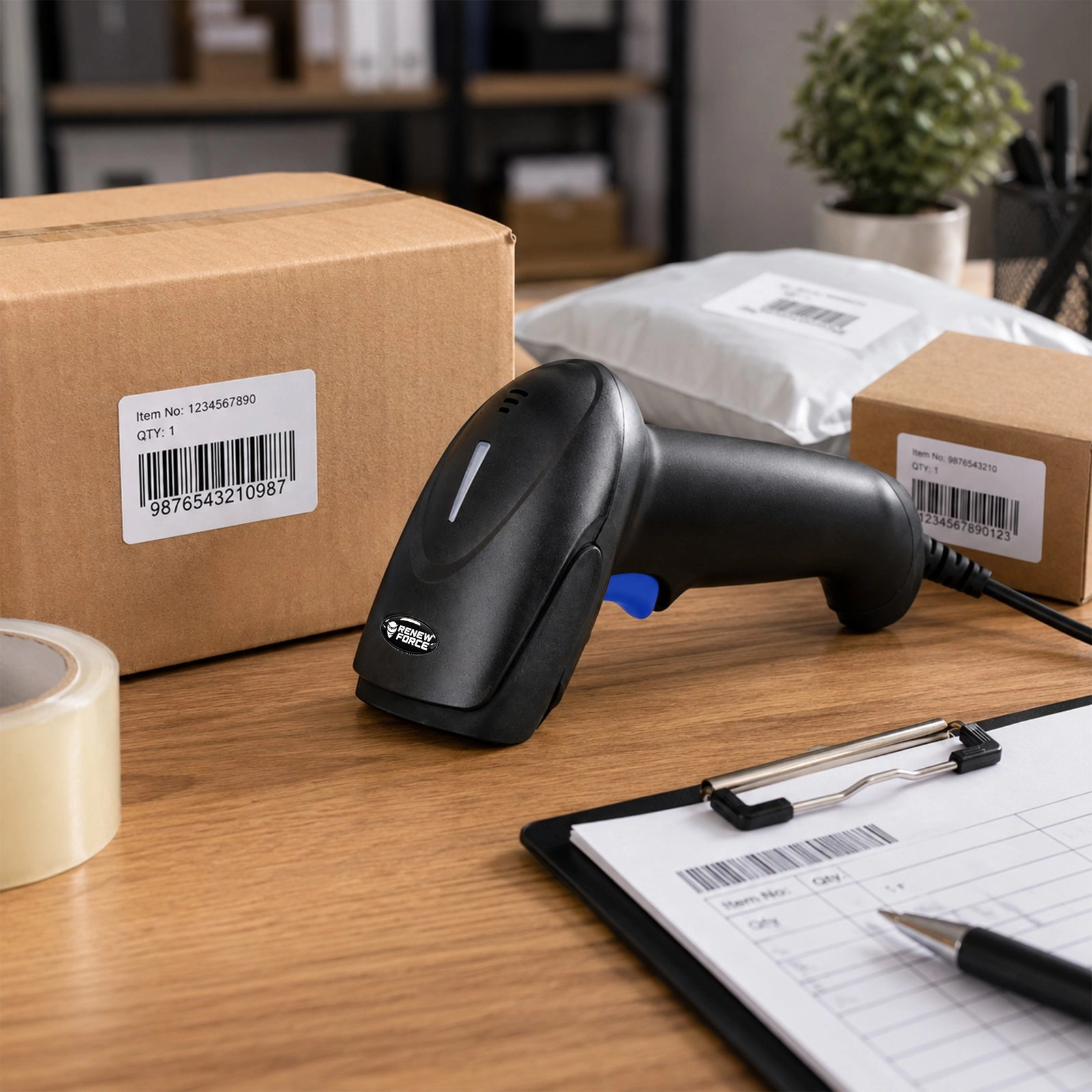

The Renew Force wired barcode reader is designed for reliable scanning of one-dimensional codes during sales, order picking, parcel packing, and inventory management. Power supplied directly through the USB port eliminates the need for batteries and regular recharging, which is especially convenient at fixed checkout counters and warehouse and packing workstations.

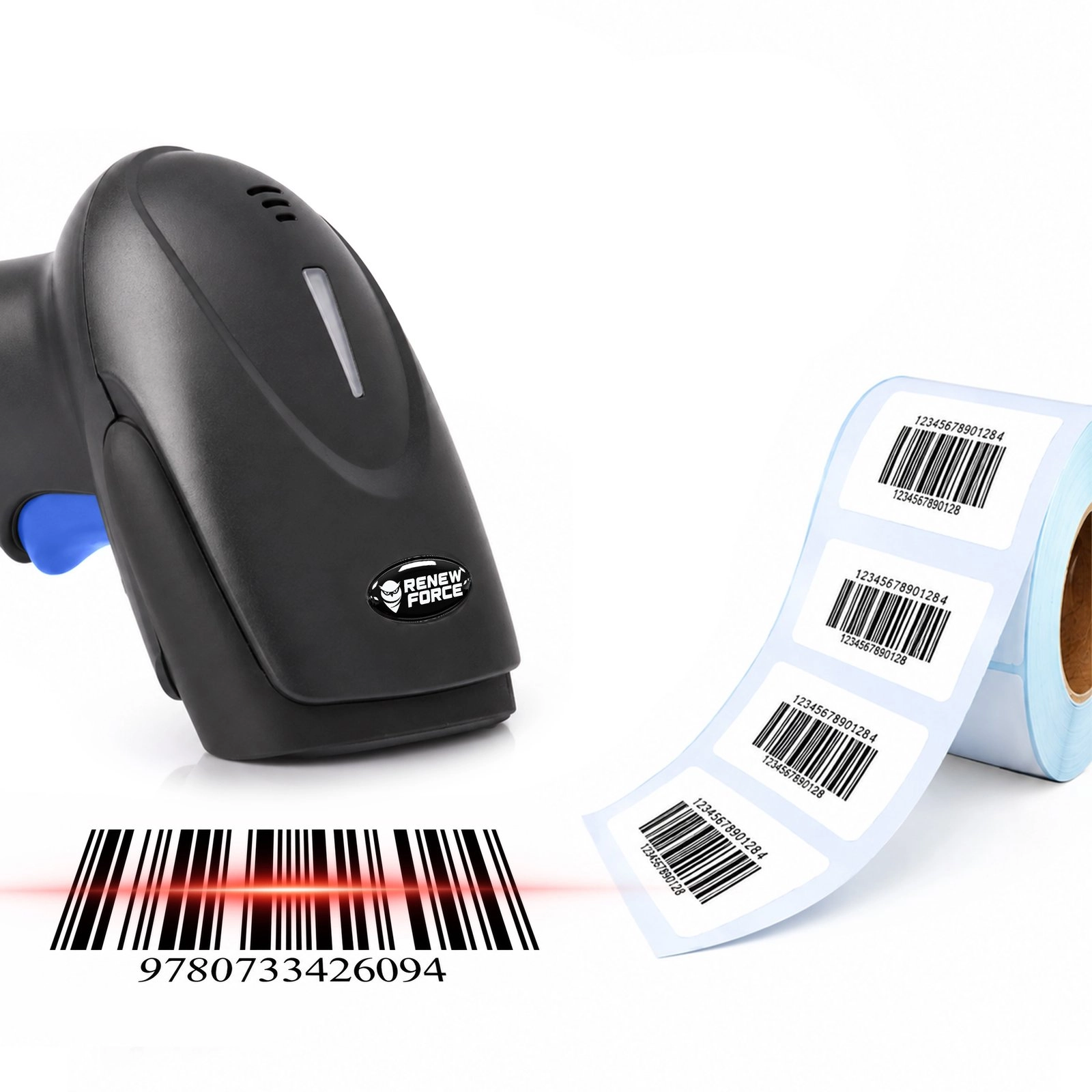

Linear CCD technology with red LED light at a wavelength of 610–640 nm ensures fast reading of compatible 1D codes. The reader can be used in manual trigger mode or continuous automatic mode. Successful scanning is confirmed by an audible signal and LED indicator.
Main advantages:
- scanning speed of at least 300 scans per second,
- support for popular 1D standards, including UPC/EAN, Code 128, Code 39, and GS1 DataBar,
- USB and USB-COM interfaces for easy connection,
- compatibility with Windows, macOS, Linux, and Android,
- resistance to drops from heights of up to 1.8 m onto concrete and IP54 protection,
- operation under ambient lighting of up to 100,000 lx,
- quick setup by scanning configuration codes.
The package includes the 1D Renew Force wired barcode scanner, a QR user guide, and a protective cover.
Specifications
- Product type
- 1D wired barcode scanner
- Scanning technology
- Linear CCD
- Supported codes
- 1D
- Supported standards
- UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, UCC, Code 128, Code 39, Code 39 Full ASCII, Code 32, Interleaved 2 of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar, and other compatible 1D standards
- Light source
- Red LEDs, 610–640 nm
- Scanning speed
- At least 300 scans/s
- Minimum code element width
- Approximately 0.10 mm
- Minimum code contrast
- 20%
- Horizontal angle
- ±45°
- Roll angle
- ±60°
- Vertical angle
- ±60°
- Scan indication
- Audible signal and LED indicator
- Operating modes
- Manual, continuous automatic
- Interfaces
- USB, USB-COM
- Power supply voltage
- DC 5 V ±10%
- Standby power consumption
- Approximately 30 mA
- Operating power consumption
- Approximately 80 mA
- Drop resistance
- Up to 1.8 m onto a concrete surface
- Protection rating
- IP54
- Operating temperature
- -20 °C to +50 °C
- Storage temperature
- -40 °C to +60 °C
- Humidity
- 5–95% RH
- Ambient light
- 0–100,000 lx
- Housing material
- ABS + PC
- Button life
- More than 30,000,000 presses
- Configuration
- By scanning configuration codes
- Compatible systems
- Windows, macOS, Linux, Android, and other compatible systems
- Keyboard support
- Multiple languages and layouts
- Dimensions
- Approximately 150 × 70 × 95 mm
