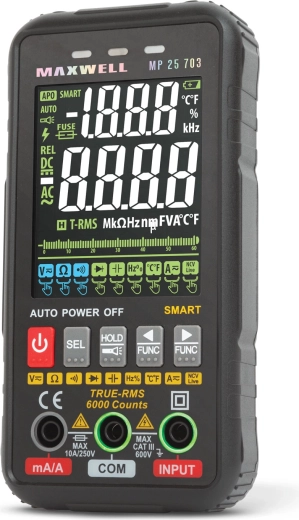

The Maxwell automatic digital multimeter with a color 3" LCD display provides clear measurement of electrical quantities at home, in the workshop, and during service work. Automatic measurement function recognition, non-contact NCV voltage detection, a work light, and practical accessories ensure convenient and safe use.
Clear color display
The large 3" LCD display with a 3 5/6-digit resolution (9999) shows measured values clearly and legibly, even when working in daylight.
Automatic measurement recognition
The fully automatic mode recognizes the required measurement function. Manual selection is also available, including non-contact NCV voltage detection, capacitance, and frequency measurement.
Complete accessories for work
The multimeter comes with test leads, a temperature probe, a protective case, and four AAA batteries. The integrated work light makes working in poorly lit areas easier.
The Maxwell multimeter is a compact measuring instrument with a large color display on which measured values are easy to read, even in sunlight. In automatic mode, the device recognizes the required measurement function itself. More experienced users can also select functions manually; LED lighting around the terminals helps with correctly connecting the test leads.

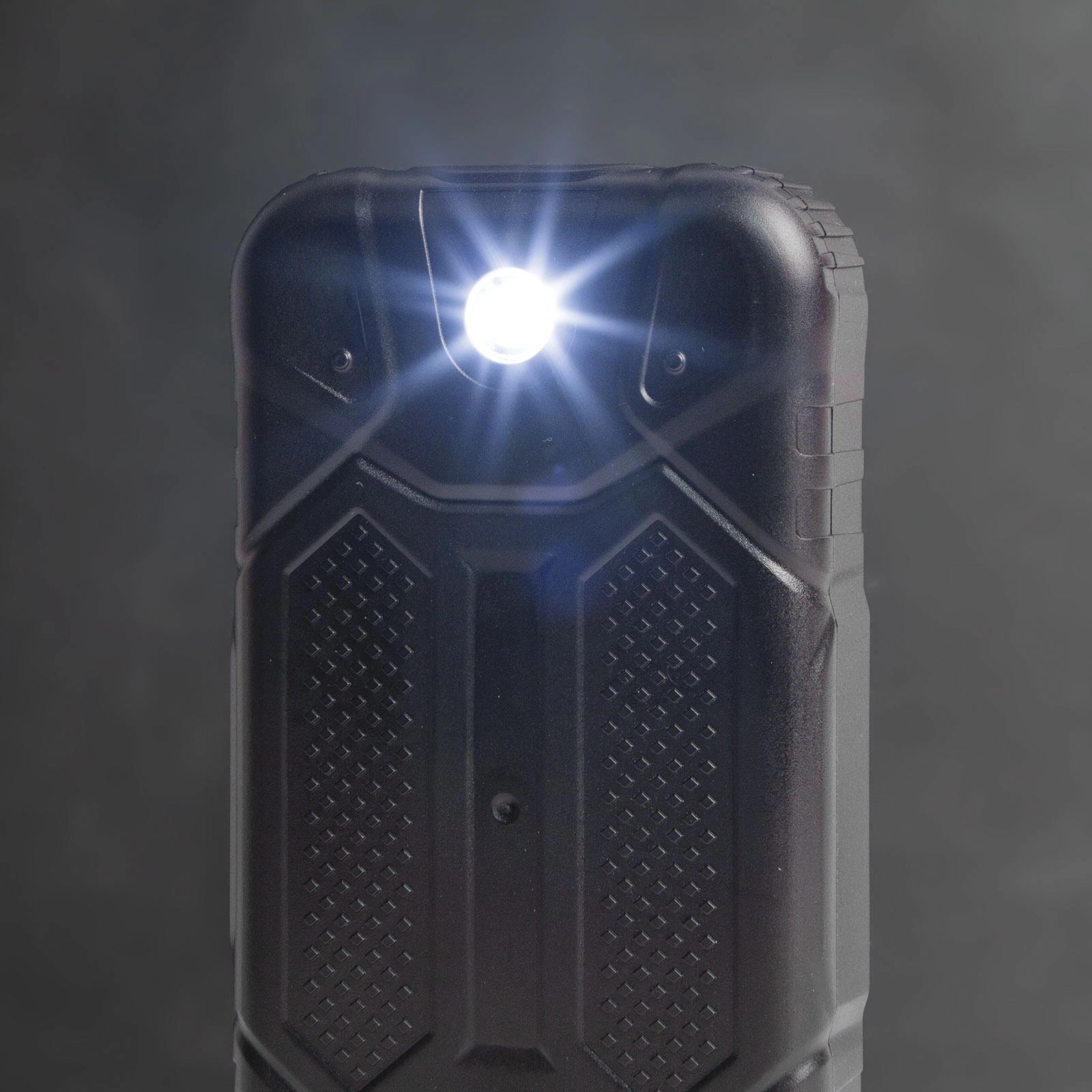

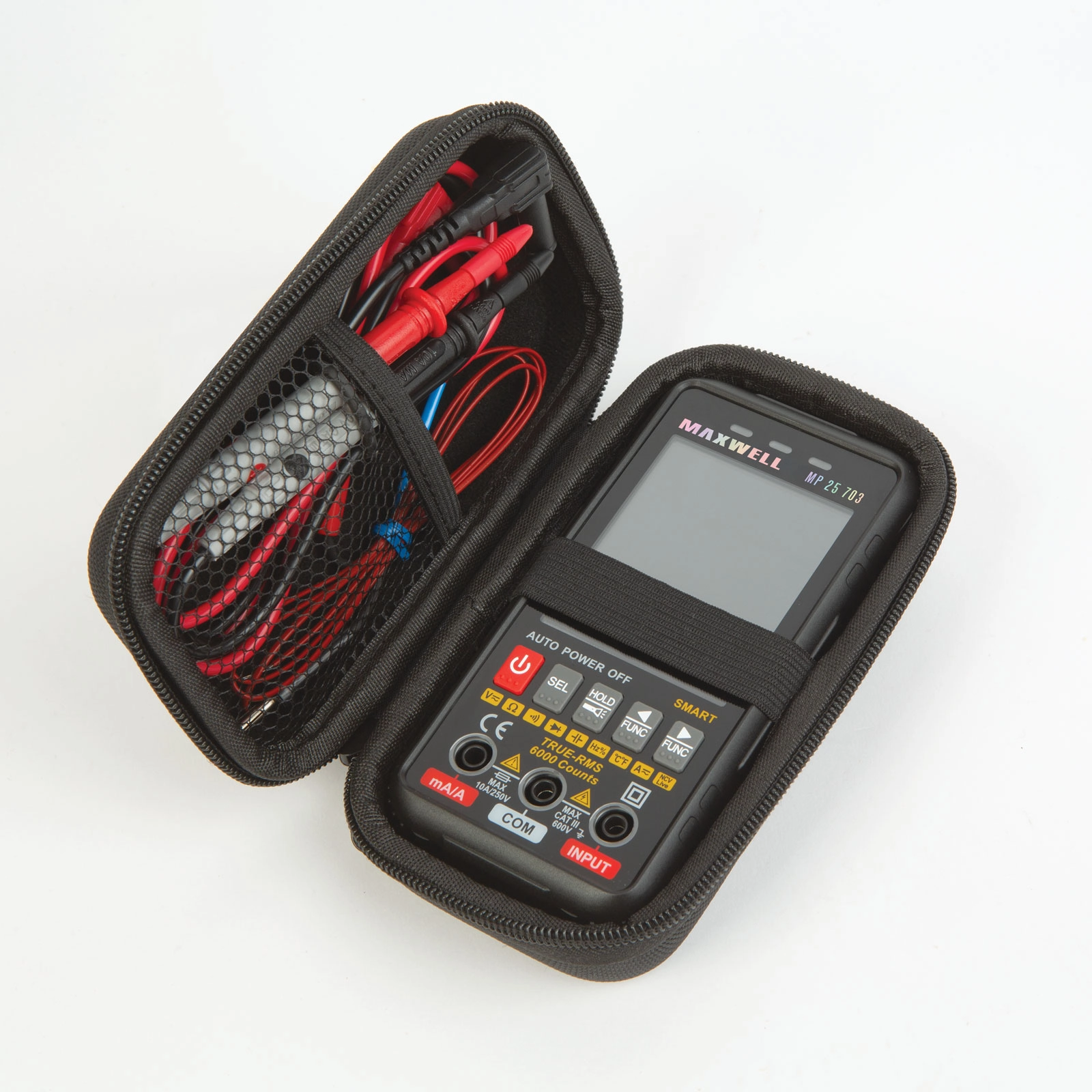

Using the sensor on the rear, you can perform non-contact NCV voltage detection without interrupting the conductors. The integrated work light illuminates the work area, while the ergonomic design makes everyday handling easier. The sturdy case protects the multimeter during transport.
Main advantages:
- automatic and manual measurement function setting,
- measurement of voltage, current, resistance, frequency, capacitance, and temperature,
- continuity and diode testing,
- Data Hold function, audible signal, and automatic shutdown,
- the package includes test leads, a temperature probe, a case, and 4 AAA batteries.
Specifications
- Display
- 3 5/6 digits (9999), 3" LCD display
- Power supply
- 4 × 1.5 V AAA batteries (included)
- Operating temperature
- 0 to +40 °C
- Operating humidity
- 75%
- Direct current voltage (DC V)
- 0.1 mV to 600 V
- Direct current (DC A)
- 0.1 mA to 10 A
- Alternating current voltage (AC V)
- 0.1 mV to 600 V
- Alternating current (AC A)
- 0.1 mA to 10 A
- Duty cycle
- 1 to 99%
- Resistance
- 0.1 Ω to 60 MΩ
- Frequency
- 0.001 Hz to 10 MHz
- Capacitance
- 1 pF to 60 mF
- Temperature measurement
- -40 to +1000 °C
- Functions
- NCV, continuity test, diode test, work light, audible signal, LED indicator, Data Hold, automatic shutdown
- Accessories
- Test leads, temperature probe, case
- Dimensions
- 144 × 73 × 27 mm
- Color
- Black
- Weight including batteries
- Approximately 235 g
