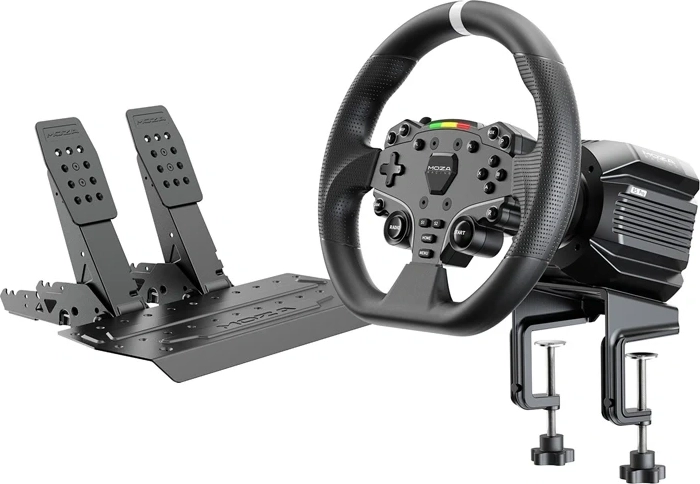

Enter the world of sim racing with the MOZA Racing R5 Pro kit, which combines a Direct Drive base with 6 Nm torque, an ES Lite steering wheel (280 mm), and durable SRP2 Lite pedals. Thanks to a 21-bit magnetic encoder, a 600 MHz processor, and NexGen Force Feedback 4.0 technology, you get precise control, natural feedback, and an immersive driving experience from the very first lap – with the option of further expansion in the future.

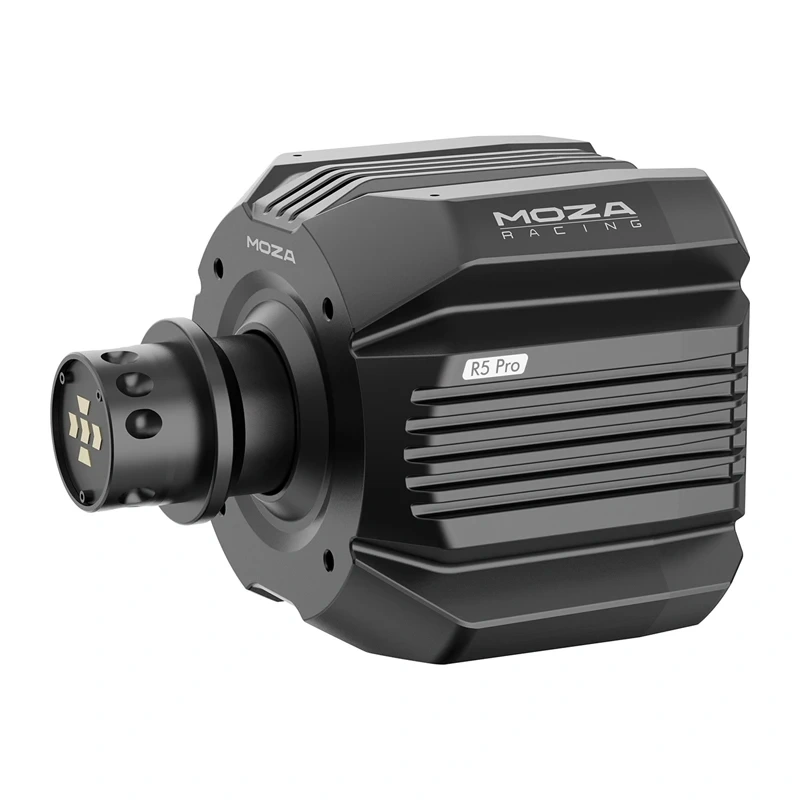

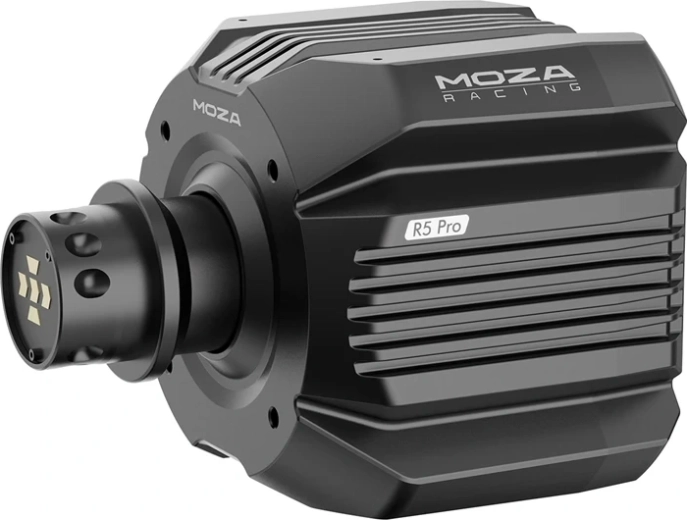

R5 Pro Direct Drive base with 6 Nm torque
Direct Drive technology and the NexGen Force Feedback 4.0 algorithm transmit detailed information about surface, traction, and vehicle behavior. The base offers 6 Nm, a 21-bit encoder, and high performance stability thanks to intelligent temperature control.

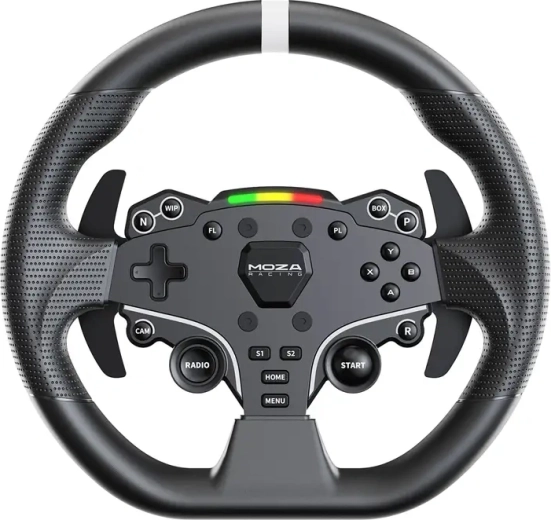

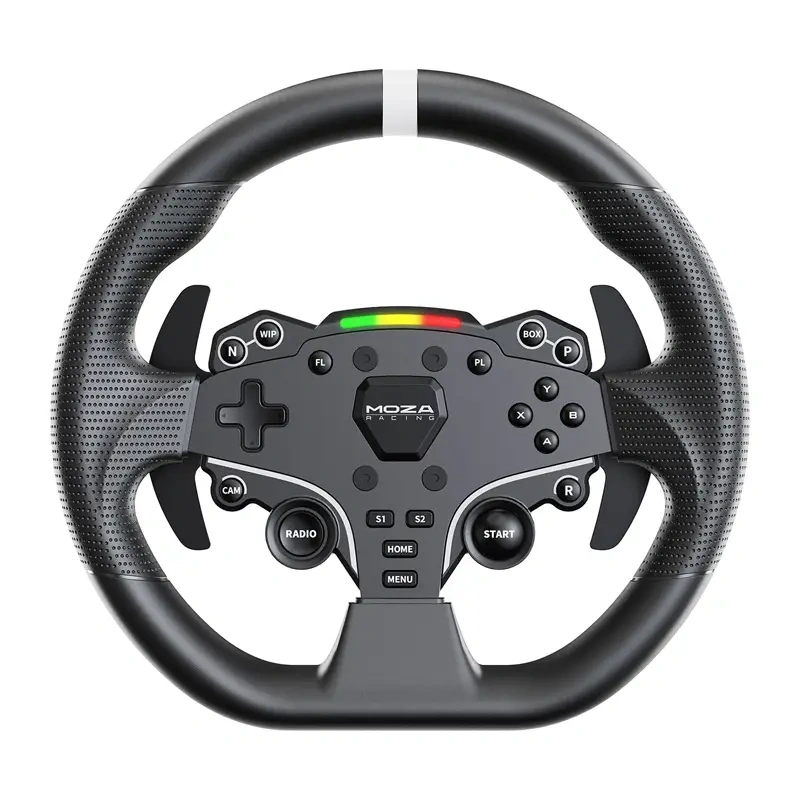

ES Lite 280 mm steering wheel: more controls, quick swap
The D-profile wheel (280 mm) features anti-slip TPE grips, 22 programmable buttons, 10 RGB LEDs for the rev indicator, and an aluminum Quick Release for fast installation or replacement.

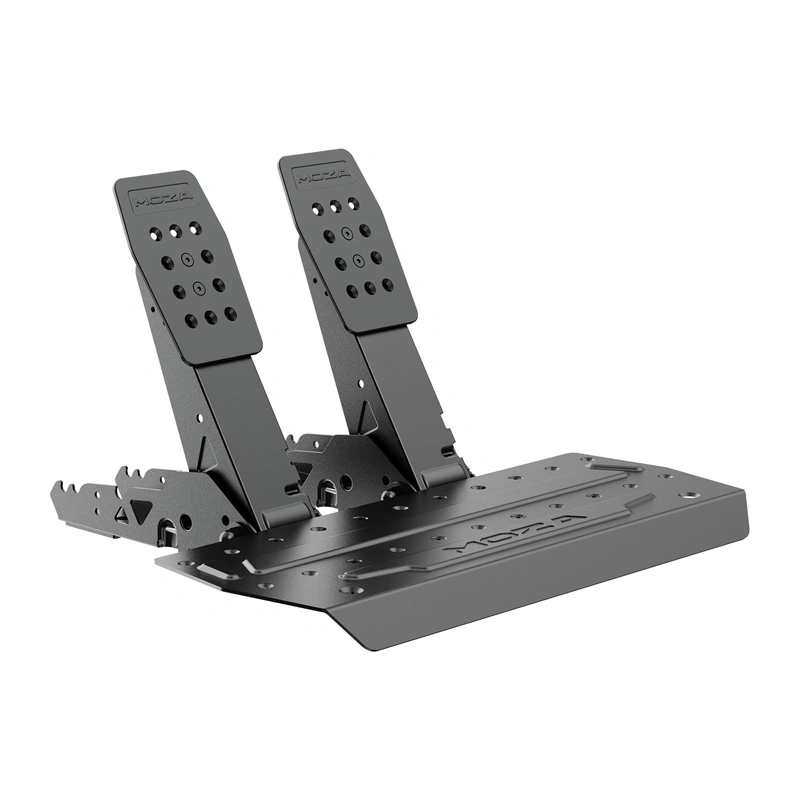

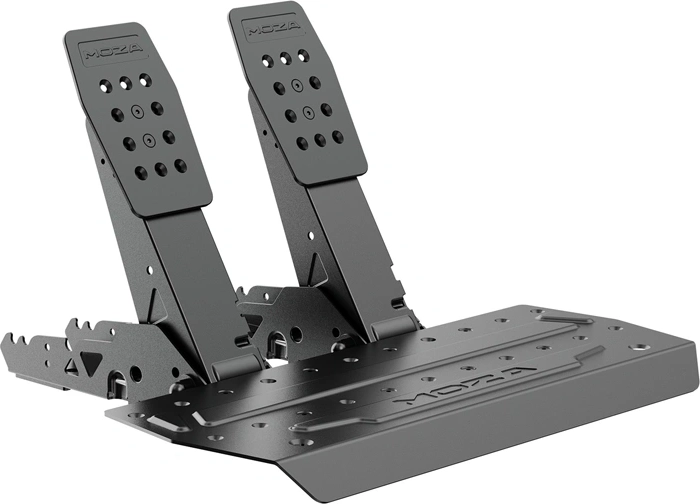

SRP2 Lite pedals: steel construction and Hall sensors
The pedals use contactless Hall sensors for precise and repeatable input. The robust steel design is built for long-term use, and the pedals can be adjusted for spacing (±15 mm) and height (36 mm).
MOZA Racing R5 Pro is a complete starter sim racing kit for realistic racing at home. At the heart of the setup is the R5 Pro Direct Drive base with constant 6 Nm torque, which transmits information about traction, bumps, and vehicle behavior with high fidelity. Fast response is handled by a powerful 600 MHz processor and a temperature-control system for stable performance even during long sessions.
It also includes the ES Lite D-profile steering wheel with a 280 mm diameter, comfortable anti-slip grips, and extensive controls. You get 22 programmable buttons, an RGB LED rev indicator, and an aluminum Quick Release for quick wheel changes. SRP2 Lite pedals use contactless Hall sensors and a solid steel construction, delivering accuracy and long service life.
Main advantages of the kit:
- Direct Drive (6 Nm) for natural, detailed Force Feedback response
- 21-bit encoder resolution (more than 2 million points) for exceptional precision
- 280 mm (D-shape) steering wheel with 22 buttons and LED RPM indication
- Hall-sensor pedals with adjustable spacing and height
- MOZA Pit House for detailed configuration of Force Feedback, pedal curves, dead zones, and telemetry
- Universal mounting: to a desk (mount included) and to compatible cockpits (bottom/front)
Specifications
- Manufacturer
- MOZA Racing
- Model
- R5 Pro
- Kit weight
- Approximately 7 kg
- Feedback system
- Direct Drive
- Maximum steering angle
- 90°–2700°
- Base housing material
- Aluminum alloy
- Color
- Black
- Maximum torque
- 6 Nm
- Maximum power
- 100 W
- Input voltage
- 110–220 V AC → 12 V DC
- Base weight
- 2.9 kg
- Encoder resolution
- 21 bits
- USB refresh rate
- 1000 Hz
- App support
- Yes
- Quick release
- Yes
- Connection ports
- Power, USB, pedal, dashboard, shifter, handbrake, emergency stop
- Mounting options
- Bottom, front, desk
- Desk stand/mount
- Included in the package
- Online software updates
- Supported
- Steering wheel – grip material
- TPE
- Steering wheel – frame material
- Aluminum alloy
- Steering wheel – paddle shifter material
- Aluminum alloy
- Steering wheel – diameter
- 280 mm
- Steering wheel – number of buttons
- 22
- Steering wheel – RPM indicator
- 10 top RGB LEDs
- Steering wheel – intelligent telemetry
- Yes
- Steering wheel – RPM LED settings in MOZA Pit House
- Yes
- Steering wheel – mounting system
- Aluminum Quick Release system
- Pedals – surface material
- High-strength steel
- Pedals – base material
- High-strength steel
- Pedals – sensors
- Contactless Hall sensors
- Pedals – spacing adjustment
- 15 mm
- Pedals – height adjustment
- 36 mm
- Pedals – curvature adjustment
- Yes
- Pedals – real-time performance preview
- Yes
- Package contents
- MOZA R5 Pro wheel base x1; MOZA ES Lite steering wheel x1; MOZA SR-P Lite2 pedal set x1; Desk mount x1; Power supply x1; Cables x1; Tool set x1; User manual x1
