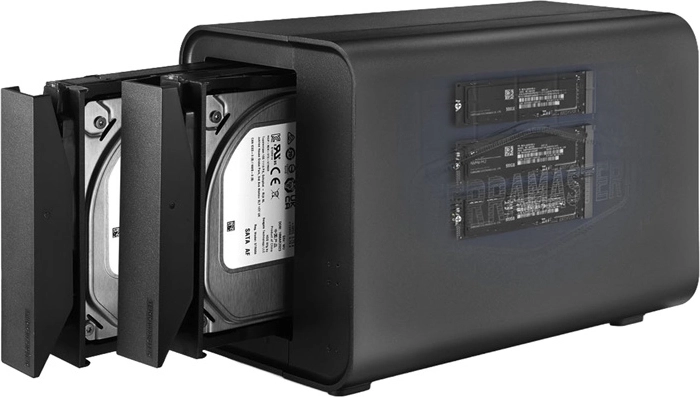

TerraMaster D5 Hybrid is a compact external DAS enclosure with 5 bays, smartly combining 2× SATA (3.5"/2.5") and 3× M.2 2280 NVMe for both high capacity and fast data workflows. With USB 3.2 Gen 2 (10 Gb/s) via USB‑C, quiet cooling, and hardware RAID modes, it’s ideal for backup, video editing, and archiving large files across Windows, macOS, and Linux.
The TerraMaster D5 Hybrid enclosure is designed for users who want to combine large HDD capacity with NVMe SSD speed in a single device. The two SATA drives serve as reliable storage for archives and backups, while the three M.2 NVMe slots are ideal for projects, databases, and media where instant access to data is required.
The modern USB 3.2 Gen 2 Type‑C interface provides up to 10 Gb/s bandwidth, ensuring fast copying and smooth work with large files. The enclosure supports compatibility with common USB and Thunderbolt standards, so you can easily connect it to both a laptop and a workstation.
Key benefits:
- Hybrid storage: 2× SATA + 3× M.2 2280 NVMe in one chassis
- Hardware RAID for SATA bays: RAID 0 / RAID 1 / JBOD / Single Disk
- High speed via USB‑C (USB 3.2 Gen 2, 10 Gb/s)
- Quiet operation and efficient cooling thanks to an intelligent 80 mm fan
- Easy installation of tool‑less SATA drives and convenient access to M.2 slots
- TPC Backupper software for automatic backups on Windows
Specifications
- Manufacturer
- TerraMaster
- Model
- D5 Hybrid
- Device type
- External DAS enclosure
- Number of bays
- 5 (2 × SATA + 3 × M.2 NVMe)
- Supported SATA drives
- 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- Supported M.2 drives
- M.2 2280 NVMe SSD (M-Key / B+M Key)
- Maximum SATA drive capacity
- up to 44 TB (2 × 22 TB)
- Maximum NVMe drive capacity
- up to 24 TB (3 × 8 TB)
- Maximum total capacity
- up to 68 TB
- Host interface
- USB 3.2 Gen 2 Type-C
- Maximum interface bandwidth
- 10 Gb/s
- Supported RAID modes (SATA)
- RAID 0, RAID 1, JBOD, Single Disk
- Noise level
- 19 dB(A)
- File systems
- NTFS, APFS, Mac OS, FAT32, exFAT, EXT4
- Power
- DC IN 12 V
- Power consumption
- 40 W
- Dimensions (W × H × D)
- 222 × 119 × 154 mm
- Net weight
- 1.3 kg
