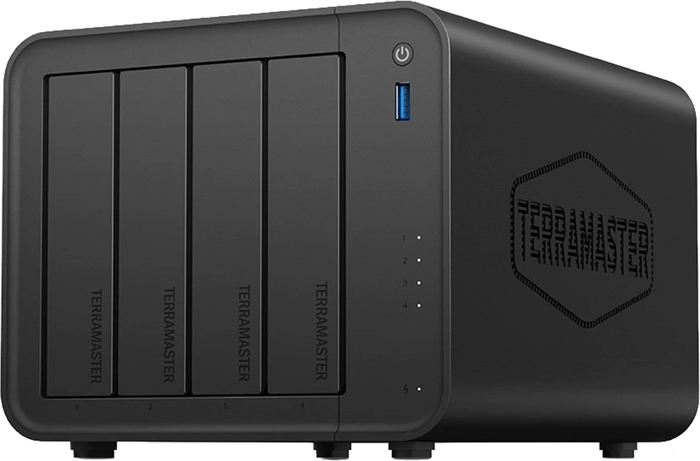

TerraMaster F4-425 is a powerful 4-bay NAS server for home and small offices, offering fast sharing and data protection thanks to the Intel N5095 processor, expandability up to 16 GB RAM, and a 2.5GbE network port. It supports hot-swap, up to 120 TB capacity, modern file systems Btrfs/EXT4, and with TOS 6 adds convenient backup, synchronization, and remote access.
TerraMaster F4-425 is a reliable network attached storage (NAS) device that brings your photos, videos, documents, and backups together in one secure place. The quad-core Intel N5095 ensures smooth multitasking (file sharing, synchronization, backups, and apps), while 2.5GbE significantly speeds up transfers compared to standard gigabit networking.
The TOS 6 operating system provides tools for data management, user accounts with permissions, and security features (including encryption, firewall, and protection against unauthorized login attempts). For photo management, Terra Photos is available with local analysis and organization – without the need to send content to the cloud.
Key benefits and features:
- 4 drive bays for 3.5"/2.5" SATA HDDs and 2.5" SATA SSDs, capacity up to 120 TB
- Hot Swap for easy drive replacement without shutdown
- Support for RAID 0/1/5/6/10 modes + JBOD/Single
- Automatic synchronization (TerraSync, TNAS PC Client) and file versioning
- Media center with hardware transcoding up to 4K 60 fps (H.264/H.265 etc.) and compatibility with Plex/Emby/Jellyfin
- Remote access via the TNAS service and management via TNAS Mobile
Package contents:
- TerraMaster F4-425 NAS server
- Power adapter
- Power cable
- RJ-45 network cable
- Quick start guide
- Warranty information
- Mounting screw set
Specifications
- Manufacturer
- TerraMaster
- Model
- F4-425
- Device type
- NAS server
- Number of drive bays
- 4
- Processor
- Intel N5095, 4 cores, 2.0 GHz (up to 2.9 GHz Turbo)
- Architecture
- x86 64-bit
- Memory (RAM)
- 4 GB DDR4 non-ECC SODIMM
- Maximum supported RAM
- 16 GB
- Supported drives
- 3.5" SATA HDD; 2.5" SATA HDD; 2.5" SATA SSD
- Maximum storage capacity
- 120 TB (4 × 30 TB)
- Hot Swap
- Yes
- Network port
- 1 × 2.5GbE RJ-45
- USB ports
- 2 × USB 3.2 Gen 2 (10 Gb/s), 1 × USB 3.0 (5 Gb/s)
- HDMI
- 1 × HDMI
- File system
- Btrfs, EXT4
- Supported RAID configurations
- RAID, JBOD, Single, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- Hardware video transcoding
- H.264, H.265, MPEG-4, VC-1 up to 4K 60 fps
- Noise level
- 21 dB(A) in disk standby mode
- Power consumption
- 33 W during operation, 13 W in sleep mode
- Dimensions
- 222 × 179 × 154 mm
- Net weight
- 2.1 kg
- Operating system
- TOS 6
