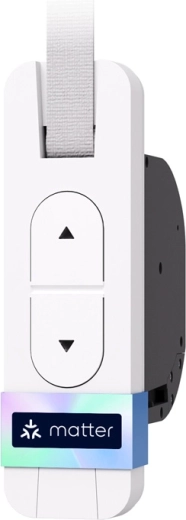

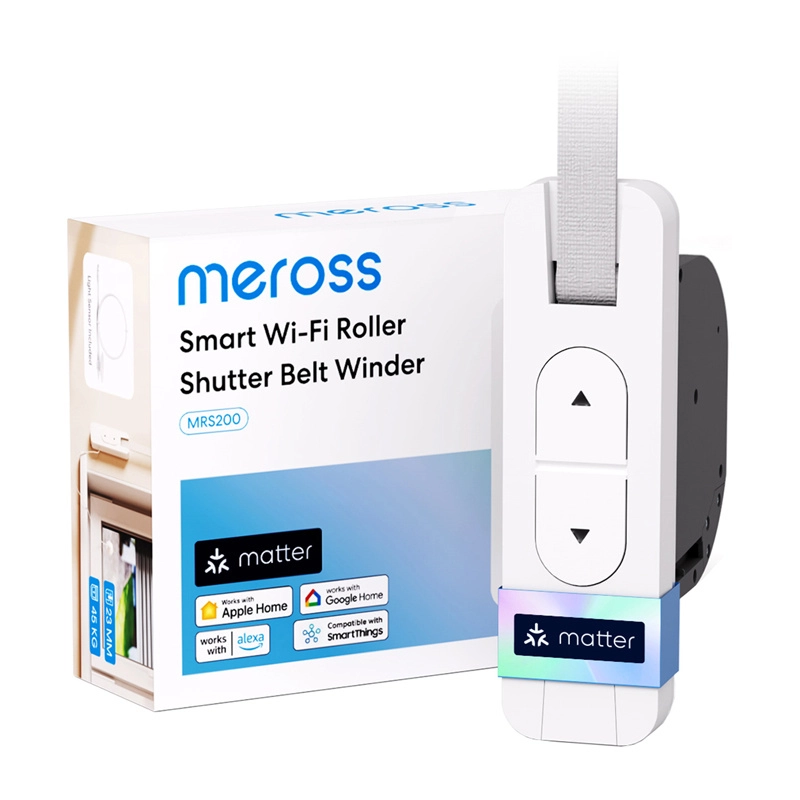

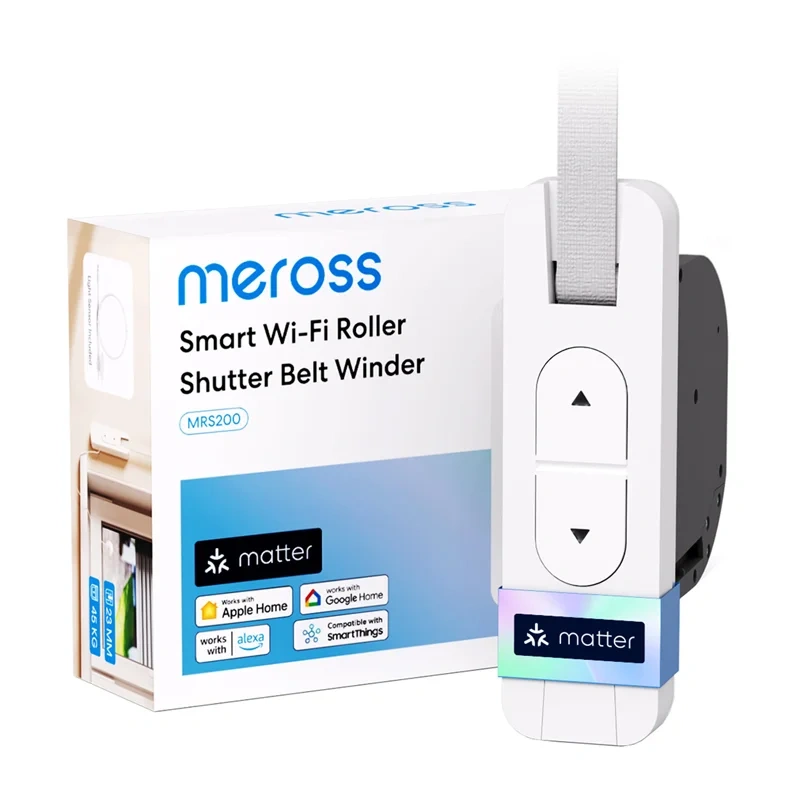

Meross Smart Wi‑Fi Roller Shutter Belt Winder with Matter

197,00 €
Free Shipping
External warehouse · At your place 06 / 25
Product code: 671409-1
Free shipping on orders over €149.00
Hassle-free returns within 30 days
Fast delivery
Meross MRS200MA-EU is a smart roller shutter drive with Wi‑Fi and support for the Matter standard for easy control in Apple Home, Google Home, Amazon Alexa, and Samsung SmartThings. It offers automatic end‑position calibration, the ability to create scenes, and thanks to a motor with a load capacity of up to 45 kg, it reliably handles most common shutters—conveniently from the app and by voice.

Want to keep light and privacy under control with a single tap? The Meross smart roller shutter belt winder with Matter brings convenient shutter control over your home Wi‑Fi and fits perfectly into a cross‑platform smart home. Thanks to automatic calibration, it precisely sets the upper and lower end positions, so the shutter stops exactly where you need it.

For everyday comfort, it offers features that adapt to your routine and the weather. The external light sensor can automatically raise/lower the shutters based on lighting conditions, and the ventilation position lets you stop at any height for airflow while maintaining privacy. You can also create scenes and automations—for example, opening the shutters when smoke is detected by another device in your smart home system.

Safety is also emphasized: overload protection and obstacle detection are available, automatically stopping the motor when resistance is detected. In case of a power outage, you can use manual operation thanks to the motor disengagement mechanism.

Main benefits:

  • Matter – broad compatibility across smart home platforms
  • 2.4 GHz Wi‑Fi – direct connection to your home network
  • Automatic calibration of end positions
  • Light sensor for automation based on ambient light
  • Ventilation position – stop at your preferred height
  • Overload protection and obstacle detection
  • Support for scenes and integration with other devices

Installation and compatibility requirements:

  • Supports belts with a length of 3 to 6 m (depending on thickness)
  • Compatibility: aluminum shutters up to 3 m², plastic up to 6 m²
  • Mounting hole spacing: 165 mm or 185 mm
  • Installation space: approx. 136 × 131.5 × 61 mm

Package contents:

  • Smart Wi‑Fi roller shutter belt winder
  • Light sensor (1.5 m)
  • Power cable (2 m)
  • Disengagement bracket (in the cover)
  • Mounting screws (5×)
  • Shutter box cover
  • Mounting hole cover
  • Power cable cover
  • Corner bracket

Specifications

Manufacturer
Meross
Model
MRS200MA-EU
Input voltage
230 V ~ 50/60 Hz
Rated power
70 W
Standby power consumption
< 0.6 W
Torque
10 Nm
Maximum speed
36 rpm
Intermittent duty (KB)
4 minutes (maximum continuous operating time)
Noise level
≤ 70 dB(A)
Maximum driving force
45 kg
Protection class
II
Ingress protection
IP20 (for use in dry rooms)
Power cable length
2 m
Light sensor cable length
1.5 m
Mounting type
Flush-mounted installation
Mounting hole spacing
165 / 185 mm
Dimensions
61 × 164 × 210 mm (without power cable)
Antenna
1 internal
Wireless standards
IEEE 802.11 b/g/n, 2.4 GHz, 1T1R
Network security
WEP 64/128-bit, WPA-PSK / WPA2-PSK (no support for Enterprise networks)
Certifications
CE, RoHS, WEEE
System requirements
iOS 16.1 or later, Android 10.0 or later, existing Wi‑Fi network
Operating temperature
0 °C to 40 °C
Storage temperature
-40 °C to 70 °C
Operating humidity
10%–90% (non-condensing)
Storage humidity
5%–90% (non-condensing)
