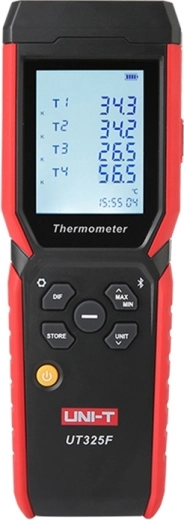

Uni-T UT325F is an accurate four-channel thermometer for thermocouple measurements, supporting 7 thermocouple types (K, J, T, E, R, S, N). It offers a fast response of approx. 500 ms, MIN/MAX/AVG functions, HOLD, temperature difference measurement, and logging up to 72,000 readings with data transfer via Bluetooth.
The Uni-T UT325F four-channel thermometer is an ideal choice for laboratories, electronics service, and industrial operations where you need to reliably monitor multiple temperature points simultaneously. Thanks to support for a wide range of thermocouples, you can easily adapt the measurement to a specific application and obtain accurate results even in demanding environments.
Practical functions make everyday work and evaluation of measured values easier:
- 4 measurement channels for simultaneous monitoring of multiple locations
- MIN / MAX / AVG for quick analysis of temperature trends
- HOLD to freeze values on the display
- Temperature difference measurement for instant deviation checks
- Data logging up to 72,000 readings for long-term monitoring
- Units °C / °F / K as needed
A clear backlit display increases comfort when working in poor lighting conditions. Rugged construction with drop resistance up to 1 m and power from three AAA batteries with a runtime of more than 30 hours make the instrument a practical helper even in the field.
Specifications
- Manufacturer
- Uni-T
- Model
- UT325F
- Number of channels
- 4
- Supported thermocouple types
- K, J, T, E, R, S, N
- Measurement range
- Depends on thermocouple type (up to approx. 1767 °C for R/S types)
- Resolution
- 0.1 °C (<1000), 1 °C (≥1000)
- Accuracy
- ±(0.2% + 0.5 °C)
- Repeatability
- ±0.1% + 0.3 °C
- Response time
- Approx. 500 ms
- Measurement modes
- MIN / MAX / AVG
- HOLD function
- Yes
- Temperature difference measurement
- Yes
- Data logging
- Up to 72,000 readings
- Connectivity
- Bluetooth
- Units
- °C / °F / K
- Backlight
- Yes
- Drop resistance
- Up to 1 m
- Power supply
- 3 × AAA batteries
- Operating time
- >30 h
- Operating temperature
- -10 °C to 50 °C
- Operating humidity
- ≤90% RH (non-condensing)
- Dimensions
- 178 × 63 × 38 mm
- Certifications
- CE, UKCA
- Package contents
- Uni-T UT325F thermometer; thermocouples × 4; AAA batteries × 3; user manual; safety instructions; manufacturer packaging
