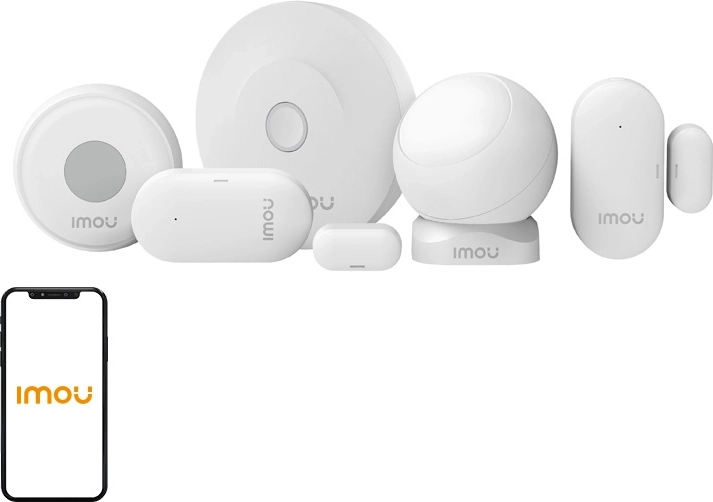

Imou smart alarm system kit with Zigbee gateway and sensors

109,00 €
Shipping from 5,90 €
External warehouse · At your place 06 / 17
Product code: 833485-1
Free shipping on orders over €149.00
Hassle-free returns within 30 days
Fast delivery from 5,90 €
This comprehensive Imou home protection kit combines a Zigbee 3.0 gateway, a motion sensor, 2× door/window sensors, and an emergency (panic) button. In the app, you can conveniently arm/disarm the system remotely, receive instant notifications, and create smart automation scenarios – for greater security at home and in the office.

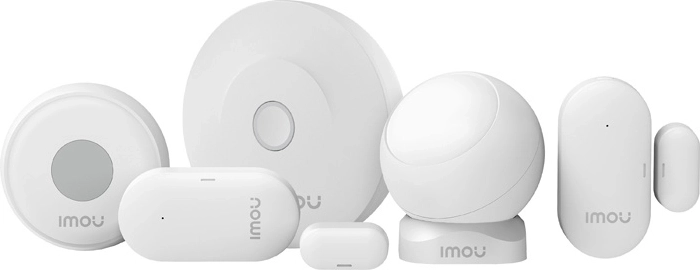

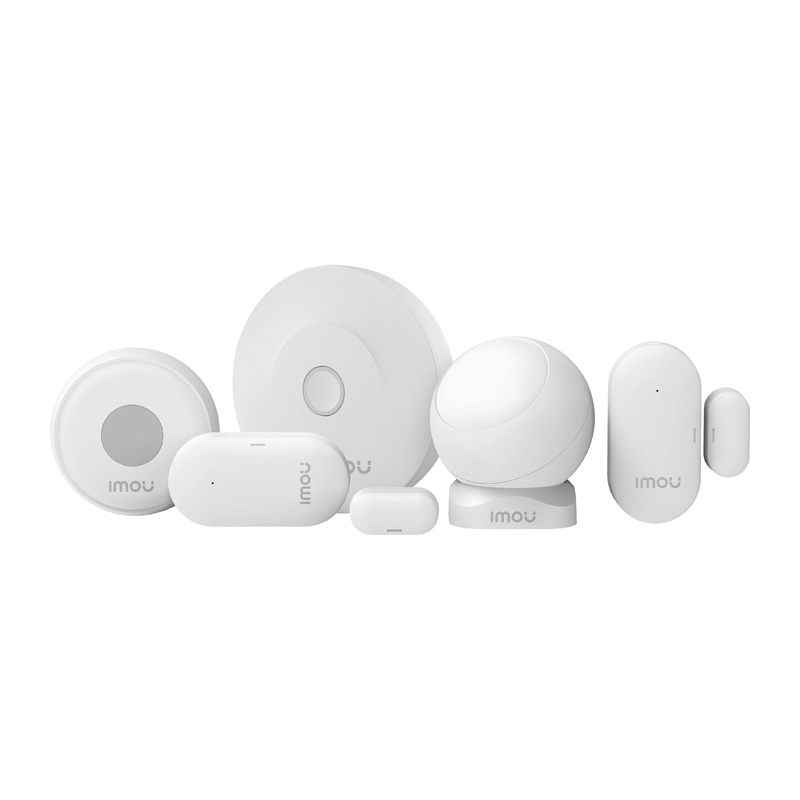

Complete home security kit

Complete home security kit

The package includes a complete system: the ZG2 gateway, the ZP1 motion sensor, 2× ZD1 door/window sensors, and the ZE1 panic button. Ideal for a quick start without having to purchase additional components.

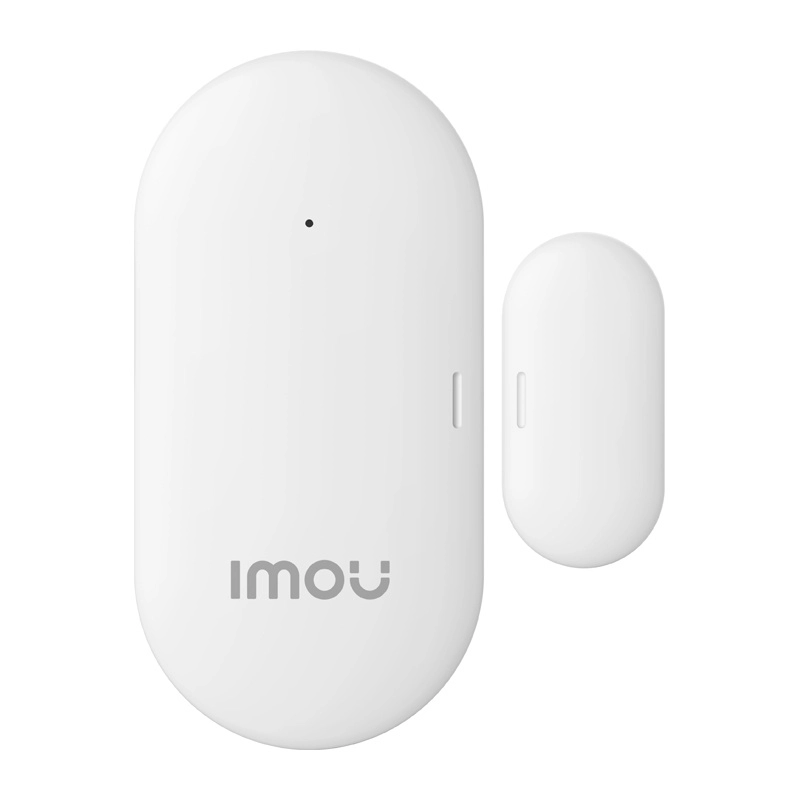

Instant door and window opening detection

Instant door and window opening detection

The ZD1 sensor triggers an event the moment the magnet separates from the sensor. You can use it not only on doors and windows, but also on cabinets or drawers. Thanks to Zigbee communication and low power consumption, it is suitable for long-term operation.

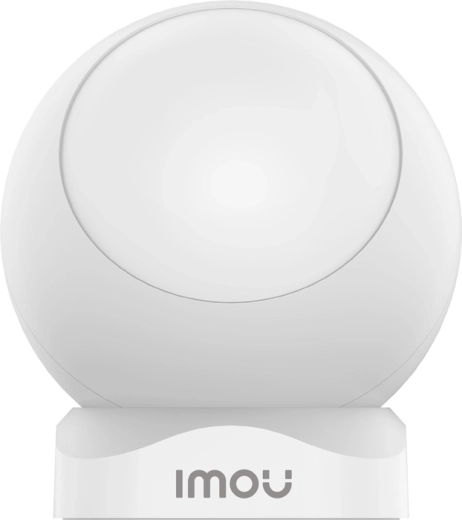

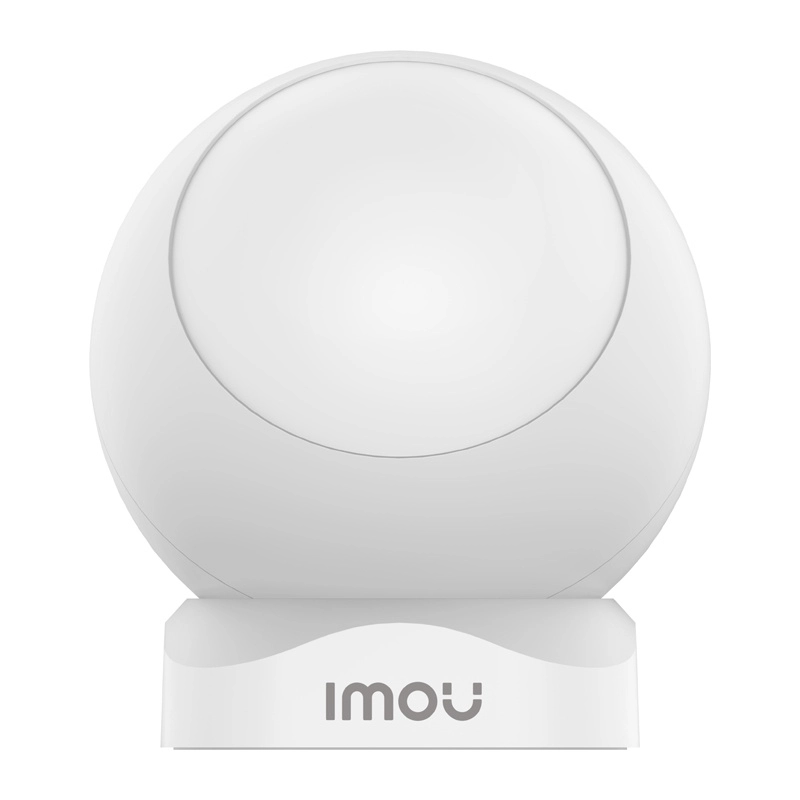

Motion detection even in the dark

Motion detection even in the dark

The ZP1 motion sensor monitors the area using infrared detection with a range of up to 8 m and an angle of 90°. It works even without light thanks to thermal radiation analysis, and in case of an alarm it sends information to the gateway and the app.

The Imou alarm system is built on Zigbee 3.0 wireless technology, thanks to which individual components communicate quickly and reliably. The ZG2 control gateway serves as the center of the entire ecosystem – it connects the sensors, sends information to the cloud and to the mobile app, where you have everything clearly under control.

ZD1 contact sensors monitor the opening/closing of doors, windows, as well as cabinets or drawers. The ZP1 motion sensor detects human presence using infrared radiation even in the dark (thermal emission). The ZE1 emergency button lets you call for help with a single press or trigger a preset scene.

Main benefits of the kit:

  • Communication range up to 200 m (in open space)
  • Long battery life up to 2 years (with approx. 20 activations per day)
  • Real-time notifications in the mobile app
  • Smart scenes and integration with Imou cameras
  • Flexible installation – on the wall or on a table (depending on the device)

Package contents: ZG2 gateway, ZP1 motion sensor, ZD1 door and window sensor (2×), ZE1 panic button, quick start guide.

Specifications

Standard / communication (system)
Zigbee 3.0, management in the Imou mobile app, scene support and integration with Imou cameras
Communication range
Up to 200 m (open space)
Battery life (sensors / button)
Up to 2 years (with approx. 20 activations per day)
Kit contents
ZG2 gateway, ZP1 motion sensor, ZD1 door and window sensor (2×), ZE1 panic button, quick start guide
ZD1 – wireless protocol
Zigbee
ZD1 – transmit power
≤ 10 dBm
ZD1 – operating voltage
3 V DC
ZD1 – low-voltage alarm
2.6 V
ZD1 – standby current
≤ 10 µA
ZD1 – mounting method
Wall mounting
ZD1 – battery life
2 years (20× per day)
ZD1 – transmit frequency
2.4 GHz
ZD1 – communication range
200 m (open space)
ZD1 – operating temperature
-14 °F to 131 °F
ZD1 – operating current
≤ 30 mA
ZP1 – wireless protocol
Zigbee
ZP1 – transmit power
≤ 15 dBm
ZP1 – operating voltage
3 V DC
ZP1 – low-voltage alarm
2.7 V
ZP1 – standby current
≤ 15 µA
ZP1 – detection range
8 m
ZP1 – mounting method
Wall mounting
ZP1 – battery life
2 years (20× per day)
ZP1 – transmit frequency
2.4 GHz
ZP1 – communication range
200 m (in open space)
ZP1 – battery type
CR123V
ZP1 – operating temperature
-14 °F to 131 °F
ZP1 – operating current
≤ 25 mA
ZP1 – detection angle
90°
ZP1 – installation height
2.2 m
ZE1 – wireless protocol
Zigbee
ZE1 – transmit power
≤ 15 dBm
ZE1 – operating voltage
3 V DC
ZE1 – installation
On a table / on a wall
ZE1 – battery life
2 years (20× per day)
ZE1 – transmit frequency
2.4 GHz
ZE1 – communication range
200 m
ZE1 – receive sensitivity
-96 dBm
ZE1 – operating temperature
-10 °C to 55 °C
ZE1 – dimensions
Ø50 × 16 mm
ZG2 – wireless protocol
Wi‑Fi IEEE 802.11 b/g/n (2.4 GHz), Zigbee 3.0
ZG2 – operating voltage
DC 5 V
ZG2 – operating temperature
-10 to 55 °C
ZG2 – operating humidity
0–95% RH, non-condensing
ZG2 – mounting method
On a table and on a wall
ZG2 – dimensions
68 × 68 × 24 mm
