A practical HDMI extender for transmitting video and audio over a CAT6 (or higher) network cable with support for UHD 4K/30 Hz, KVM function (keyboard and mouse), IR control and PoC power over cable for easy installation. It offers ultra-low latency of 10–20 ms and is ideal for conference rooms, industrial control and home theater.

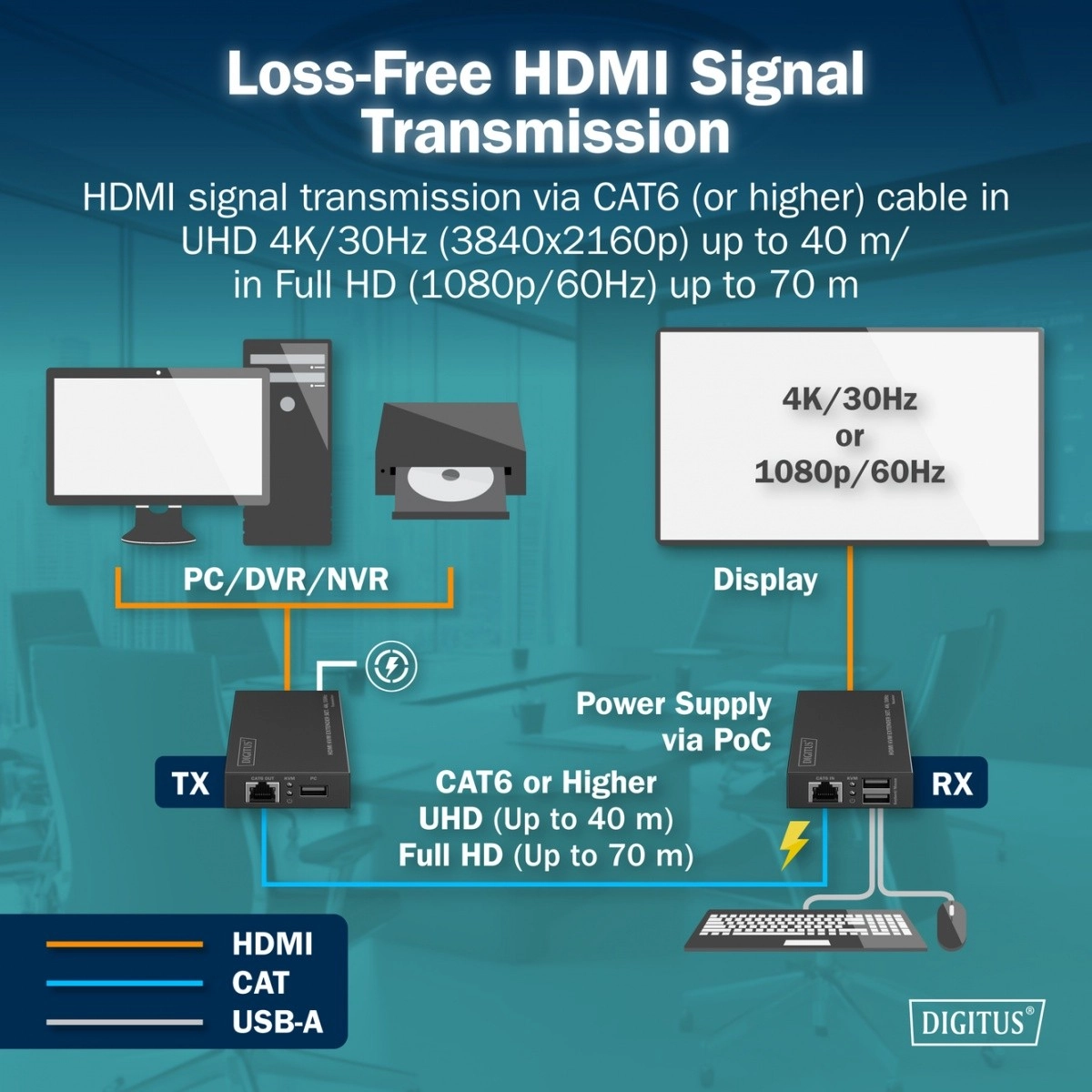

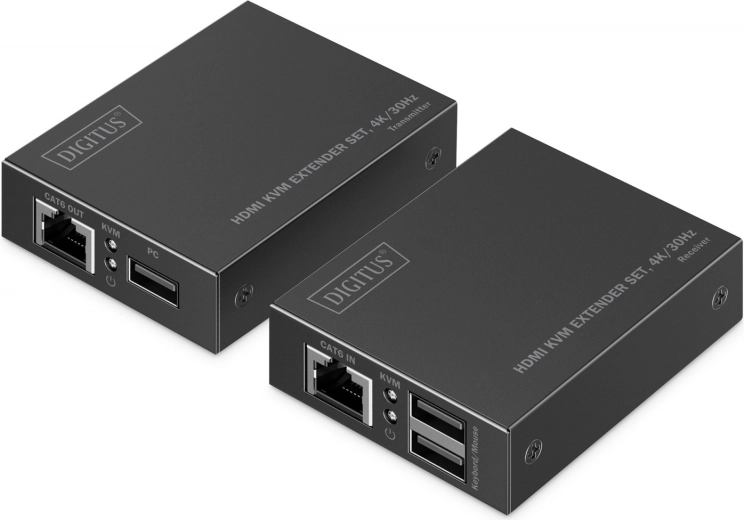

This HDMI extender set (transmitter + receiver) allows lossless transmission of a high-resolution AV signal over standard structured cabling. It supports uncompressed transmission with very smooth playback thanks to ultra-low latency (10–20 ms).
Thanks to the integrated KVM function, you can connect a keyboard and mouse on the receiver side and conveniently control a remote device. Installation is simplified by Plug & Play as well as PoC (Power over Cable), where only the transmitter needs to be powered (the receiver is powered through the cable).
Main benefits:
- UHD 4K/30 Hz (3840 × 2160) transmission up to 40 m over CAT6 (or higher)
- Full HD 1080p/60 Hz transmission up to 70 m over CAT6 (or higher)
- Ultra Low Latency – virtually no delay (10–20 ms)
- KVM USB 1.1 – connect a mouse and keyboard on the receiver side
- IR control for convenient remote operation
- PoC – receiver powered over the cable; power is only required at the transmitter
- Supports point-to-point connection
- Compatible with CAT6 and higher network cables
- Plug & Play without complex configuration

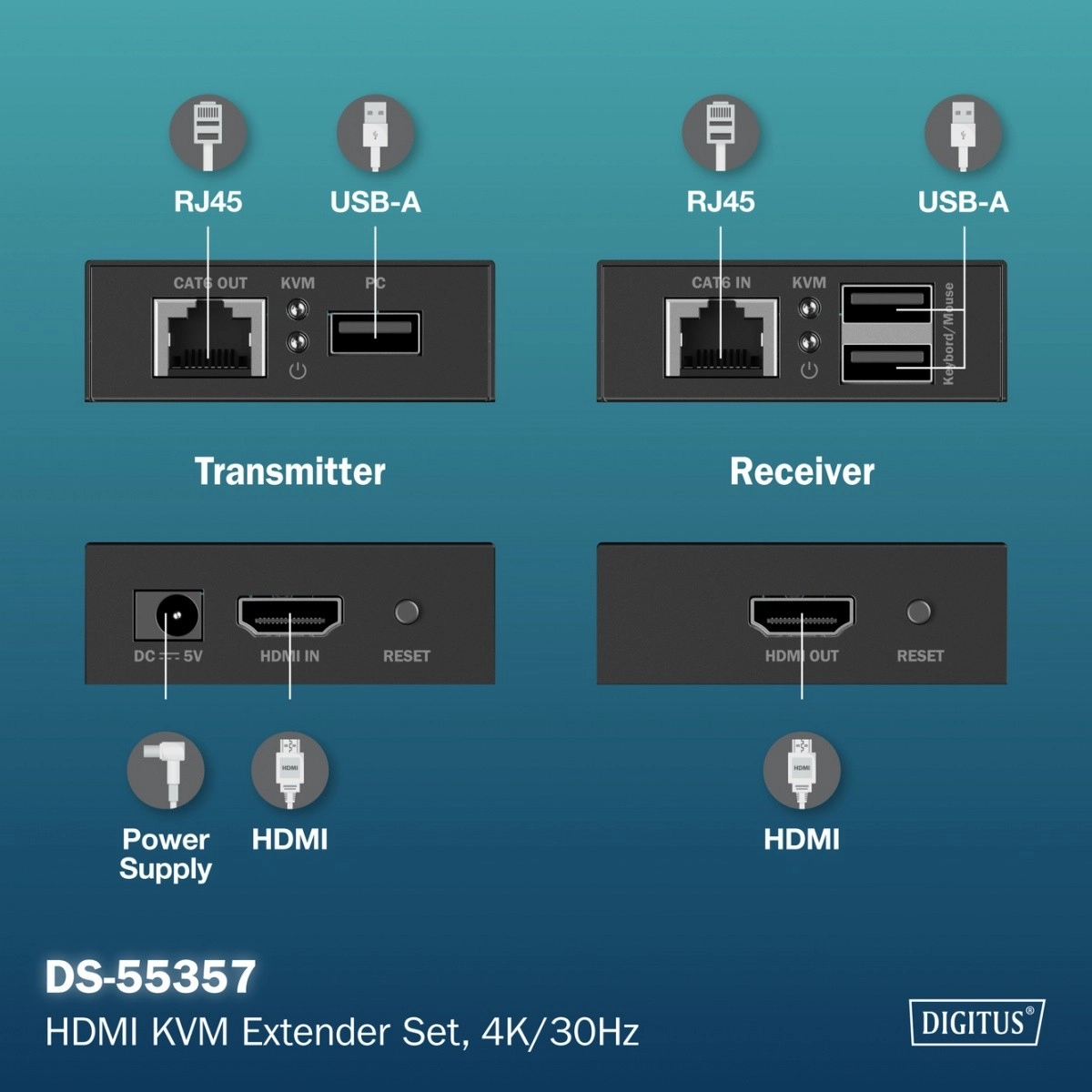

Specifications
- Product type
- HDMI extender (transmitter + receiver set)
- Transmission medium
- CAT6 or higher network cable
- Max. resolution / refresh rate
- UHD 4K (3840 × 2160) / 30 Hz
- Range at 4K/30 Hz
- Up to 40 m
- Supported resolution for longer range
- Full HD 1080p / 60 Hz
- Range at 1080p/60 Hz
- Up to 70 m
- Latency
- 10–20 ms
- Transmission type
- Uncompressed, lossless quality
- KVM
- Yes (keyboard + mouse on the receiver side)
- USB
- USB 1.1
- IR control
- Yes
- Power supply
- PoC (Power over Cable) – only the transmitter is powered by an external adapter; the receiver is powered through the cable
- Installation
- Plug & Play
- Connection topology
- Point-to-point
