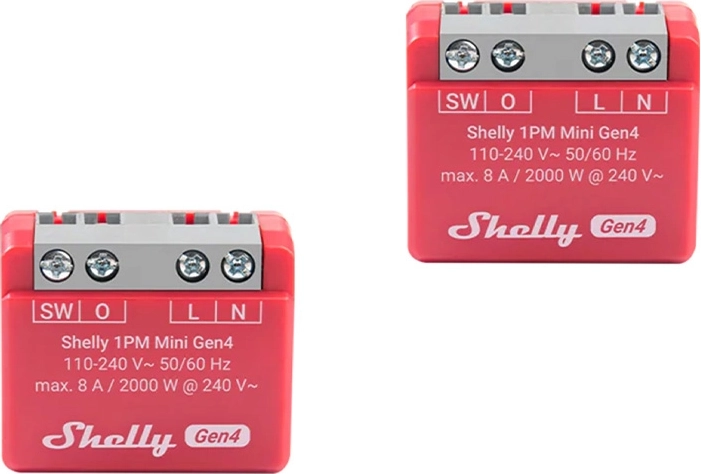

This set of two miniature Shelly 1PM Mini Gen4 modules brings remote control of electrical appliances and accurate energy consumption metering in one. With support for Wi‑Fi, Zigbee, Bluetooth, and Matter, you can easily integrate it into a smart home, locally or via the cloud; the compact body also fits into standard wall mounting boxes behind a switch or outlet.
Shelly 1PM Mini Gen4 works as a smart relay and at the same time as a power meter for the connected circuit. It lets you turn devices on and off remotely, monitor real-time consumption, and better optimize energy costs. Setup is simple thanks to the built-in web interface—no need to install additional software.
Wide compatibility (including Matter) makes integration into common smart home ecosystems as well as advanced installations easier. Create automations, state-based actions, schedules, or integrations via API and network services.
Main benefits
- Relay + power metering for a detailed overview of the consumption of connected devices
- Matter, Zigbee, Wi‑Fi, and Bluetooth support for flexible deployment
- Local operation and cloud depending on your preferences
- Built-in web interface for setup and monitoring
- Compact dimensions suitable for installation boxes, behind outlets and switches
- Automation and scripting (Shelly Script), schedules, and webhooks
- Safety protections against overheating, overvoltage, and overload (with cut-off)
- Can act as a repeater to boost Zigbee or Wi‑Fi signal in areas with weaker coverage
Package contents: 2× Shelly controller, user manual.
Specifications
- Manufacturer
- Shelly
- Model
- 1PMMiniGen4
- Number of pieces in the package
- 2
- Dimensions
- 29 × 34 × 16 ± 0.5 mm
- Weight
- 18 ± 1 g
- Max. tightening torque for screw terminals
- 0.4 Nm
- Conductor cross-section
- 0.2 to 2.5 mm² (24 to 14 AWG; solid wire, stranded wire, and ferrules)
- Wire stripping length
- 6 to 7 mm
- Mounting
- Wall mounting box
- Enclosure material
- Plastic
- Enclosure color
- Red
- Connector color
- Gray
- Operating temperature
- -20 °C to 40 °C
- Operating humidity
- 30% to 70% RH
- Max. altitude
- 2000 m
- Power supply
- 110–240 V AC
- Relay
- NO contact, 1-pole, µ contact
- External protection
- Trip curve B or C, max. rated current 10 A, min. breaking capacity 6 kA, energy limiting class 3
- Max. switching voltage
- 240 V AC
- Max. switching current
- 8 A / 240 V AC
- Power metering
- Yes
- Overvoltage protection (cut-off)
- Yes
- Overload protection (cut-off)
- Yes
- Overpower protection (cut-off)
- Yes
- Internal temperature sensor
- Yes
- Wi‑Fi protocol
- 802.11 b/g/n
- Wi‑Fi RF band
- 2412–2472 MHz
- Wi‑Fi max. RF power
- < 20 dBm
- Wi‑Fi range
- Up to 30 m indoors and 50 m outdoors (depending on local conditions)
- Bluetooth protocol
- 5.0
- Bluetooth RF band
- 2402–2480 MHz
- Bluetooth max. RF power
- < 4 dBm
- Bluetooth range
- Up to 10 m indoors and 30 m outdoors (depending on local conditions)
- Zigbee protocol
- 802.15.4
- Zigbee RF band
- 2400–2483.5 MHz
- Zigbee max. RF power
- < 20 dBm
- Zigbee range
- Up to 100 m indoors and 300 m outdoors (depending on local conditions)
- CPU
- ESP-Shelly-C68F
- Flash memory
- 8 MB
- Number of schedules
- 20
- Webhooks (URL actions)
- 20 (each with up to 5 URL addresses)
- Scripts
- Yes (Shelly Script)
- MQTT
- Yes
