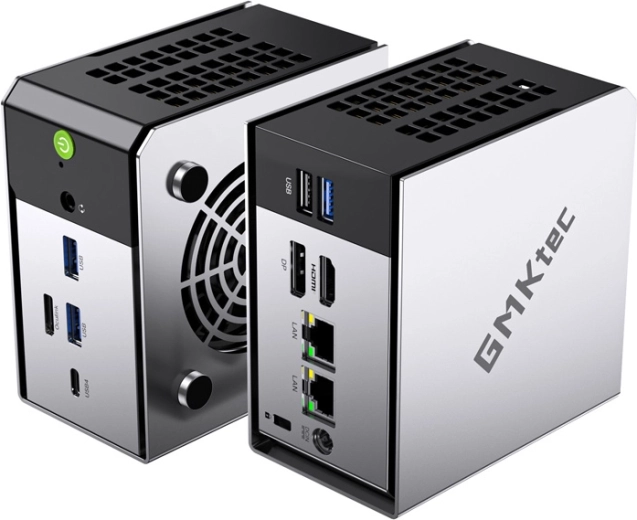

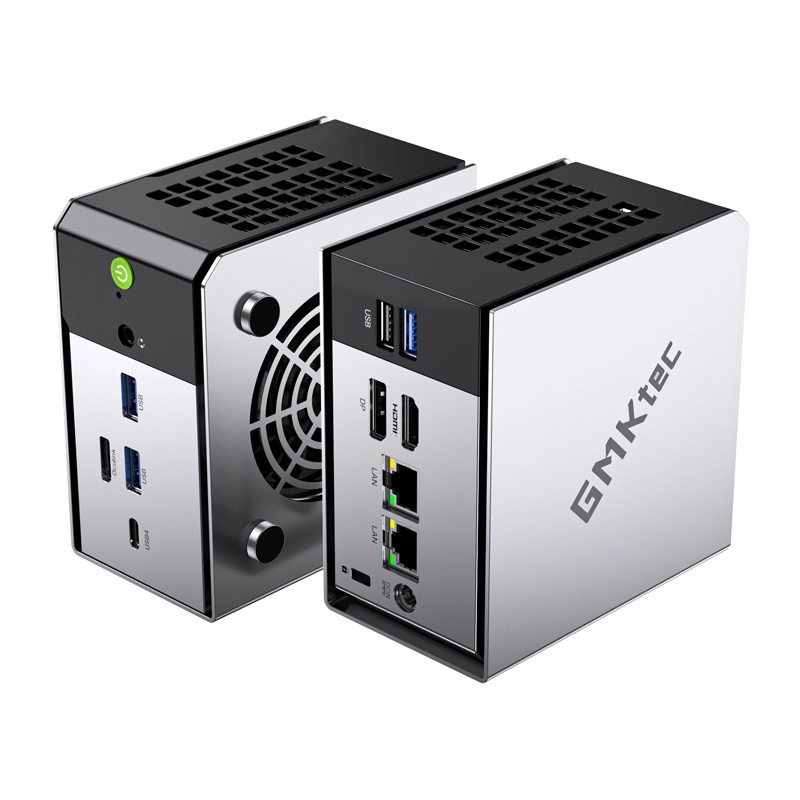

The compact GMKtec M8 mini PC delivers top-tier performance in a small body: a six-core AMD Ryzen 5 PRO 6650H, Radeon 660M graphics, 16 GB LPDDR5 6400 MT/s, a blazing-fast 512 GB SSD, and preinstalled Windows 11 Pro. It supports up to three 8K displays, features Wi‑Fi 6E, Bluetooth 5.2, and dual 2.5G LAN—ideal for work, multimedia, and demanding multitasking.
Uncompromising performance in a compact 110 × 108 × 64 mm chassis. The AMD Ryzen 5 PRO 6650H CPU (6C/12T, up to 4.5 GHz, 16 MB L3) with integrated Radeon 660M graphics handles heavy office apps, content creation, and technical workloads. Fast LPDDR5 6400 MT/s memory and a PCIe SSD ensure instant system response and smooth multi‑app operation.
(Maximum connectivity and visuals) Simultaneous output to three displays up to 8K/60 Hz via HDMI 2.0, DisplayPort 1.4, and USB4 (DisplayPort) significantly boosts productivity. Wi‑Fi 6E and Bluetooth 5.2 deliver stable wireless connections, while two 2.5G RJ45 ports enable fast transfers, NAS work, and link aggregation.
Easy expansion and quiet cooling Ships with a 512 GB SSD (PCIe 3.0), expandable via 2× M.2 2280 PCIe 4.0 x4 (up to 2× 8 TB). Dual‑fan cooling with copper heatpipes and switchable modes Silent 28 W / Balanced 35 W / Performance 40 W keeps temperatures in check even under sustained load.

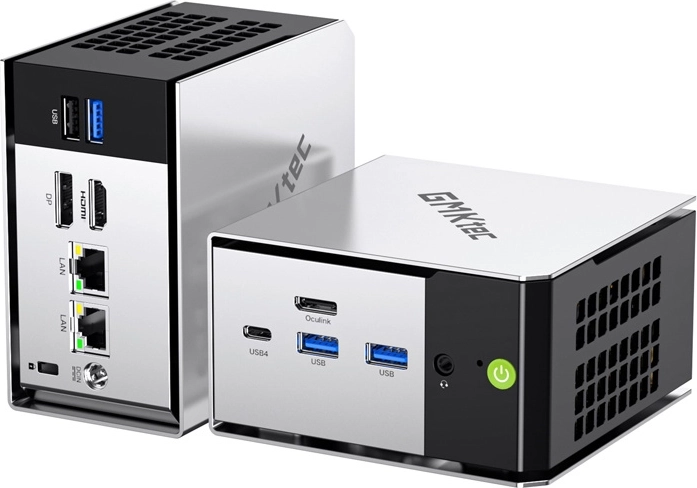

- Ports for everything: 3× USB‑A 3.2 Gen2, 1× USB‑A 2.0, 1× USB4 (PD/DP/40 Gb/s), 1× HDMI 2.0, 1× DP 1.4, 1× OCuLink (PCIe Gen4 x4) for eGPU, 2× RJ45 2.5G, 3.5 mm audio
- Enterprise security: supports TPM 2.0, BIOS, RTC
- Flexible use: preinstalled Windows 11 Pro, Linux support, VESA mounting
Specifications
- Manufacturer
- GMKtec
- Model
- M8
- Dimensions
- 110 × 108 × 64 mm
- Chassis material
- Metal, plastic
- Weight
- 482 g
- Processor
- AMD Ryzen 5 PRO 6650H (6 cores, 12 threads, up to 4.5 GHz, 16 MB L3)
- Max. clock speed
- 4.5 GHz
- Power modes
- 28 W / 35 W / 40 W
- RAM
- 16 GB LPDDR5 6400 MT/s
- Storage
- M.2 2280 512 GB (PCIe 3.0, installed), 2 × M.2 2280 PCIe 4.0 x4 (supports up to 2 × 8 TB)
- 2.5" HDD/SSD support
- No
- eMMC
- No
- Card reader
- No
- RTC
- Supported
- BIOS support
- Yes
- TPM
- TPM 2.0
- Graphics
- AMD Radeon 660M (integrated)
- Video outputs
- 1 × HDMI 2.0, 1 × DisplayPort 1.4, 1 × USB4 (with DisplayPort)
- Status indicator
- Power LED indicator
- Wi‑Fi
- Wi‑Fi 6E
- Bluetooth
- Bluetooth 5.2
- Integrated Wi‑Fi / Bluetooth
- Yes / Yes
- LAN
- 2 × RJ45 2.5G (2.5G / 1G / 100M / 10M)
- USB
- 3 × USB‑A 3.2 Gen2, 1 × USB‑A 2.0, 1 × USB4 (PD, DP, 40 Gb/s)
- Audio
- 1 × 3.5 mm headphone jack (CTIA)
- Extra interface
- 1 × OCuLink (PCIe Gen4 x4)
- Interface type
- PCIe
- Radio bands
- Wi‑Fi 2.4G / 5G / 6E, BT
- Max. transmit power (Wi‑Fi module AMD RZ616)
- 18.5 dBm (theoretical value)
- Operating system
- Windows 11 Pro (preinstalled), Linux support
- Operating temperature
- 0–40 °C
- Storage temperature
- 0–40 °C
- Relative humidity
- 35–80% RH, non‑condensing
- Power
- DC IN 20 V / 5 A (100 W)
- Buttons
- Power button ×1
- Antennas
- Built‑in dual antenna
- IR remote control
- No
- VESA mount
- Yes
- Package contents
- GMKtec M8 mini PC, user manual/warranty card, AC cable, DC power adapter, HDMI cable
