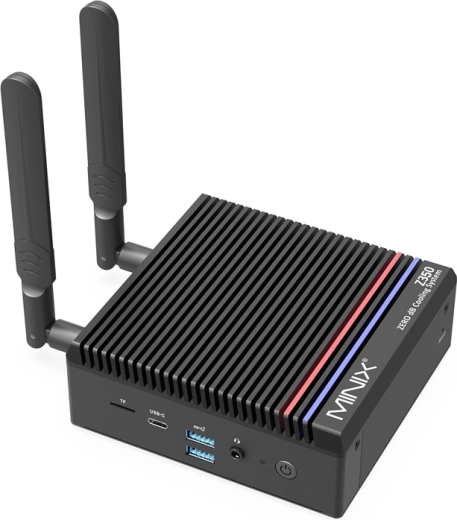

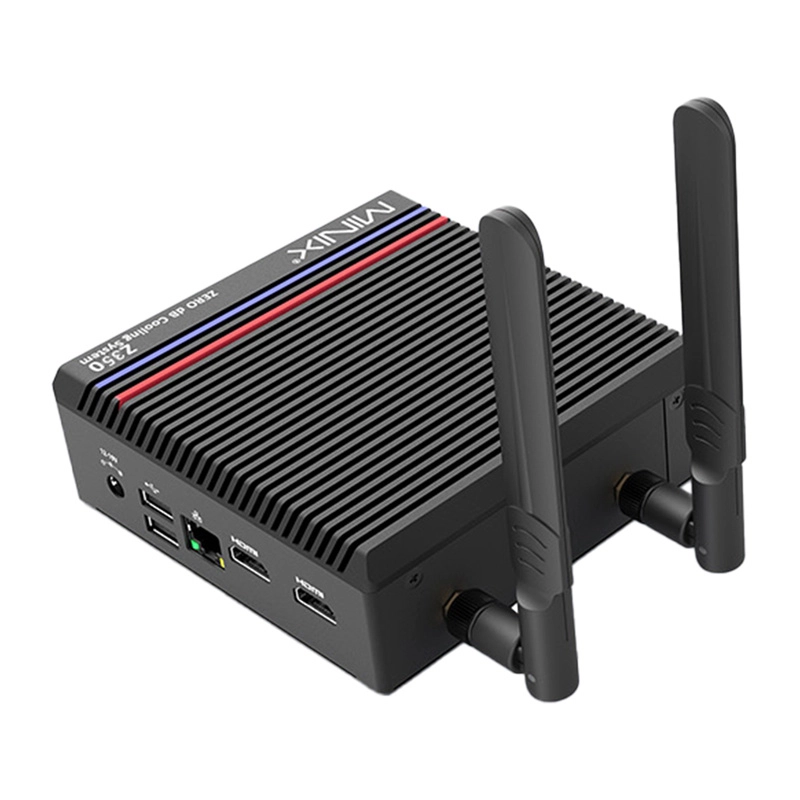

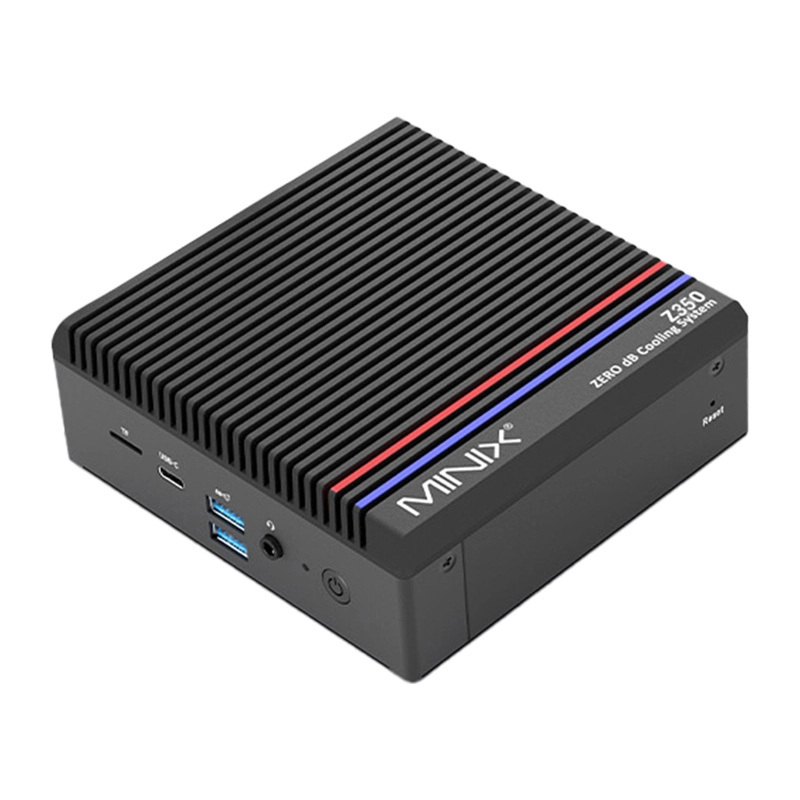

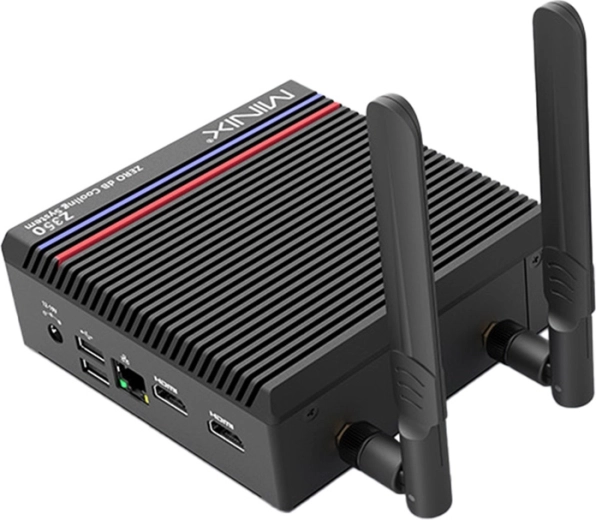

The compact MINIX Z350 fanless mini PC combines silent operation with a powerful Intel Core i3‑N350, 16 GB DDR4, and a 512GB NVMe SSD. It offers dual HDMI 2.1 with 4K@60 Hz, Wi‑Fi 6, Bluetooth 5.2, and 2.5G LAN for fast, stable connectivity. With Windows 11 Pro, rich I/O, and a durable all‑metal chassis, it’s ready to work at home, in the office, and in industrial deployments.
Quiet performance without compromise
The Intel Core i3‑N350 (up to 3.9 GHz) with 8 cores/8 threads and Intel UHD Graphics ensures smooth multitasking plus 4K playback and editing. Passive cooling eliminates noise and maintains stable performance without throttling even under prolonged load.
Fast memory and storage with expansion options
Standard configuration includes 16 GB DDR4‑3200 and a 512GB PCIe 3.0 NVMe SSD. Expand up to 4 TB via M.2 2280 NVMe and add microSD up to 2 TB—ideal for large projects and multimedia.
Top‑tier connectivity and robust build
Two HDMI 2.1 (4K@60 Hz) for dual monitors, USB‑A 3.2 Gen2, USB‑C 3.2 Gen2, 2× USB 2.0, combo audio, 2.5G Ethernet, Wi‑Fi 6, and Bluetooth 5.2. The all‑metal chassis made of aluminum and SGCC steel provides durability, improved heat dissipation, and VESA mount support.
- Automation and remote management: Wake‑on‑LAN, RTC Wake, auto‑power‑on, configurable AMI EFI GX4 BIOS.
- Low power consumption: typically 12 W, max. 25 W.
- Certifications: CE, FCC, ROHS, WEEE, UKCA, PSE.
- Windows 11 Pro with multilanguage support—ready to use.
Specifications
- Brand
- MINIX
- Type
- Mini PC
- Model
- NEO Z350-0dB
- Color
- Black
- Material
- All‑metal chassis (aluminum + SGCC steel)
- Processor
- Intel Core i3‑N350, 6M cache, up to 3.90 GHz
- Graphics processor
- Intel UHD Graphics
- Operating system
- Windows 11 Pro (multilanguage support)
- Power requirements
- 12 V / 3 A DC‑IN
- Power consumption
- 12 W (typical), 25 W (max.)
- Certifications
- FCC, CE, UKCA, ROHS, WEEE, PSE
- RAM
- 16 GB DDR4‑3200 (SO‑DIMM)
- RAM slot
- 1× DDR4 SO‑DIMM (up to 16 GB)
- Storage
- 512 GB M.2 2280 PCIe 3.0 x4 NVMe SSD
- SSD slot
- 1× M.2 2280 PCIe 3.0 x4 NVMe (up to 4 TB, not included)
- Card slot
- 1× TF (MicroSD) up to 2 TB (not included)
- BIOS
- AMI EFI GX4
- Ethernet
- RTL8125BG, 2.5 GbE
- LED indicators
- Power, LAN (activity, status)
- Wi‑Fi / Bluetooth
- M.2 2230 Intel 802.11AX201, dual‑band 2.4/5 GHz, Wi‑Fi 6; Bluetooth 5.2
- Power button
- Button with white LED
- USB‑A (3.2 Gen2)
- 2× (10 Gb/s)
- USB‑C (3.2 Gen2)
- 1× (10 Gb/s)
- USB‑A (2.0)
- 2× (480 Mb/s)
- Audio
- 1× 3.5 mm combo jack (headphones/microphone)
- TF card slot
- 1× (MicroSD)
- Reset button
- 1×
- Power connector
- 1× DC input (AC 100–240 V, output 12 V⎓3 A, max. 48 W; 2.5/5.5 mm)
- RJ‑45
- 1× 2.5G Ethernet (2500 Mb/s)
- HDMI output
- 2× HDMI 2.1 TMDS (4K@60 Hz)
- Operating temperature
- 0–50 °C, relative humidity 5–85%
- Storage temperature
- −20–70 °C
- Relative humidity
- 10–95% at 40 °C, non‑condensing
- Product dimensions
- 120.8 × 132.7 × 42.9 mm
- Package dimensions
- 175 × 230 × 72 mm
- Product weight
- 898 g
- Package weight
- 1643.5 g
- Package contents
- Mini PC, power adapter, HDMI cable, VESA mount, 2× dual‑band antenna
