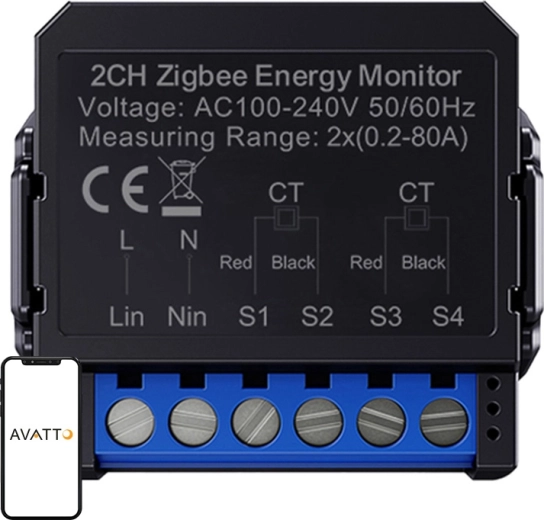

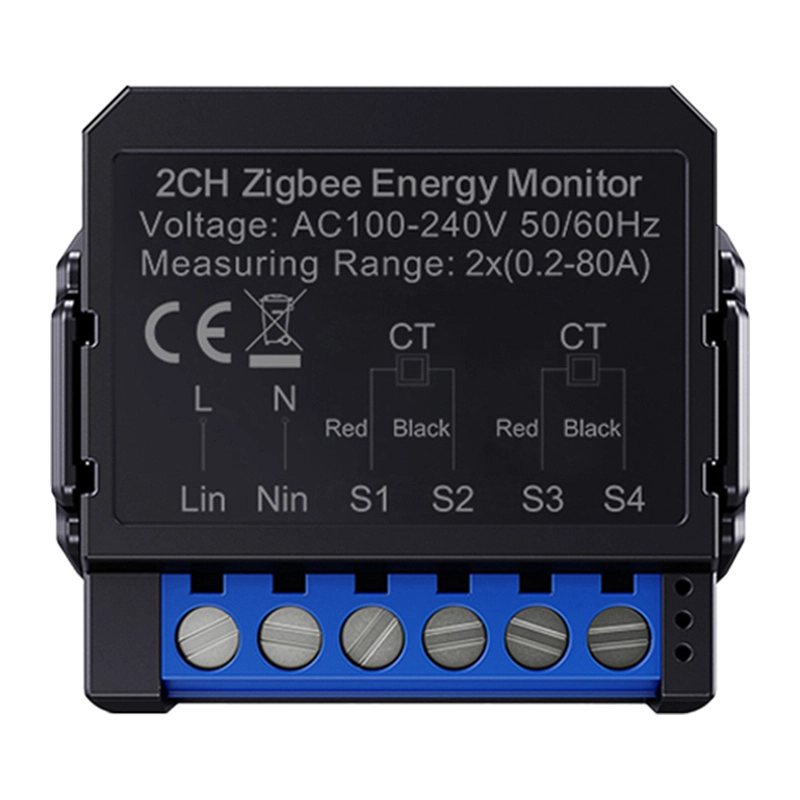

The Avatto Zigbee smart electricity meter with bidirectional measurement lets you monitor consumption and energy production in real time. It supports two measuring lines (grid and PV), displays voltage, current, and power in the Tuya/Smart Life app, and alerts you when set limits are exceeded. Easy installation with a CT sensor without cutting cables.
Avatto brings a modern solution for homes with photovoltaics and smart home systems. Bidirectional measurement distinguishes energy drawn from the grid and exported to the grid, giving you a clear view of your true balance. Thanks to Zigbee 3.0 and the Tuya / Smart Life app, you can track values in real time and analyze consumption by day, month, and year.

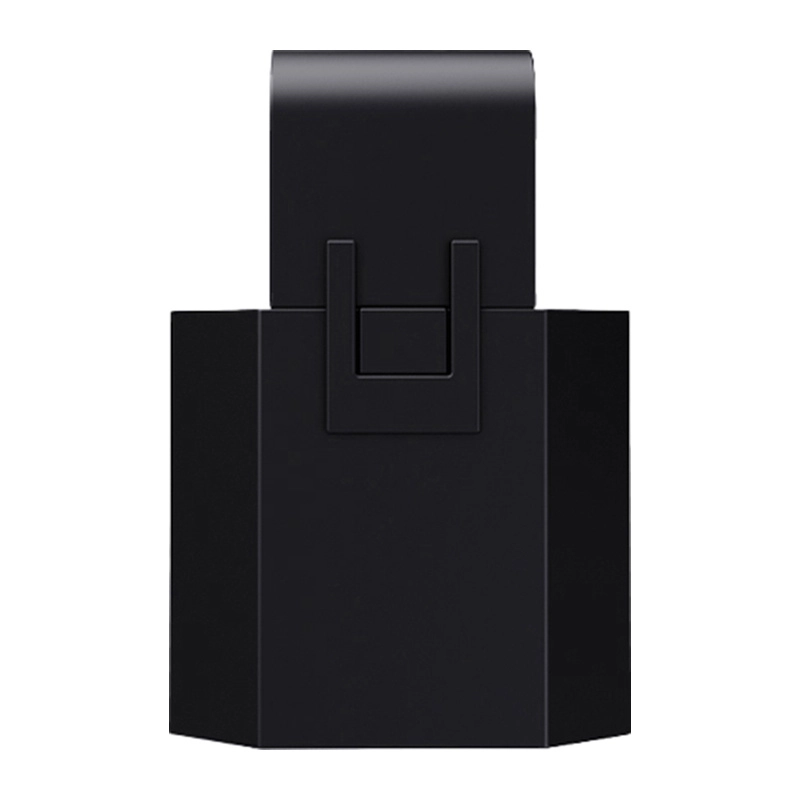

Installation is quick and safe – simply clip the included CT sensor onto the supply conductor without interrupting it. In the app you can easily set power thresholds, limits for standby, and receive anomaly alerts. The compact module fits standard distribution boards and is ideal for single-phase installations.
Main advantages:
- Bidirectional measurement for accurate control of consumption and PV export.
- Real-time measurement of voltage, current, and power in the app.
- Zigbee 3.0 with support for gateways and the smart home ecosystem.
- CT sensor without cutting cables for simple installation.
- Alerts and limits to detect inefficiencies and energy leaks.
Specifications
- Manufacturer
- Avatto
- Model
- ZWPM16-2
- Installation type
- Single-phase
- Measuring channels
- 2 (grid / photovoltaics)
- Current measurement range
- 0.2 – 80 A
- Operating voltage
- AC 100 – 240 V, 50/60 Hz
- Minimum power for measurement
- 10 W
- Communication
- Zigbee 3.0 (requires a Zigbee gateway)
- App compatibility
- Tuya Smart / Smart Life
- Module dimensions
- 38.8 × 38.5 mm
- CT sensor dimensions
- 40 × 25.6 mm
- Operating temperature range
- -10 – 50 °C
