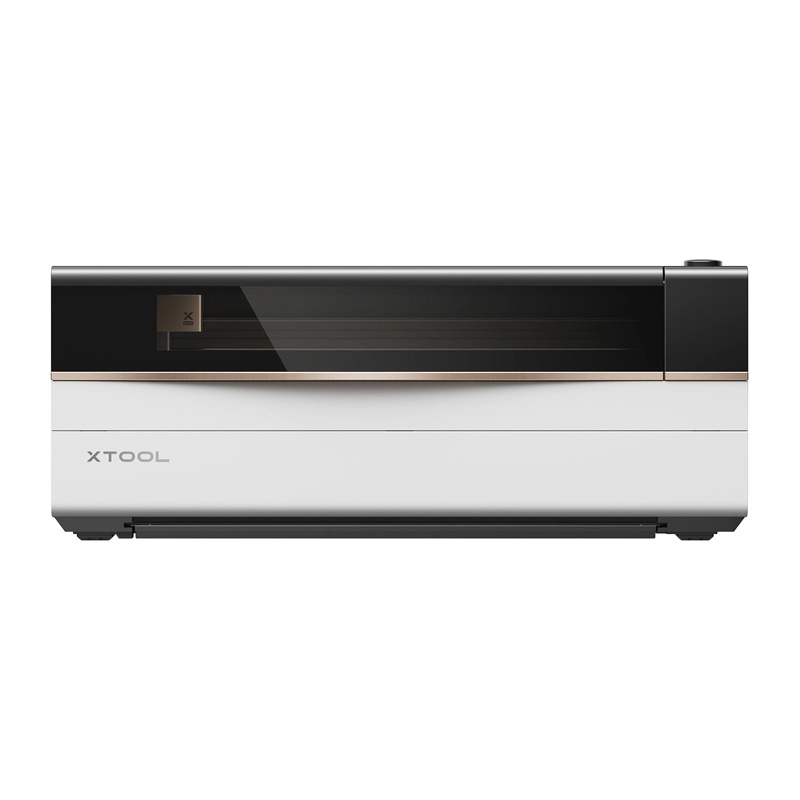

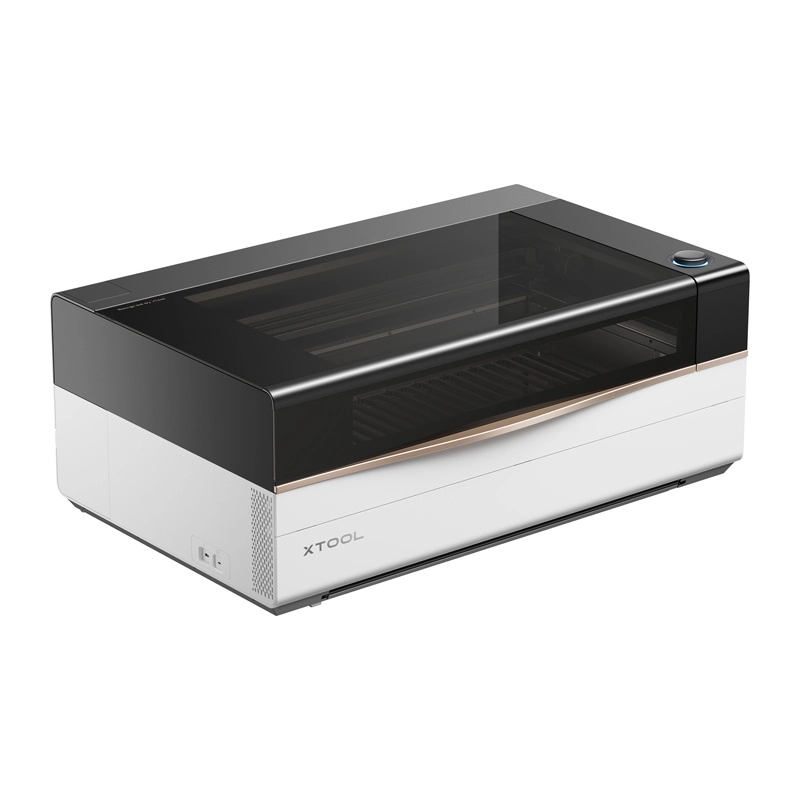

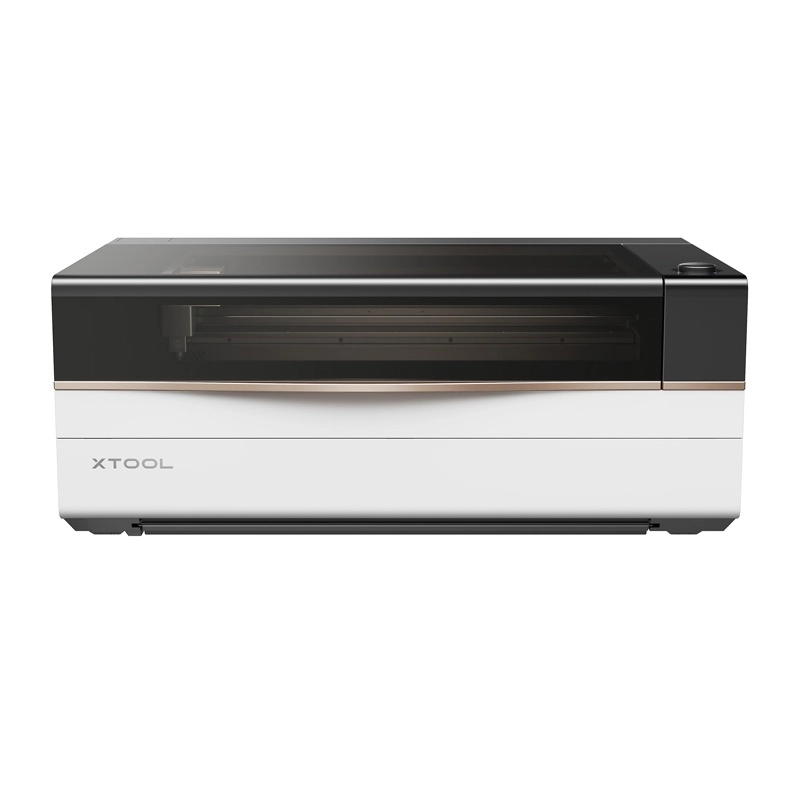

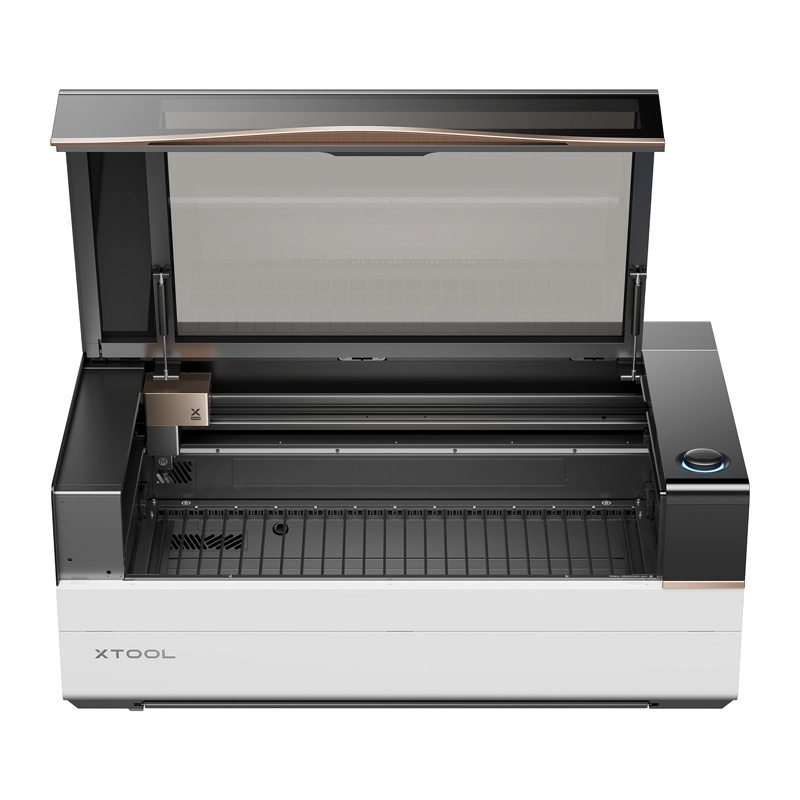

Powerful and safe xTool P3 80W laser engraver with a large working area of 915 × 458 mm, speed up to 1,200 mm/s, and smart automation ACS™. The package includes a complete all‑in‑one set: smart conveyor for long formats, RA3 rotary attachment, high‑performance SafetyPro™ AP2 Max fume extractor, and a mobile workstation. Ideal for professional workshops, manufacturing, and creative projects—precise cutting and engraving of more than 300 materials with top‑tier Class 1 safety.

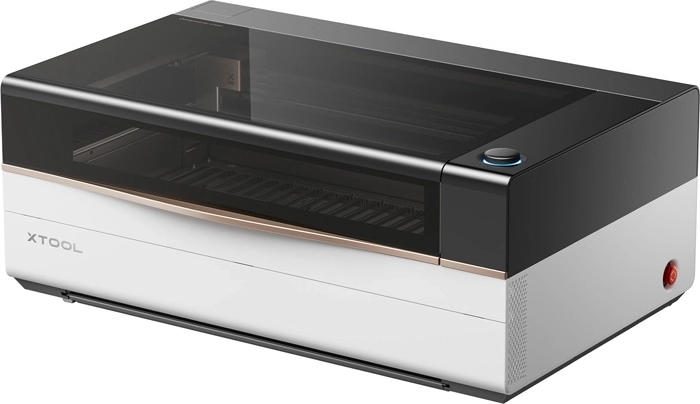

1,200 mm/s speed and large working area
Achieve top productivity with speeds up to 1,200 mm/s and a 915 × 458 mm working area. A stable CO2 tube with a lifespan of up to 10,000 hours enables long‑term operation without performance drop.
Smart automation ACS™, LiDAR, and AutoLift
Automatic positioning, distance measurement, and focusing minimize setup time. AutoLift automatically sets the ideal material height up to 220 mm without user intervention.

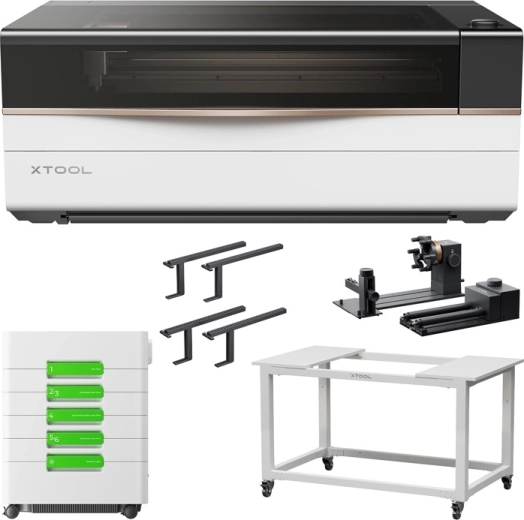

All‑in‑one kit for professional results
Includes a smart conveyor (up to 610 × 1300 mm), RA3 rotary attachment for cylindrical objects, and the powerful SafetyPro™ AP2 Max fume extractor for a clean and safe environment.
The xTool P3 combines an 80W CO2 laser with smart features for maximum productivity: LiDAR for automatic distance measurement, AutoLift for materials up to 220 mm tall, and a dual‑camera system (16 MP panoramic + detail) for precise design placement. Smart Nesting and Variable Batch Fill optimize material usage and batch personalization.
The all‑in‑one kit expands possibilities: the smart conveyor increases the working area up to 610 × 1300 mm, RA3 makes engraving cylindrical and irregular objects easier, and AP2 Max ensures clean air thanks to a 7‑layer filter and airflow up to 700 m³/h. The enclosed design, emergency STOP, and multi‑zone flame and temperature sensors guarantee Class 1 safety.
Key benefits:
- Speed and precision: up to 1,200 mm/s, motion accuracy 0.01 mm.
- Automation: ACS™, auto‑focus, LiDAR, AutoLift, live camera preview.
- Material flexibility: cuts wood, acrylic, leather, fabrics; engraves metal, glass, ceramics, etc. (with optional 5W IR module).
- Professional accessories: long‑sheet conveyor, RA3 rotary attachment, SafetyPro™ AP2 Max, mobile station.
Specifications
- Manufacturer
- xTool
- Model
- P3 (P0101000119)
- Laser type
- 80W CO2 laser + optional 5W IR laser
- Operating modes
- Laser cutting, laser engraving
- Working area
- 915 × 458 mm
- Maximum speed
- 1,200 mm/s; X‑axis acceleration: 19,600 mm/s²
- Motion accuracy
- 0.01 mm
- Positioning accuracy
- 0.2 mm
- Max. cutting thickness (basswood)
- 20 mm (1 pass)
- Max. cutting thickness (acrylic)
- 25 mm (1 pass)
- Max. material height
- 220 mm
- Rotary engraving – diameter
- 0–200 mm (RA3 up to 130 mm with T‑handle)
- Optics – spot size
- S: 0.14 × 0.16 mm (optional); M: 0.15 × 0.18 mm (standard); L: 0.18 × 0.20 mm (optional)
- Cameras
- 16 MP panoramic SkyView + detail proximity + 2 side cameras
- Measuring and focusing
- LiDAR, automatic focusing, AutoLift
- Software
- xTool Studio
- OS compatibility
- Windows, macOS
- Connectivity
- USB, Wi‑Fi
- File formats
- SVG, DXF, JPG, JPEG, PNG, BMP, TIF
- Safety
- Laser safety Class 1, emergency STOP, flame and temperature sensors
- Maximum power consumption
- 1,400 W
- Power supply
- 100–240 V AC, 50/60 Hz
- Device dimensions
- 1,250 × 780 × 496 mm
- Device weight
- 105 kg
- Mobile workstation
- Steel, load capacity up to 200 kg, expandable, mounting holes for shelves (model P0102000110)
- Smart conveyor
- Working area 610 × 1300 mm; max thicknesses: wood 26 mm, acrylic 20 mm, MDF 20 mm, felt/cork 12 mm, EVA 15 mm (model P0101000117)
- RA3 rotary attachment
- MagSwap™ tool‑less, T‑handle, max workpiece diameter 130 mm, supports cylinders, balls, vases (model P5010454)
- SafetyPro™ AP2 Max fume extractor
- Airflow 700 m³/h, 7‑layer filter, 72 cyclones, 1–100% control, noise 65 dB, power up to 900 W, 662 × 452 × 845 mm (model P0101000132)
- Box contents
- xTool P3, power cable, USB cable, antifreeze, funnel, clamps, masking tape, sheet of cardboard, sheet of basswood (3 mm), long and short exhaust pipes, safety instructions, quick guide, SafetyPro™ IF 2.0 module, mounting accessories and tools, mobile workstation, smart conveyor, rotary attachment, fume extractor
