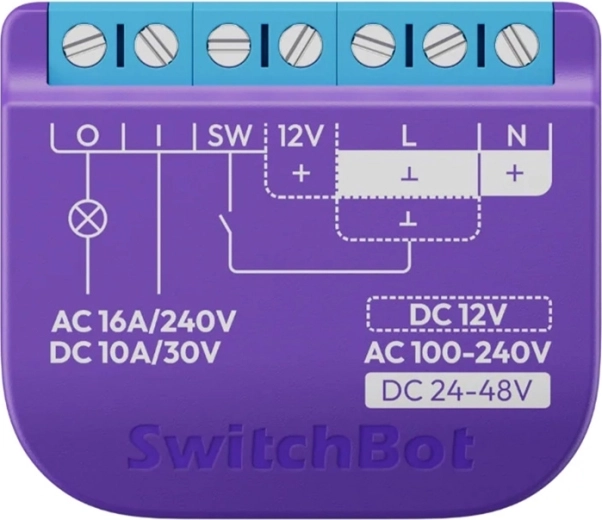

Discover an easy path to a smart home with the SWITCHBOT Relay Switch 1 with a volt‑free contact. It offers Matter compatibility, control via Wi‑Fi and Bluetooth, a built‑in Bluetooth repeater to extend range, and quick installation without replacing existing switches. Thanks to voice control, schedules, and advanced overheat protection, it’s an ideal choice for modern and safe control of lights, sockets, and gates.
The SWITCHBOT Relay Switch 1 lets you turn ordinary devices into smart ones without modifying the wiring. In 10 minutes you can hide it in a wall box and gain centralized management in Apple Home, Alexa, Google Home, and SmartThings thanks to Matter certification. The built‑in BLE repeater extends the SwitchBot ecosystem’s range and ensures reliable operation of sensors, locks, and thermometers throughout the house.
It supports multiple switching modes (toggle, momentary, detached, edge), so it easily adapts to lighting circuits, intercoms, garage doors, and access systems. Voice control, automatic schedules, and remote access via Wi‑Fi increase comfort and energy savings. The design with a V0 flame‑retardant housing and thermal protection at 100 °C ensures maximum safety.
- Matter compatibility – easy integration into Apple Home and other platforms.
- Bluetooth repeater – extends range for up to 10 SwitchBot devices.
- Fast flush‑mount installation – no switch replacement or remodeling.
- Voice control – Alexa and Google Assistant, plus schedules and automation.
- Safe operation – overheat protection and V0‑rated housing.
Specifications
- Manufacturer
- SwitchBot
- Model
- Relay Switch 1 (Relay Switch 1)
- Dimensions
- 42 × 36 × 16 mm (±0.5 mm)
- Weight
- 27 g
- Material
- PC
- AC power supply
- 100–240 V, 50/60 Hz
- DC power supply
- 24–48 V, 12 V
- Maximum output current AC
- 16 A
- Maximum output current DC
- 10 A
- Connectivity
- Wi‑Fi + BLE
- Installation method
- Flush‑mount
- Bluetooth range
- Up to 10 m indoors / up to 30 m outdoors
- Wi‑Fi range
- Up to 30 m indoors / up to 50 m outdoors
- Certifications
- USA: FCC, EU: CE, RoHS
- Button function
- Controls on/off of connected devices (lights, sockets, access control, etc.)
- Overheat protection
- Yes (automatic disconnect when exceeding 100 °C)
- Switching modes
- Toggle, momentary switch, detached switch, edge switch
- Matter integration
- Yes (appears as a switch in the Home app; option to add a secondary Matter device)
- Maximum number of SwitchBot Bluetooth devices
- 10
