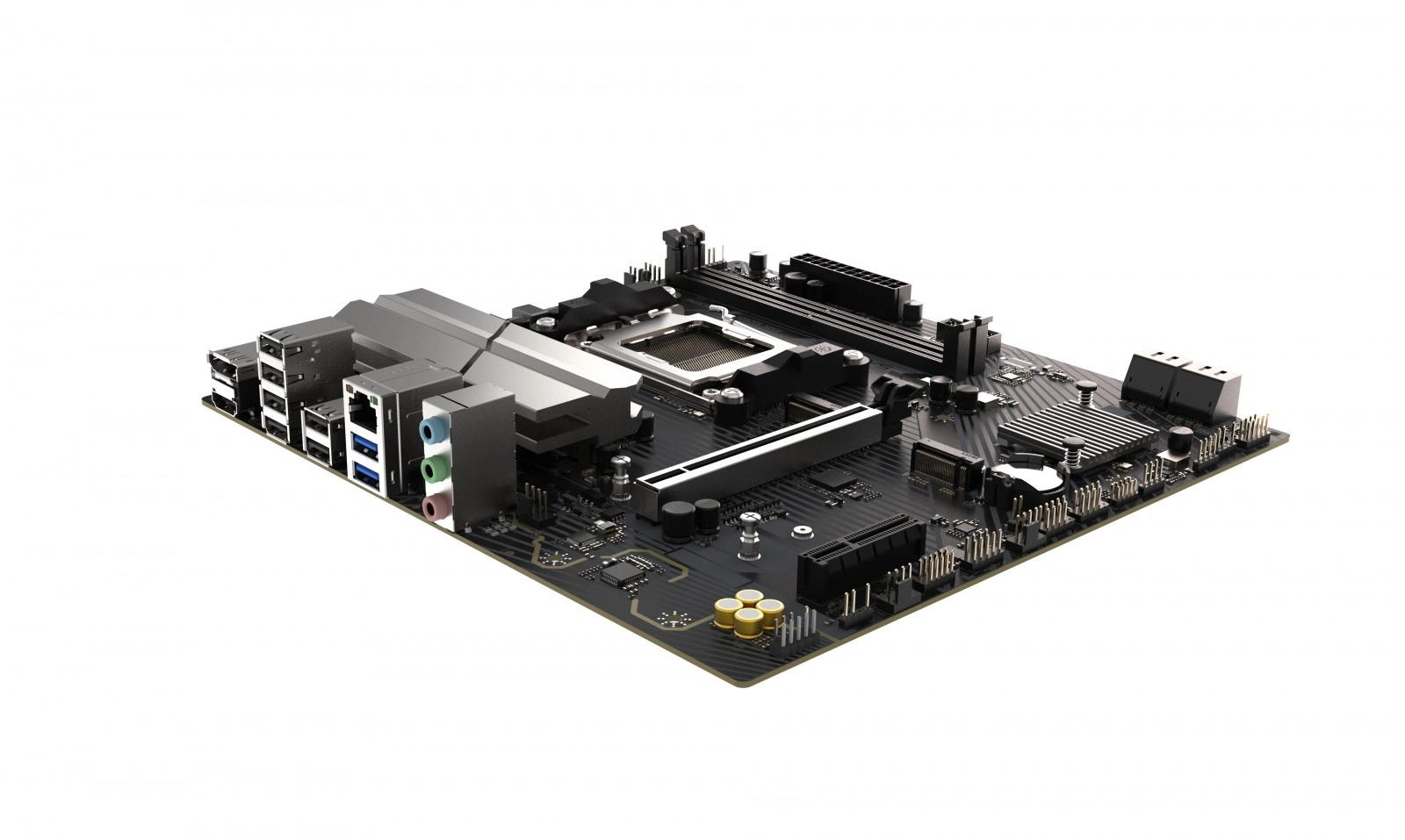

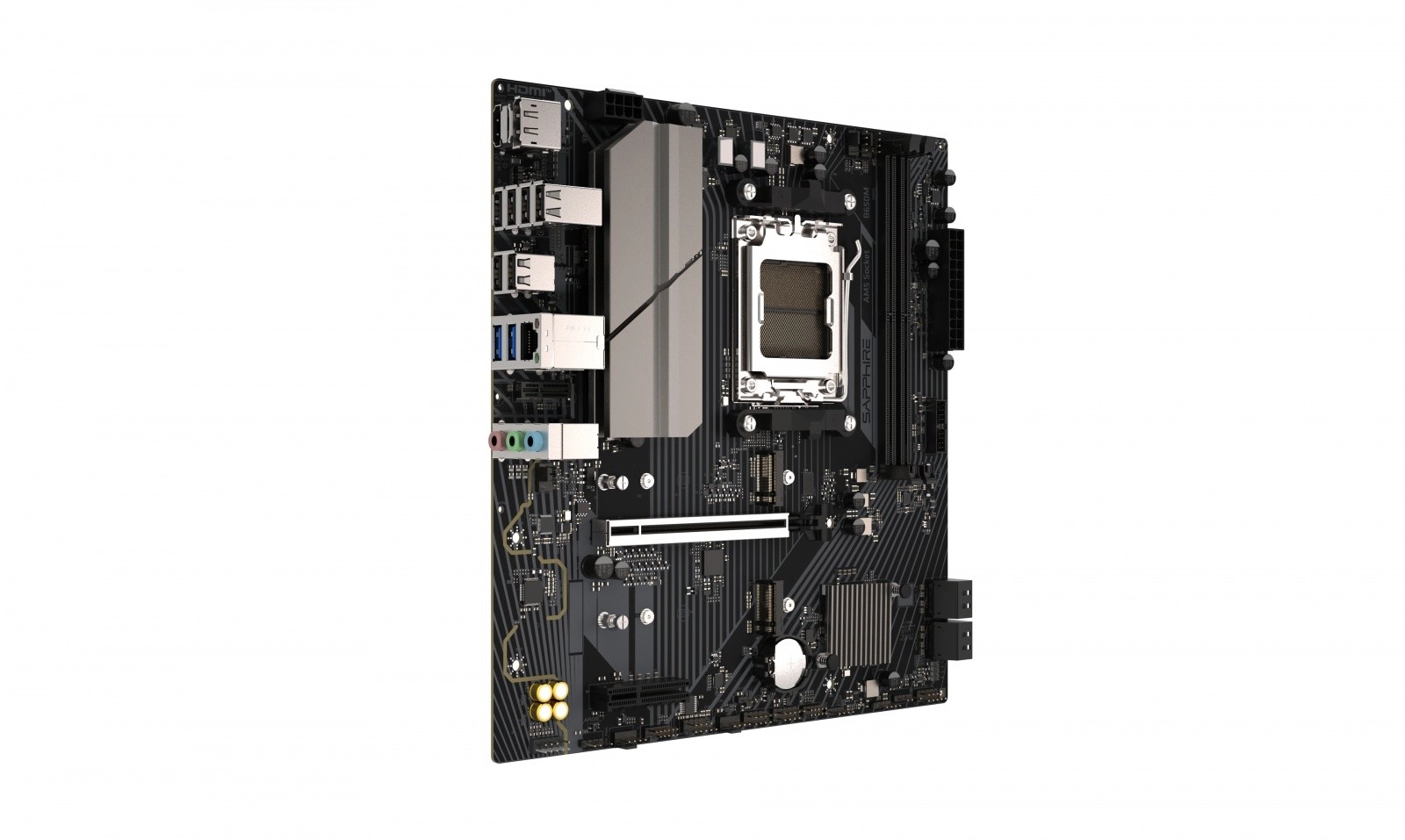

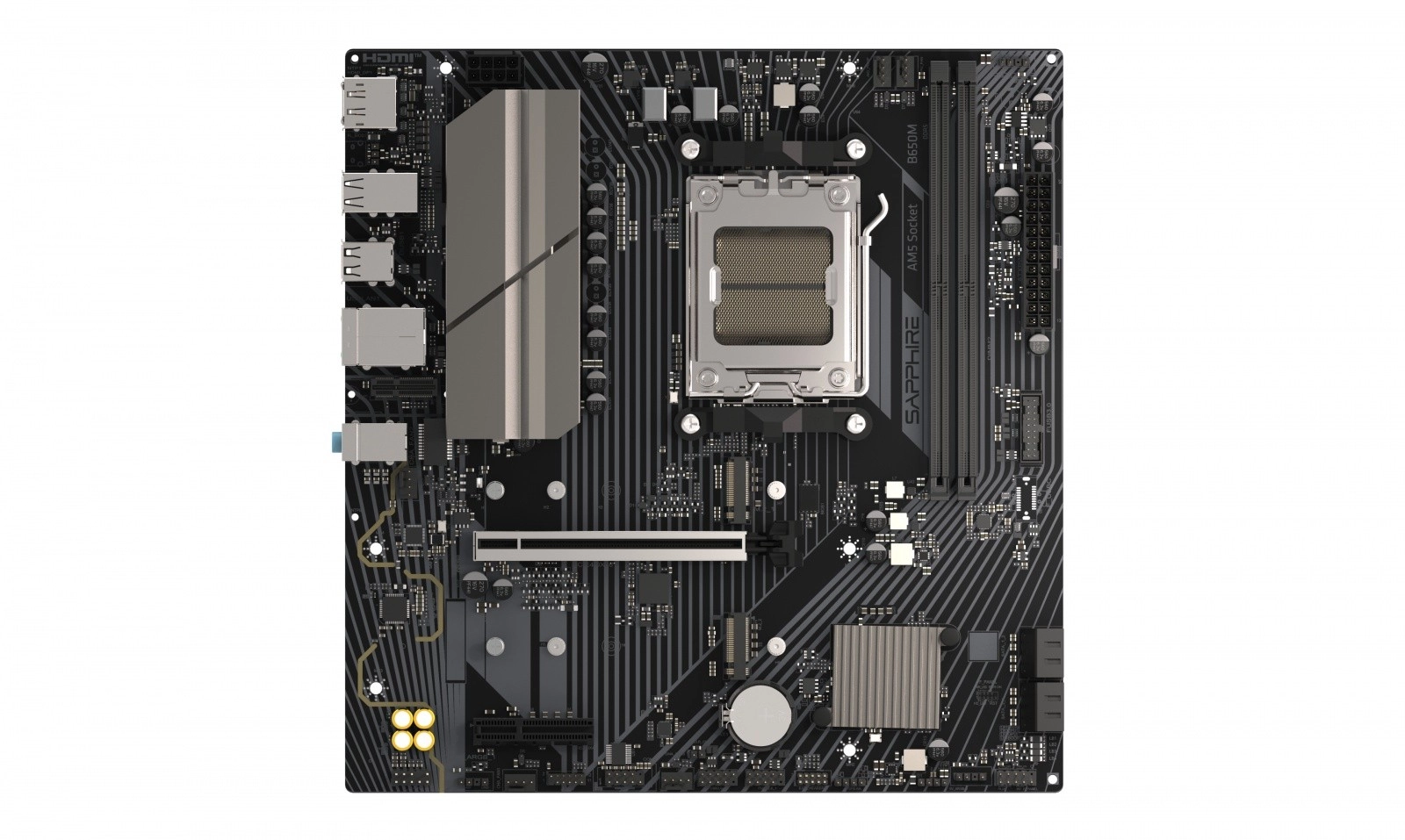

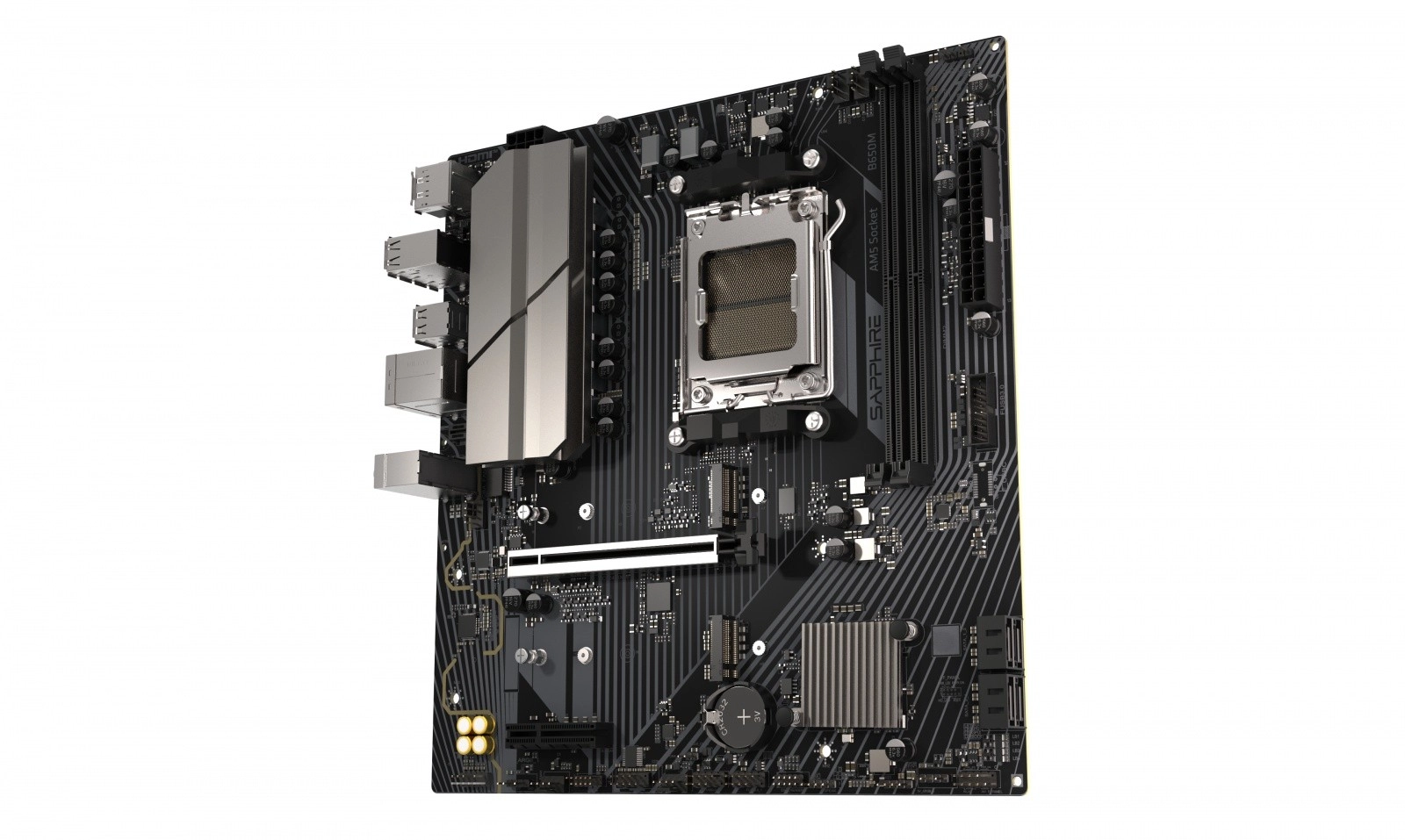

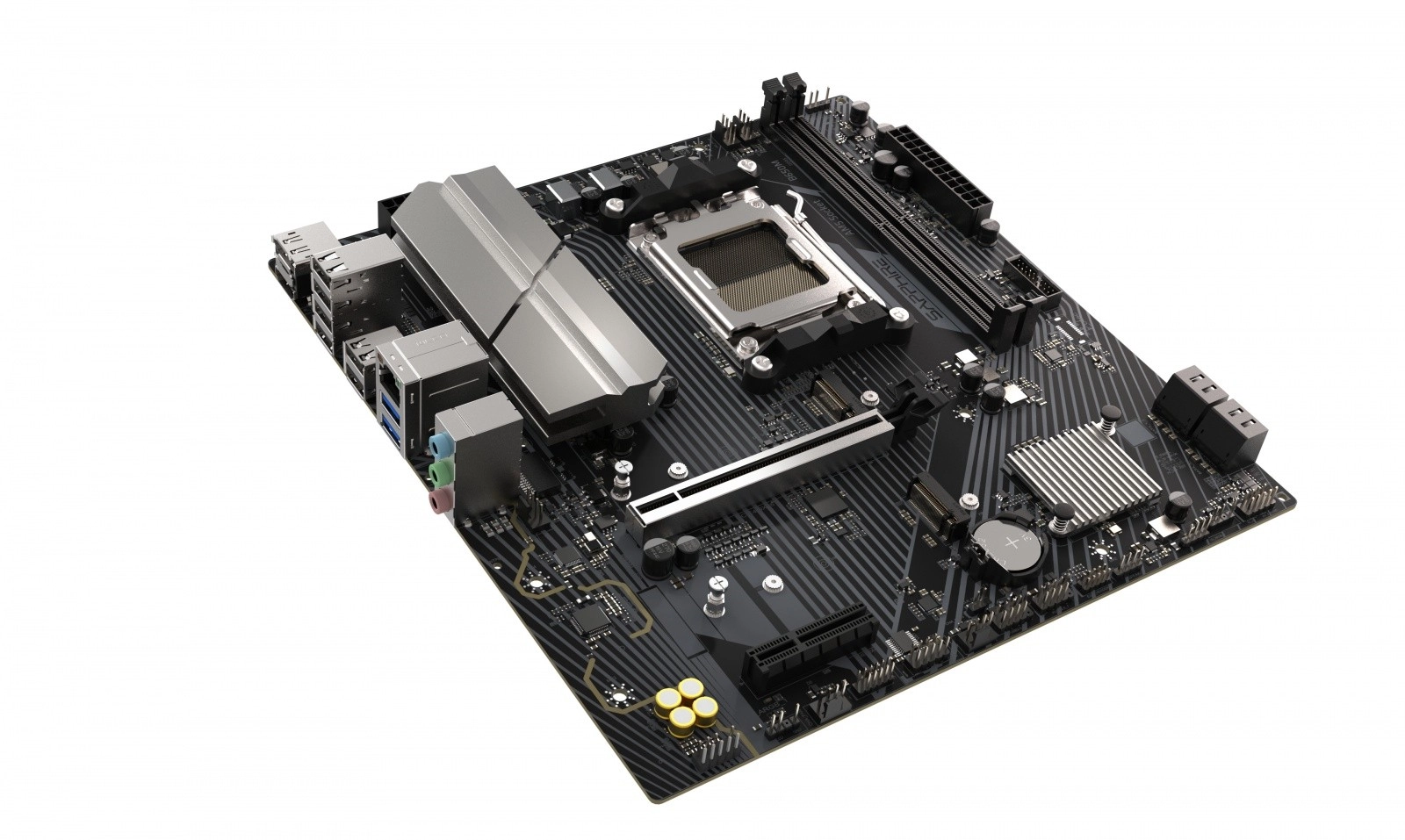

The compact mATX motherboard Sapphire B650M‑E for AMD Ryzen processors on the AM5 socket delivers modern features for both gaming and high‑performance builds. It brings PCIe 5.0 for M.2 SSDs, a graphics slot PCIe 4.0 x16, fast DDR5 (Dual Channel, up to 7600 MHz OC), and stable power thanks to a 6+2+1 phase VRM with heatsinks. It includes efficient cooling for the VRM, M.2, and chipset and clear tuning in the Sapphire CORE BIOS.
Modern AM5 platform with DDR5 and high OC
Support for the latest AMD Ryzen processors on the AM5 socket, DDR5 memory in dual‑channel mode, and overclocking up to 7600 MHz OC for maximum gaming and workstation performance.
PCIe 5.0 for M.2 and fast PCIe 4.0 x16
Leverage extreme NVMe SSD speeds with PCIe 5.0 M.2 and full graphics performance via PCIe 4.0 x16 – ideal for demanding games and creative workflows.
Robust VRM and efficient cooling
A 6+2+1 power stage with 60 A per phase and large heatsinks on the VRM, M.2, and chipset ensure stability, low temperatures, and long component lifespan.
The Sapphire B650M‑E is a reliable foundation for a modern PC with AMD Ryzen processors (AM5). Thanks to the B650 chipset, you get fast storage with PCIe 5.0 M.2, responsive graphics via PCIe 4.0 x16, and support for DDR5 memory with high overclocking for maximum performance in games and productivity.
Stability is ensured by a 6+2+1 power design (60 A per phase) and robust heatsinks on the VRM, M.2, and PCH. The board offers clear tuning and updates in the Sapphire CORE BIOS, so you can easily harness your system’s potential.
Key benefits:
- AM5 support for the latest AMD Ryzen processors
- PCIe 5.0 for NVMe M.2 SSDs – extreme load speeds
- DDR5 Dual Channel with OC up to 7600 MHz for higher performance
- PCIe 4.0 x16 for modern graphics cards
- Robust 6+2+1 VRM and efficient cooling for long‑term reliability
Specifications
- CPU socket
- AMD AM5
- Chipset
- AMD B650
- Power delivery
- 6+2+1 phases, 60 A per phase
- Memory
- DDR5, Dual Channel, OC support up to 7600 MHz
- Expansion slot for GPU
- PCI Express 4.0 x16
- M.2 storage
- PCIe 5.0 M.2 support
- Cooling
- VRM, M.2, and PCH heatsinks
- Form factor
- mATX (Micro ATX)
- Firmware
- Sapphire CORE BIOS
