The compact ASRock B760M-ITX/D4 WiFi motherboard for LGA1700 supports Intel Core 12th/13th/14th Gen processors and offers PCIe 4.0, M.2 NVMe Gen4 x4, Wi‑Fi 6E with Bluetooth, rich USB 3.2 Gen2x2 Type‑C connectivity, and enhanced Nahimic audio. Thanks to a 5+1+1 phase VRM with Dr.MOS, 6‑layer PCB, and steel‑reinforced PCIe slot, it delivers stability, performance, and reliability in the small mini‑ITX form factor.

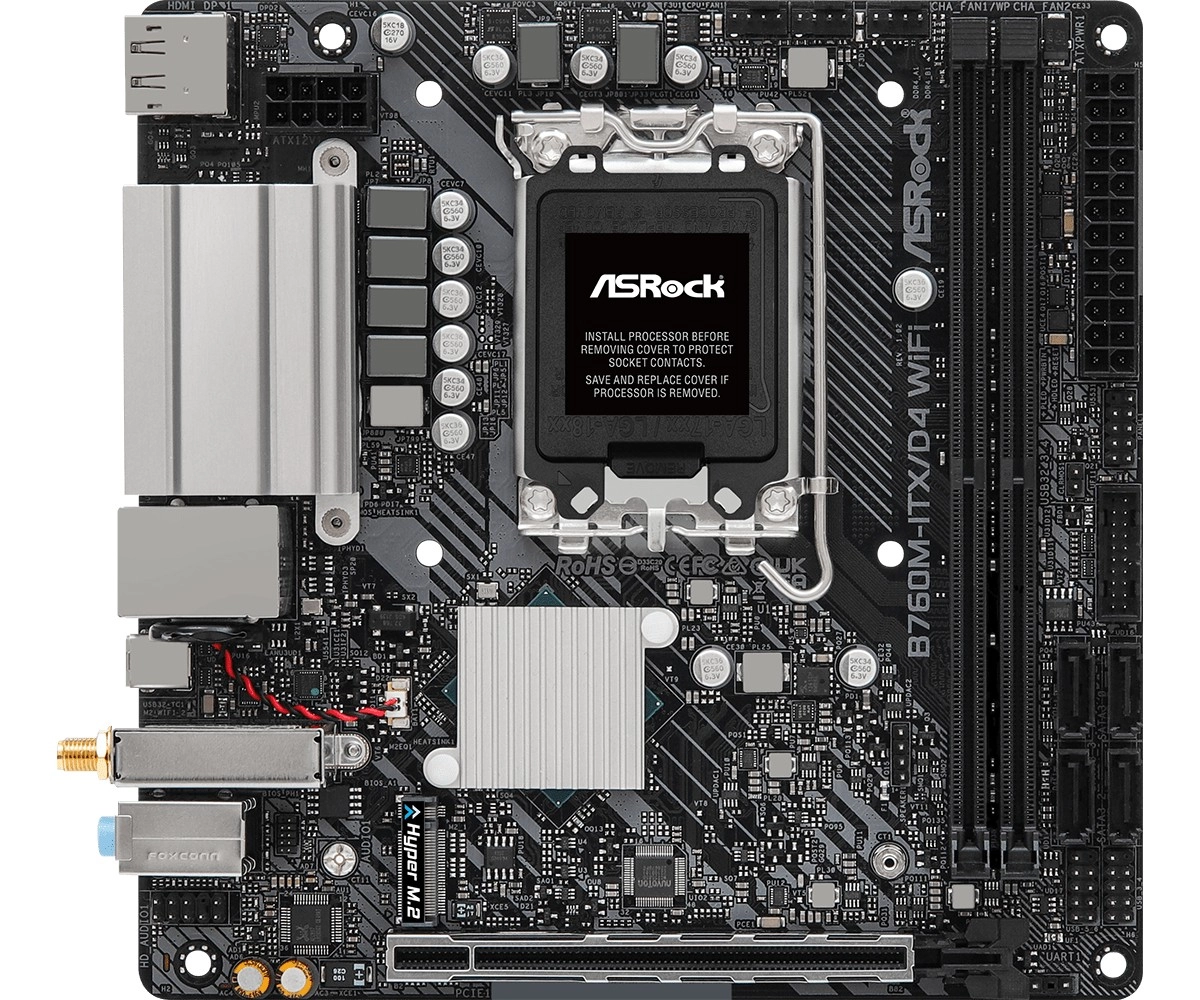

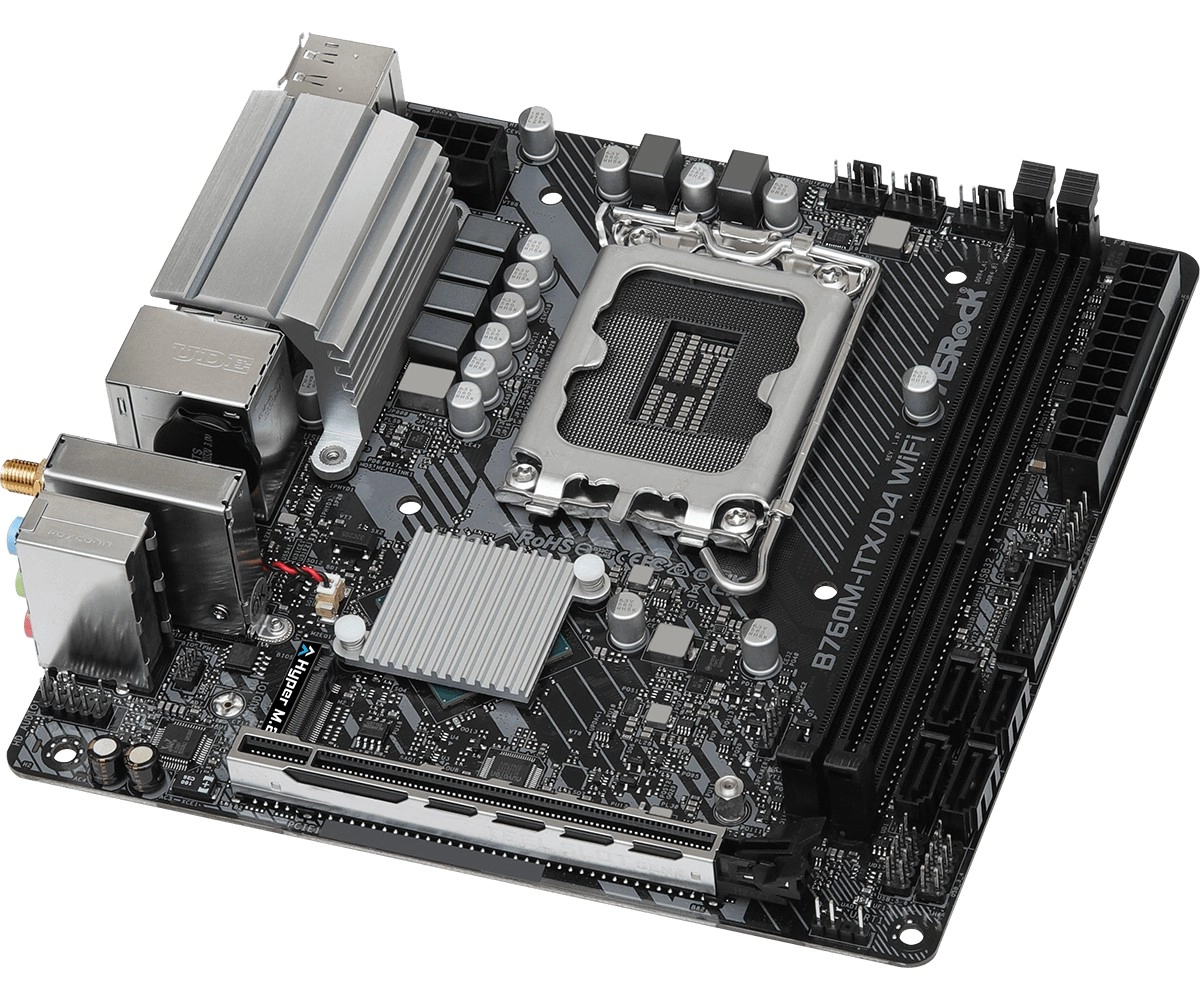

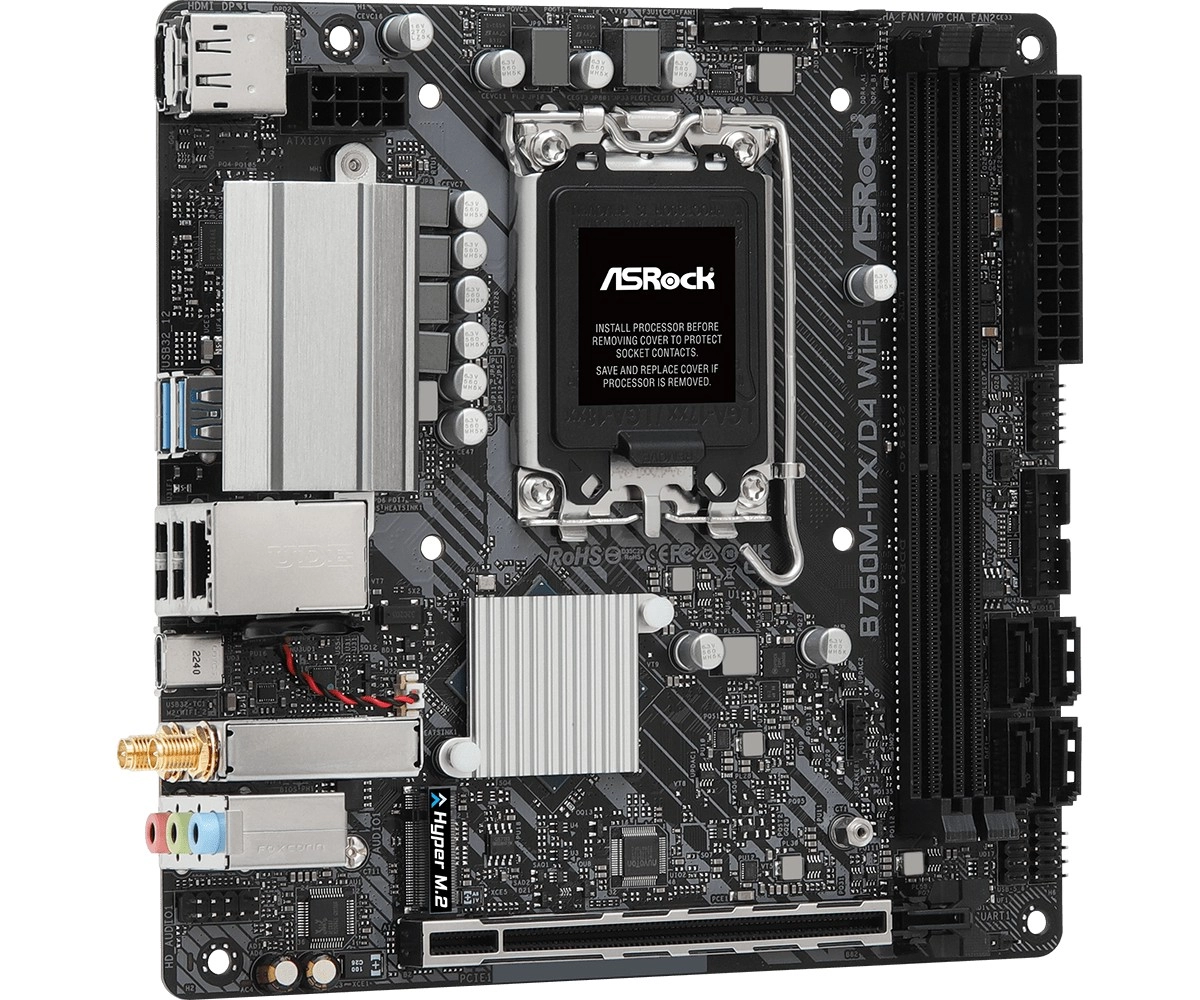

The ASRock B760M-ITX/D4 WiFi is a powerful mini‑ITX board for building compact PCs. It supports modern Intel Core processors (LGA1700), fast DDR4 memory up to 5333+ (OC), graphics cards via PCIe 4.0 x16, and high‑speed storage with Hyper M.2 (PCIe Gen4 x4). Stable power delivery is ensured by a 5+1+1 VRM with Dr.MOS, a reinforced 6‑layer PCB, and a steel PCIe slot.
Integrated Wi‑Fi 6E (802.11ax) with Bluetooth provides higher throughput and lower latency, while the rear USB 3.2 Gen2x2 Type‑C offers blazing transfer speeds up to 20 Gb/s. Immersive and clear sound is delivered by the Realtek ALC897 codec with Nahimic technology – including features for noise suppression, echo cancellation, and improved voice intelligibility.
- Power and stability: 5+1+1 phases with Dr.MOS, 6‑layer PCB, steel PCIe 4.0 slot
- Memory: 2× DDR4 DIMM, Dual Channel, up to 5333+ MHz (OC)
- Storage: 1× Hyper M.2 (PCIe Gen4 x4), 4× SATA3
- Connectivity: Wi‑Fi 6E + Bluetooth, Realtek 1G LAN
- USB: 1× USB 3.2 Gen2x2 Type‑C (rear), 4× USB 3.2 Gen1 (2 rear, 2 front), 6× USB 2.0 (2 rear, 4 front)
- Audio: Realtek ALC897 7.1 CH HD, Nahimic, enhancements for gaming and communication
- Video outputs: HDMI, DisplayPort
- Easy installation: support for ASRock Auto Driver Installer
Specifications
- Form factor
- mini‑ITX
- Chipset
- Intel B760
- Socket
- LGA1700
- Processor support
- Intel Core 12th, 13th, and 14th Gen
- Power stages
- 5+1+1, Dr.MOS for VCore + GT
- Memory
- 2× DDR4 DIMM, Dual Channel, up to 5333+ MHz (OC)
- Expansion slots
- 1× PCIe 4.0 x16 (steel‑reinforced)
- Storage
- 1× Hyper M.2 (PCIe Gen4 x4), 4× SATA3
- Video outputs
- HDMI, DisplayPort
- Audio
- Realtek ALC897, 7.1 CH HD, Nahimic
- Network
- Realtek 1G LAN
- Wireless
- Wi‑Fi 6E (802.11ax) + Bluetooth
- USB (rear)

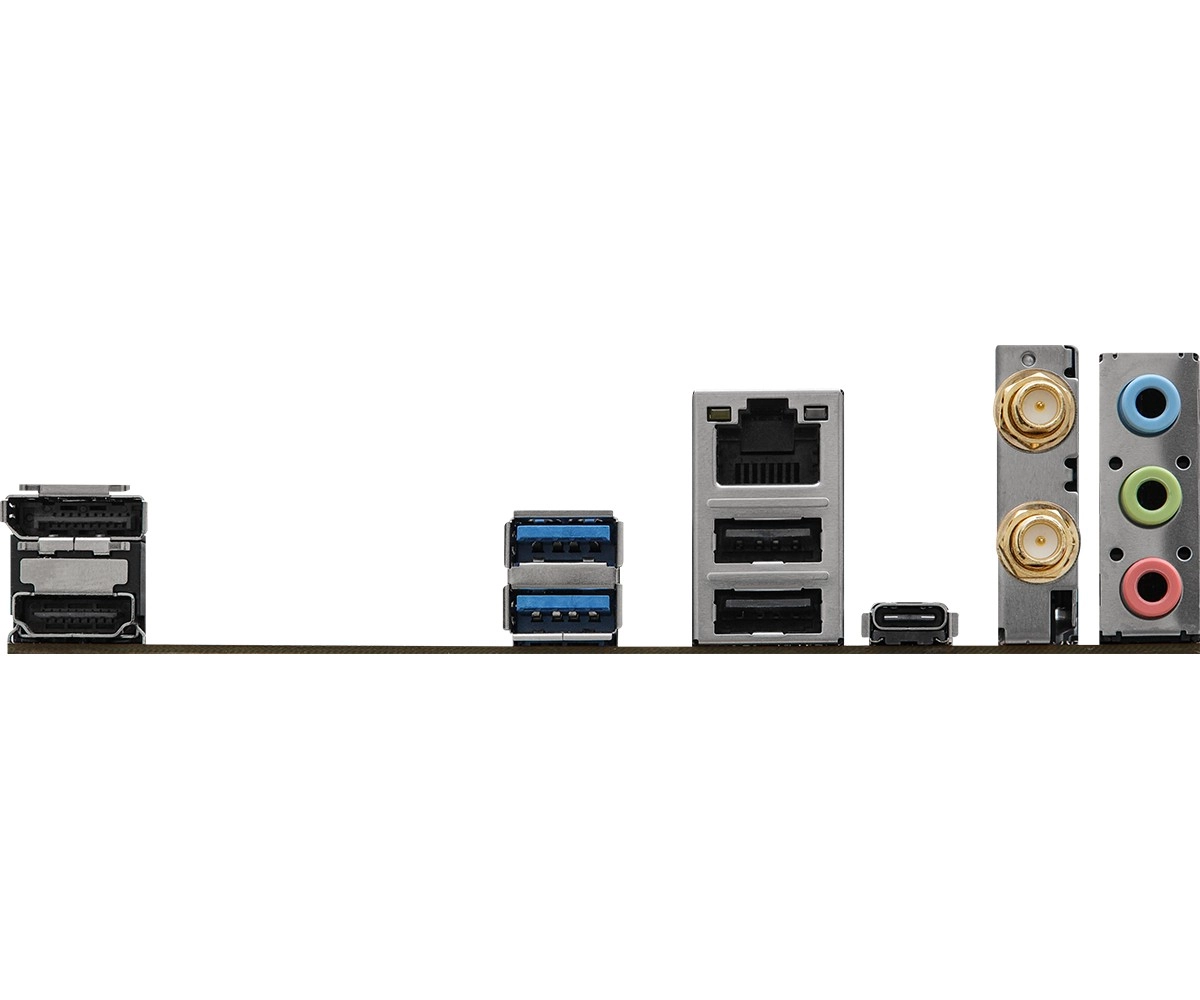

- 1× USB 3.2 Gen2x2 Type‑C, 2× USB 3.2 Gen1, 2× USB 2.0
- USB (via headers)
- 2× USB 3.2 Gen1 (front), 4× USB 2.0 (front)
- Special features
- Nahimic Audio, Sound Tracker, noise suppression, ASRock Auto Driver Installer
- PCB construction
- 6 layers
