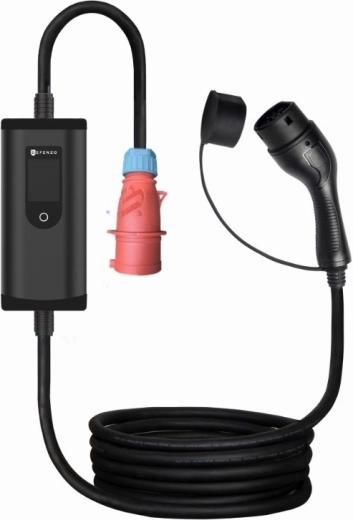

Compact and durable Defenzo ToGo charger is the perfect companion for every trip. This reliable AC charger is designed for electric vehicles with adjustable maximum power output.

Equipped with the most popular Type 2 connector, it is compatible with most electric and hybrid vehicles. It features a display that lets you monitor power, charging time, and energy consumed. Its robust body withstands loads up to 2 tons, while the IP65 protection rating guarantees resistance to dust and splashing water.

The charger is easy to use; simply plug it into the mains and connect it to the vehicle. Charging starts automatically. The device allows you to limit the maximum power, which helps manage energy consumption alongside other appliances.

The intelligent protection system with a residual current device (AC11) ensures safety against:

Overvoltage
Overheating
Overload
DC residual current backflow
Insufficient grounding

Technical specifications

Model: Defenzo ToGo AC11
Operating voltage: 3-phase; 380–440 V
Rated power: 11 kW
Voltage frequency: 50/60 Hz
Protection class: IP65
Mechanical lifespan: 10,000 cycles
Mechanical durability: drop from 1 meter and vehicle load of 2 tons.
Insulation resistance: > 100 MΩ (DC 500 V)
Operating voltage range: 190 V for single phase; 330 V for three phase
Temperature protection: -30°C to +50°C
Operating humidity: 5% to 95% RH, non-condensing
Operating temperature: -30°C to +50°C
Display parameters: charging voltage, charging current, charging time, charging power, charged energy amount, error codes.
Control unit dimensions: L 220 W 100 H 60 mm
