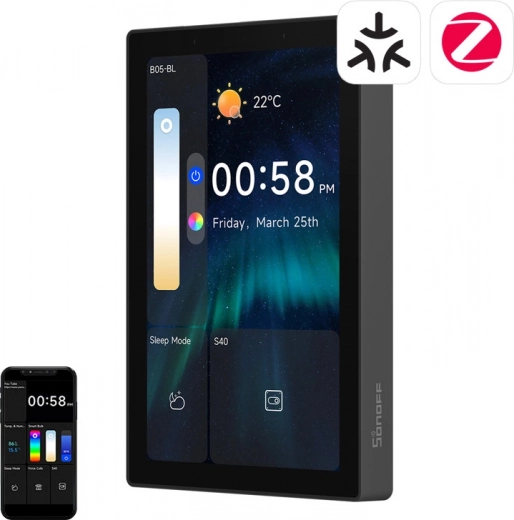

SONOFF NSPanel Pro 120 smart control panel with Matter, Wi‑Fi, Bluetooth and Zigbee – black
SONOFF NSPanel Pro 120 smart control panel with Matter, Wi‑Fi, Bluetooth and Zigbee – black
All‑in‑one: Matter + Zigbee 3.0 hub
Add and manage devices across brands in a single panel. NSPanel Pro 120 works as a Zigbee 3.0 gateway and a Matter controller – extend network range and stability and unify your automations.
Security modes and live cameras
Away, Home, and Sleep modes tailor monitoring to your situation. Motion or door‑open alerts, live camera previews, and two‑way communication via the built‑in microphone and speaker.
Clear 4.7" touch display
Bright TFT LCD 750 × 1334 px, up to 16.7 million colors, and ICC automatic brightness control. Two home screen styles, optional wallpapers, and customizable widgets for quick control.
SONOFF NSPanel Pro 120 is a powerful wall‑mounted panel that unifies control of your entire smart home. It offers quick scenes, clear widgets, security modes, and compatibility with many ecosystems thanks to Zigbee 3.0 and Matter. The 4.7" display with fine 750 × 1334 px resolution and automatic brightness ensures great readability day and night.
The built‑in microphone and speaker enable two‑way communication and intercom between panels or via the eWeLink app. The panel works with temperature and humidity sensors, supports camera viewing, monitors energy consumption of connected devices, and opens frequently used pages quickly via web bookmarks.
Why you’ll love it:
- Wide compatibility thanks to Matter and Zigbee 3.0
- Security modes (Away/Home/Sleep) with notifications and live camera preview
- Smart heating/cooling with sensor‑based automations
- Fast performance with quad‑core ARM Cortex‑A35 and 2 GB RAM
- Customizable UI – wallpapers, widgets, two home screen styles
Specifications
- Manufacturer
- SONOFF
- Model
- NSPanel120PB
- Display
- 4.7" TFT LCD
- Resolution
- 750 × 1334 px
- Processor
- Quad‑core ARM Cortex‑A35
- Graphics processor
- Mali G31‑2EE
- Memory
- 2 GB DDR3 RAM
- Storage
- 8 GB eMMC 5.1
- Wireless connectivity
- Wi‑Fi IEEE 802.11 b/g/n 2.4 GHz, Zigbee 3.0, Bluetooth
- Standards support
- Matter
- Power supply
- 100–240 V~ 50/60 Hz, 0.15 A max
- Operating temperature
- 0 °C to 40 °C
- Operating humidity
- 5% to 90% RH, non‑condensing
- Enclosure material
- PC V0 + CRS + tempered glass
- Dimensions
- 122.5 × 74.5 × 39.5 mm
- Features
- Built‑in Zigbee hub, Matter controller, voice calls/intercom, security modes, camera support, energy consumption monitoring, web bookmarks
- Certifications
- CE / FCC / ISED / RoHS
