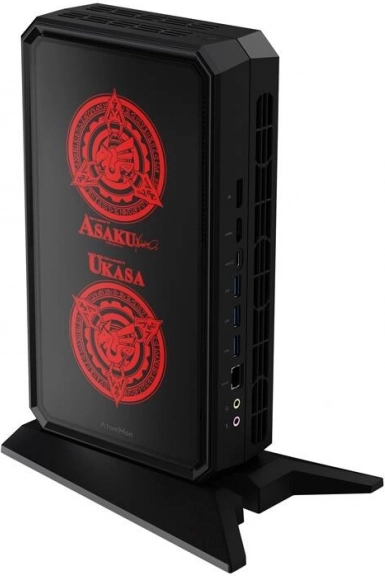

MINISFORUM Mini PC with Ryzen 9 7945HX (Barebone)
MINISFORUM Mini PC with Ryzen 9 7945HX (Barebone)
Top-tier performance with AMD Ryzen 9 7945HX
16 cores and 32 threads with boost up to 5.4 GHz deliver smooth operation even in the most demanding games and applications. TSMC 5 nm process and Zen 4 architecture ensure excellent efficiency.
Flexible memory and storage: DDR5 + PCIe 5.0
Install up to 64 GB DDR5 5200 and two M.2 2280 SSDs (PCIe 5.0 + 4.0) with capacity up to 4 TB. Enjoy lightning-fast boot times, quick game loads, and rapid data transfers.
Next-gen connectivity and abundant ports
Wi‑Fi 7, Bluetooth 5.4, and 2.5G LAN for maximum speed. HDMI 2.1, DP 2.0, USB‑C, and audio jacks cover multi‑monitor workflows and gaming peripherals.
Looking for maximum performance in a minimal footprint? This mini PC with an AMD Ryzen 9 7945HX processor (16 cores/32 threads, up to 5.4 GHz, 5 nm) handles modern gaming, content creation, and heavy multitasking with ease. The Zen 4 architecture delivers an excellent balance of performance and efficiency, giving you snappy response even under load.
Configure the system exactly the way you want: DDR5 5200 up to 64 GB for instant responsiveness and two M.2 2280 slots — PCIe 5.0 and PCIe 4.0 — supporting up to 4 TB of storage. The integrated AMD Radeon 610M graphics ensure smooth multimedia work and light gaming; for high-FPS gaming we recommend pairing with a powerful external GPU or using cloud gaming.
Next-generation connectivity keeps you in the game and at work: Wi‑Fi 7 and Bluetooth 5.4 (M.2 2230), wired 2.5G LAN, and a wide range of ports including HDMI 2.1, DP 2.0, USB‑C, and audio. The Cold Wave Ultra cooling system with 8 heatpipes and 4 fans keeps temperatures in check for stable and quiet operation.
• powerful 16‑core CPU for gaming and content creation
• fast DDR5 and PCIe 5.0/4.0 storage
• modern wireless and 2.5G Ethernet, rich I/O
• barebone: no RAM, SSD, or OS — freedom to choose components
Specifications
- Manufacturer
- Minisforum
- Model
- G7 PT
- Processor
- AMD Ryzen 9 7945HX
- Architecture
- Zen 4
- Number of cores
- 16
- Number of threads
- 32
- Base clock
- 2.5 GHz
- Max boost clock
- 5.4 GHz
- Process technology
- TSMC 5 nm FinFET
- Memory type
- DDR5
- Installed memory
- 0 (no RAM — barebone)
- RAM frequency
- 5200 MHz
- Max RAM capacity
- 64 GB
- SSD slots
- M.2 2280 PCIe 5.0 ×1; M.2 2280 PCIe 4.0 ×1
- Installed storage
- 0 (no SSD — barebone)
- Max storage capacity
- 4 TB
- Graphics
- AMD Radeon 610M (integrated)
- Wireless connectivity
- M.2 2230 with Wi‑Fi 7 and Bluetooth 5.4 support

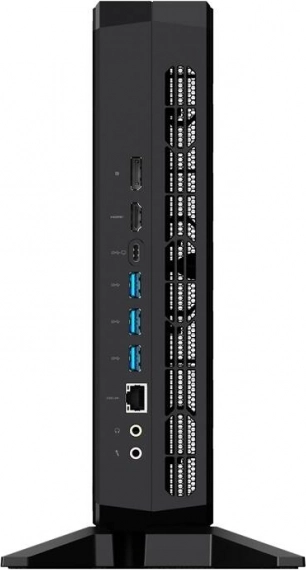

- Ports
- RJ45 2.5G Ethernet ×1; DP 2.0 ×1; HDMI 2.1 ×1; USB 3.2 Gen2 Type‑C (Alt Mode + DP) ×1; USB 3.2 Gen2 Type‑C (data) ×1; USB 3.2 Gen2 Type‑A ×4; 3.5 mm combo jack ×1; performance switch ×1; line‑out ×1; microphone ×1
- Operating system
- None (no OS)
- Cooling system
- Cold Wave Ultra (8 heatpipes, 4 fans)
- Mounting
- Desktop
- Power
- 19 V / 15 A
