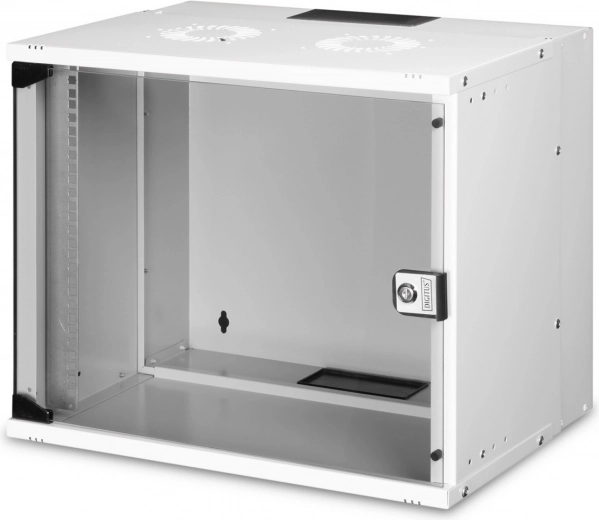

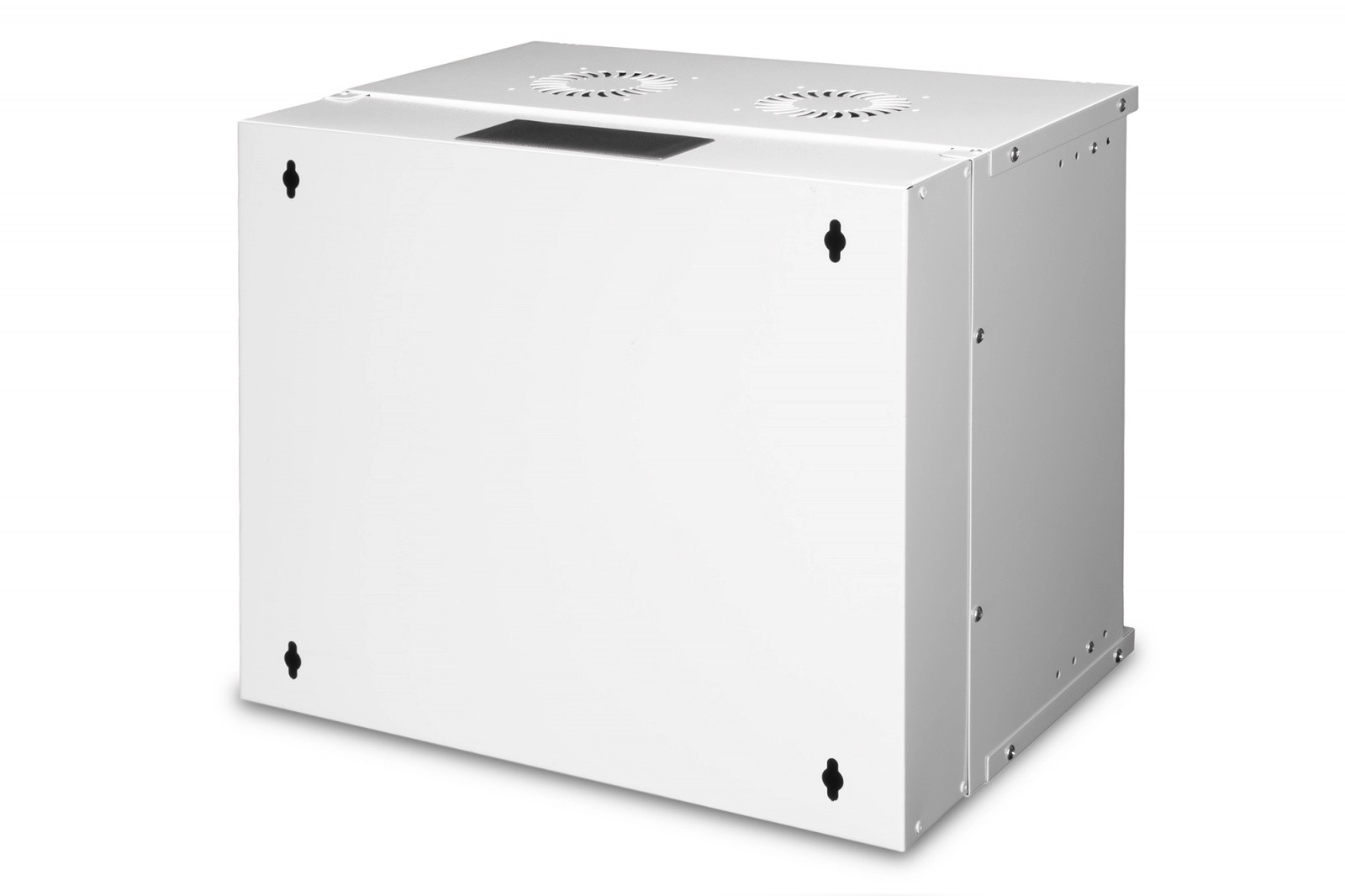

The compact DIGITUS SOHO PRO 19" 9U wall-mount rack cabinet is ideal for small IT and telecom installations. It offers a solid steel construction, glass front door, adjustable depth 19" rails, and easy installation in a few steps. Practical cable entries at the top and bottom and ventilation openings ensure tidy cable routing and optimal airflow.
The DIGITUS SOHO PRO 19" wall cabinet with a height of 9U is designed for secure and organized storage of active and passive network components in smaller installations, home offices, and SOHO environments. The robust steel body made of sheet metal up to 1.5 mm thick and the glass front door with single-point locking protect the equipment while allowing quick visual checks.

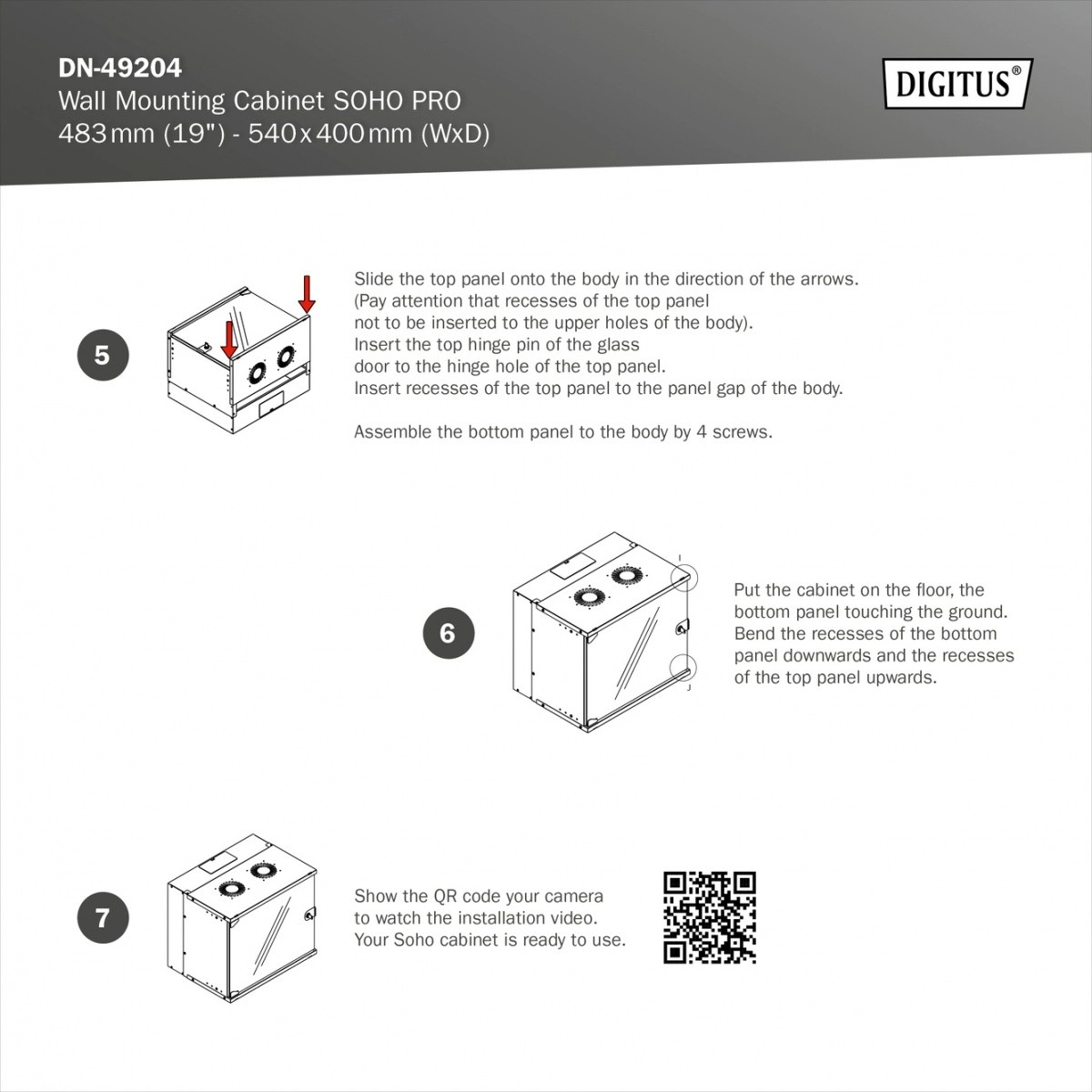

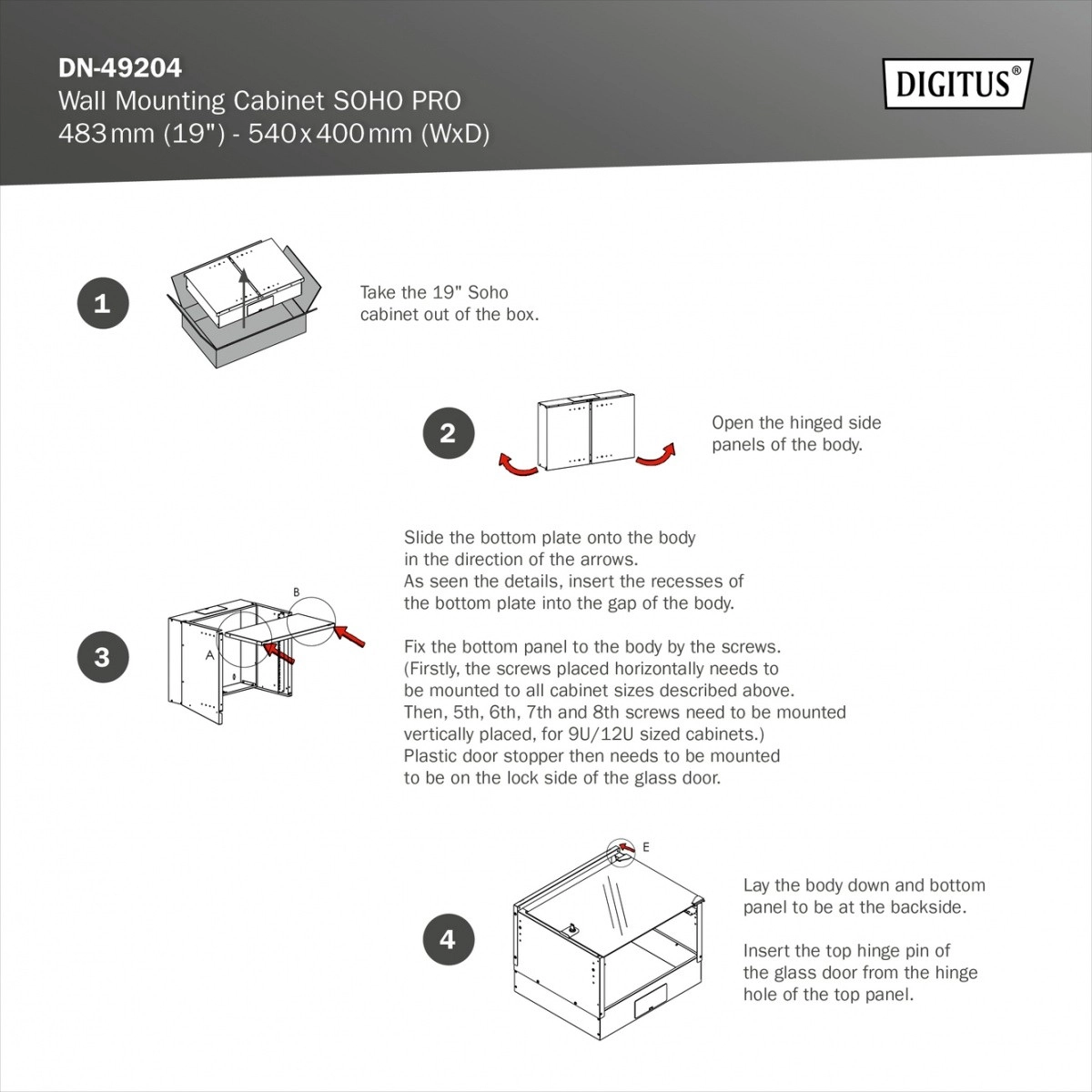

The cabinet is supplied flat-packed to save space and shipping costs. With the clear manual, installation is quick and can be completed in a few steps. The front 19" rails (483 mm) are galvanized and their depth is continuously adjustable for precise device positioning. The top brush-lined cable entry and the bottom plastic grommet facilitate clean cable management, while the ventilation perforation supports both active and passive cooling.

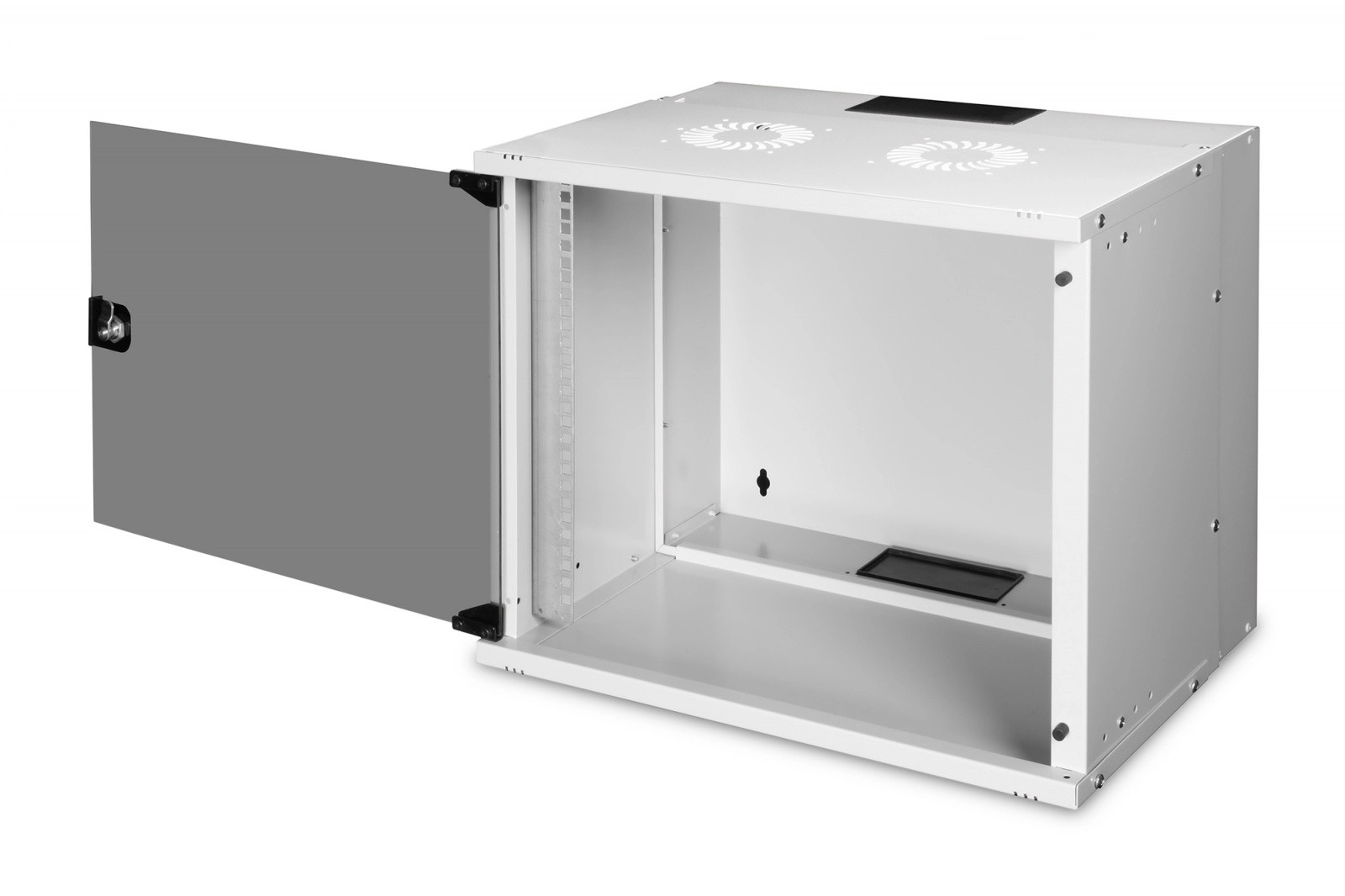

- Glass front door with an opening angle up to 200°
- Reversible hinges for flexible installation

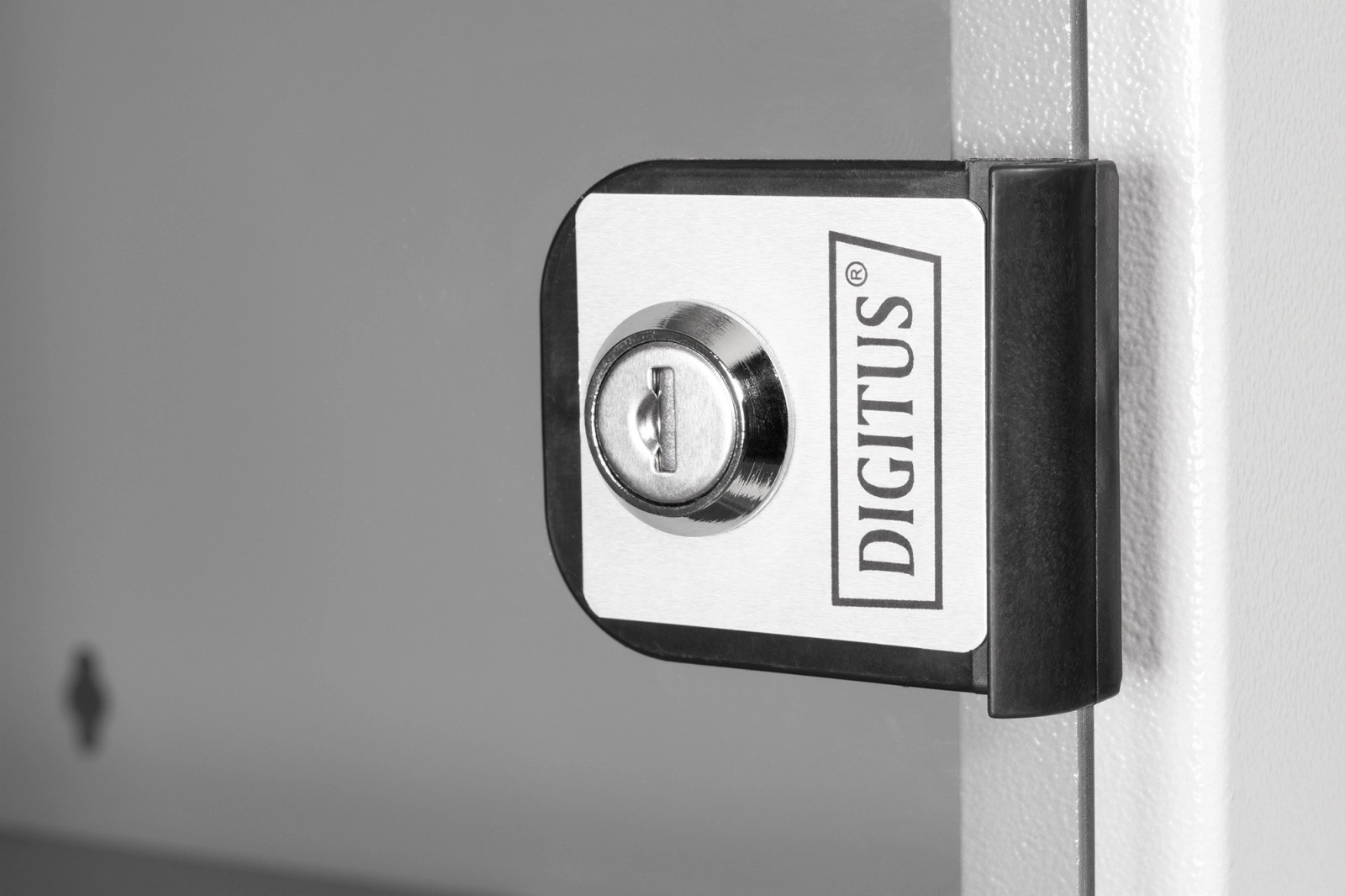

- Single-point lock for quick access

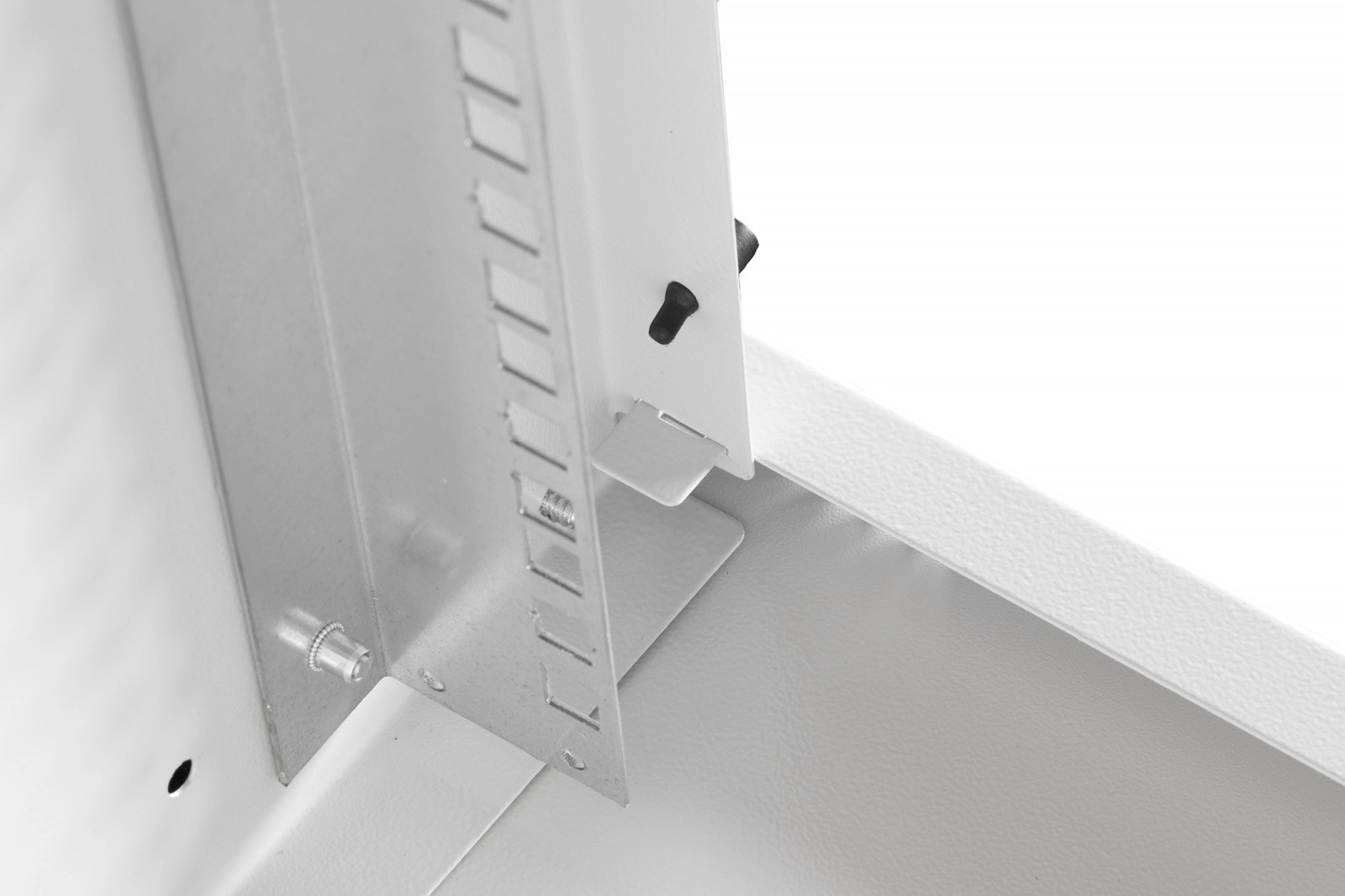

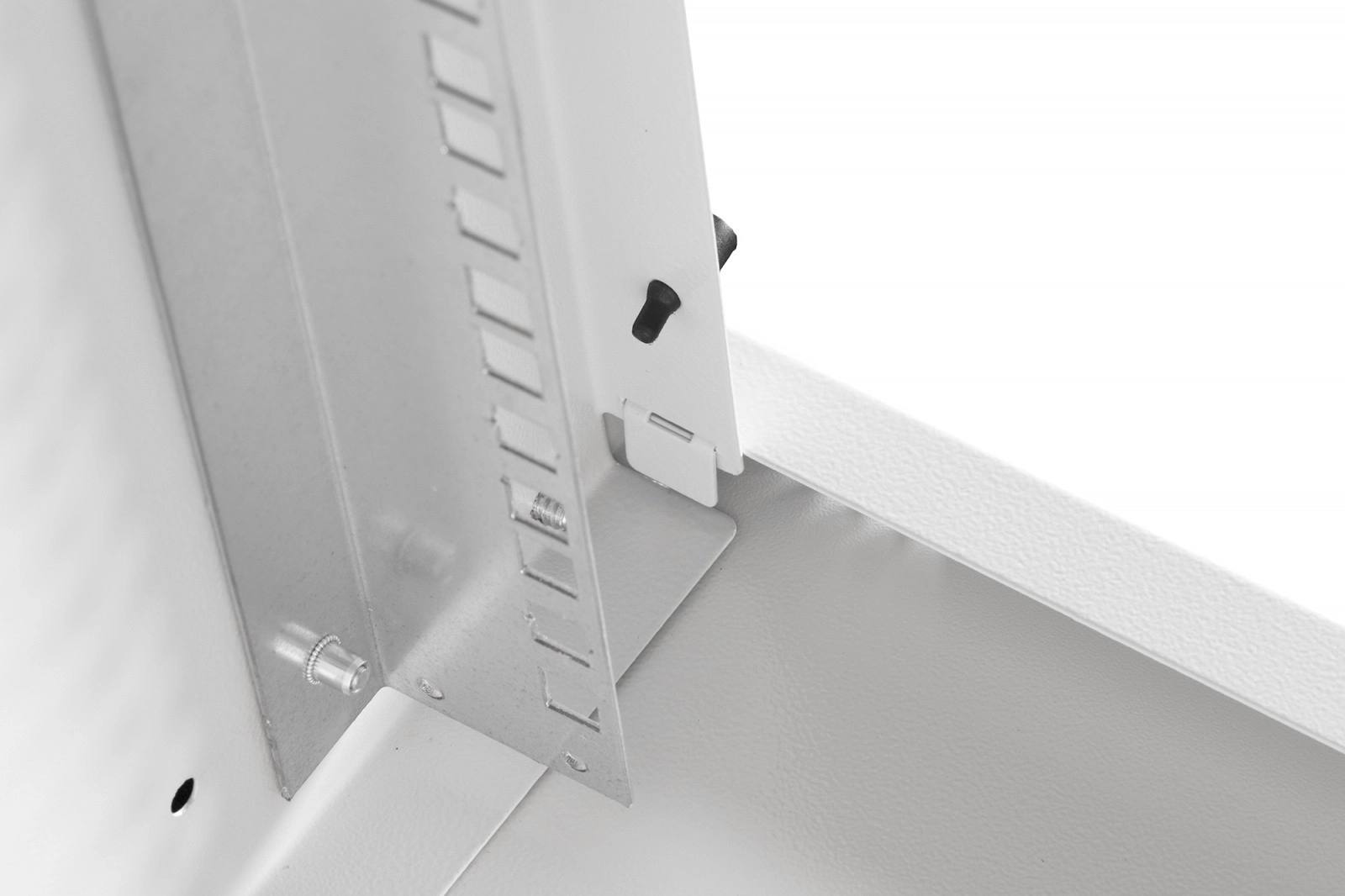

- Front 19" rails, galvanized, with adjustable depth

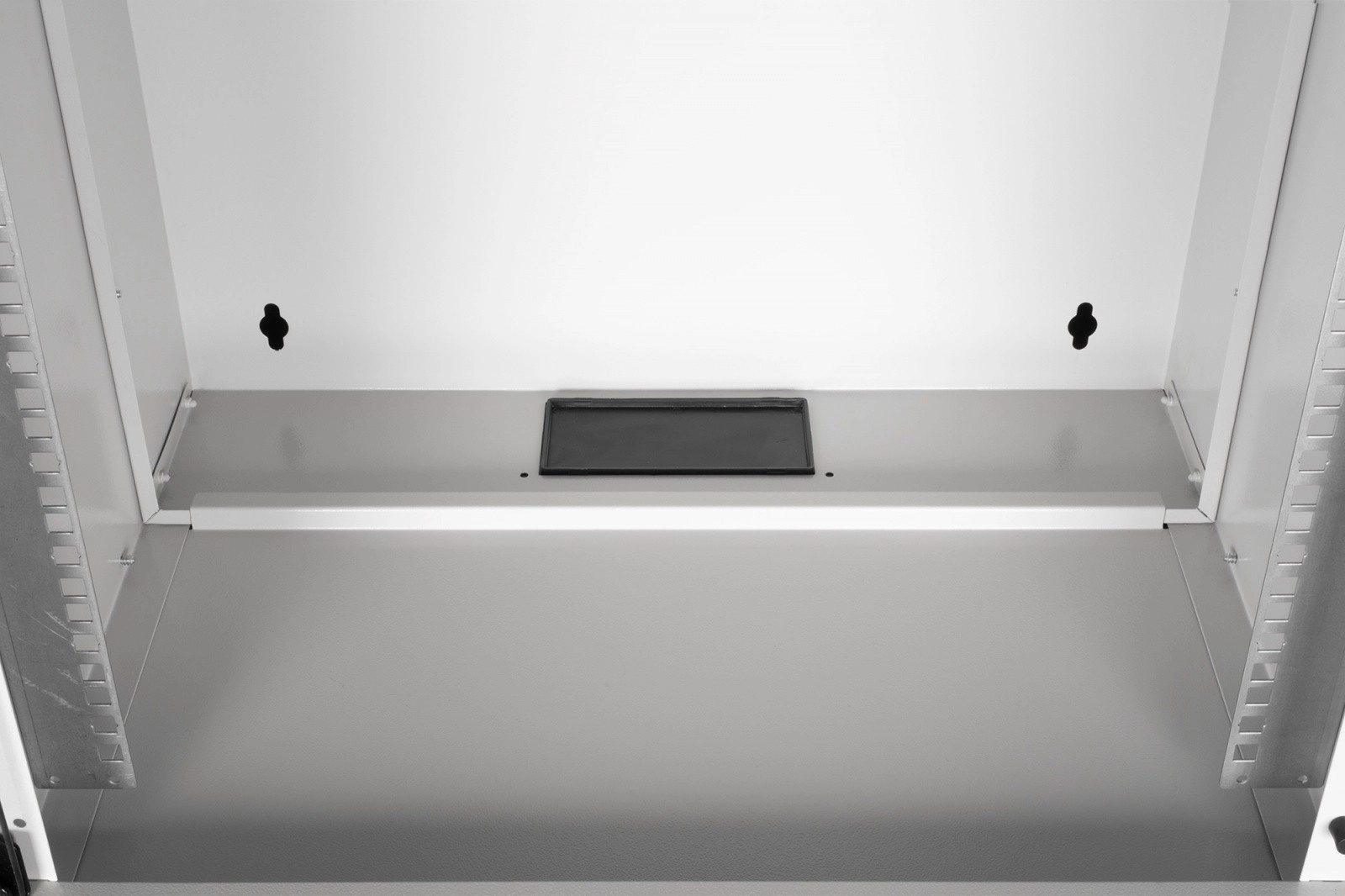

- Cable entries at the top (brush strip) and bottom (plastic cover)

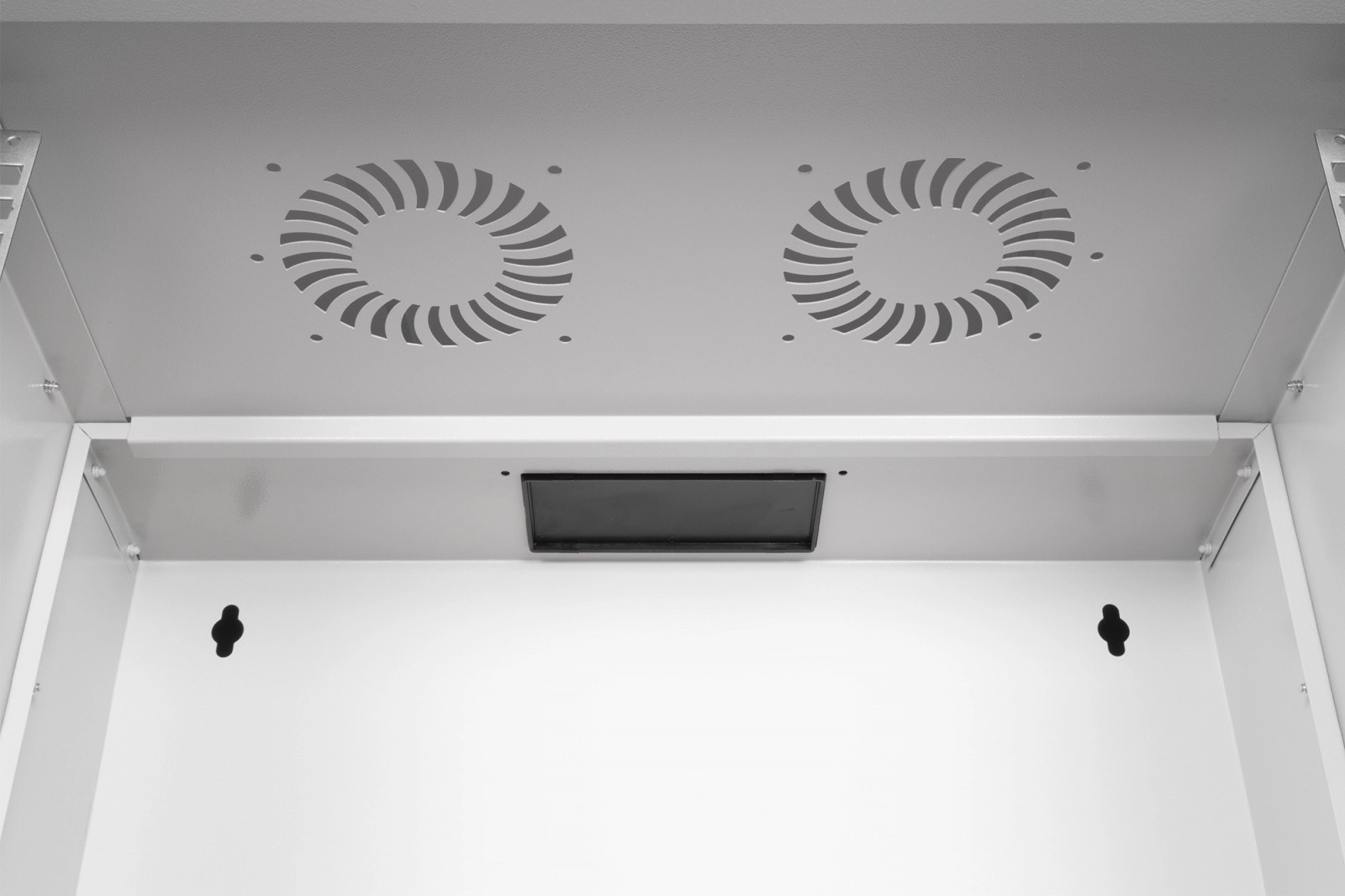

- Ventilation openings for improved airflow
- Side panels on both sides
- Robust steel with powder-coated finish
- Delivered flat-packed for easy transport and assembly
Specifications
- Cabinet type
- SOHO PRO 19" wall-mount rack cabinet
- Height
- 9U
- Dimensions (H × D × W)
- 460 × 540 × 400 mm
- Load capacity
- 60 kg
- Front door
- Glass, single-leaf, opening angle approx. 200°
- Door lock
- Single-point locking
- Material
- Steel sheet 1.1–1.5 mm, powder-coated
- 19" rails
- 483 mm (19"), front, galvanized, with adjustable depth
- Cable entries
- Top with brush strip, bottom with plastic cover
- Ventilation
- Perforations for passive and active airflow
- Side panels
- On both sides
- Door reversal option
- Yes, hinge side can be changed
- Delivery state
- Unassembled (flat pack)
- Installation
- Quick step-by-step installation
- Color
- Grey
- Mounting location
- Wall
