Universal 4M floor box for installing up to 4 devices 45×45 mm or 8 adapters 22.5×45 mm. Ideal for modern offices and commercial spaces where a clean look and quick access to media are important. Offers adjustable depth, installation in raised (technical) floors, and the option for adaptation to poured floors. The cover can be overlaid with floor covering up to 8 mm, and the pair of cable outlets with foam sealing protects the interior from dust.

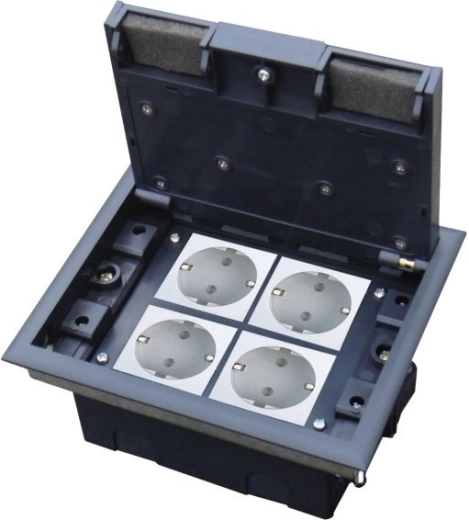

The 4M floor box is a solution for discreet connection of electrical and data sockets in the middle of a room. It enables tidy cable management and convenient access to power and network away from walls. The box is unfitted (illustrative photo), so you can customize the outfitting to your needs.
Thanks to its adjustable depth and dedicated mounting system, it is suitable for raised (technical) floors with limited build height and can be adjusted for poured screed using adjustable cassettes. The cover with two outlets can be finished with the same floor material (up to 8 mm), and the foam sealing minimizes dust ingress.
Main advantages:
- up to 4 modules 45×45 mm or 8 adapters 22.5×45 mm
- secure fastening and precise positioning in the floor
- pre-weakened knockouts for cable entry via floor duct or conduit
- cover with dual cable exit and dust protection
- available colors: grey and graphite
Specifications
- Modular capacity
- 4× 45×45 mm or 8× 22.5×45 mm
- Device orientation
- Horizontal mounting
- Installation
- Raised (technical) floor; option to adapt to poured floor with adjustable cassettes
- Cable management
- Knockouts for entry via underfloor duct or conduit
- Cover
- Option to insert floor material up to 8 mm thick; two cable outlets with foam sealing
- Material – body
- Plastic
- Material – housing
- Plastic
- Material – socket modules
- Plastic
- Ingress protection
- IP40
- Impact resistance
- IK08
- Height
- 142 mm
- Width
- 169 mm
- Depth
- Adjustable 76–110 mm
- Color
- Grey, graphite
- Equipment
- Supplied without installed devices (unfitted)
