18+1+1+1+1 phases with 80 A SPS for VCore+GT+SA ensure stability under heavy load, streaming, and overclocking.
One Blazing M.2 (PCIe Gen5 x4) and three Hyper M.2 (PCIe Gen4 x4/SATA) along with PCIe 5.0 x16 for the latest GPUs.
Dual Thunderbolt 4 Type‑C, Wi‑Fi 7 + Bluetooth, 2.5G LAN, and rich USB I/O for fast workflows and streaming.

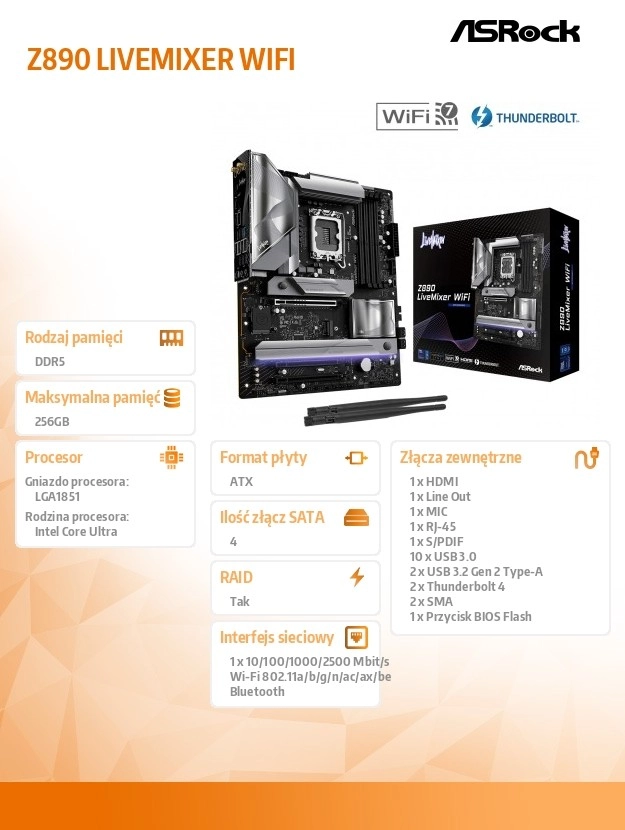

The LiveMixer series is designed for modern creators. The ASRock Z890 LiveMixer WiFi combines a robust 18+1+1+1+1 power stage (80 A SPS for VCore+GT+SA) with cutting-edge expansion: PCIe 5.0 x16 for the latest graphics cards, three M.2 slots including Blazing M.2 PCIe Gen5 x4, and a pair of Thunderbolt 4 Type‑C for ultra‑fast peripheral and display connectivity.
With support for DDR5 Dual Channel at extreme frequencies (up to 9066+ OC), Wi‑Fi 7 (802.11be) + Bluetooth, 2.5G LAN, and abundant USB (including USB 3.2 Gen2x2 front Type‑C), this board is ideal for streamers, editing rigs, and gaming builds. Realtek ALC1220 7.1CH with Nahimic Audio delivers clear and immersive sound.
For reliability, you get features like BIOS Flashback, Memory OC Shield, and high‑quality 20K 1000 μF capacitors. The rear I/O offers a wide range of ports including Thunderbolt 4, HDMI, and numerous USB for maximum flexibility.
