The Monolith 24 V / 10 A smart charger provides safe and efficient charging for LiFePO4, AGM, GEL, SLA, flooded and calcium batteries. The three-stage BULK, BOOST and FLOAT process automatically adapts charging to the battery's condition and helps extend its service life.
Smart three-stage charging
The automatic BULK, BOOST and FLOAT cycle adjusts the voltage and current according to the battery's current condition. It helps ensure efficient, complete and gentle charging without unnecessary energy losses.
Settings for multiple battery types
The DIP switch provides 7 setting combinations for 24 V LiFePO4, AGM, GEL, SLA, flooded and calcium batteries. A constant-voltage power supply mode is also available.
Durable construction and protective functions
The aluminium housing, active fan, LED indicators and integrated fuse support reliable operation. The charger is protected against short circuits, reverse polarity, overvoltage, overcurrent, undervoltage and overheating.
The Monolith battery charger is a reliable solution for regular charging of 24 V batteries. The smart system operates in three stages: BULK detects the battery condition and charges it with the maximum current to approximately 80% capacity, BOOST maintains the absorption charging voltage within the range of 28.4–30 V DC, and FLOAT completes charging and then maintains the battery. After the battery is fully charged, the current automatically drops to 0 A and the device switches to sleep mode.

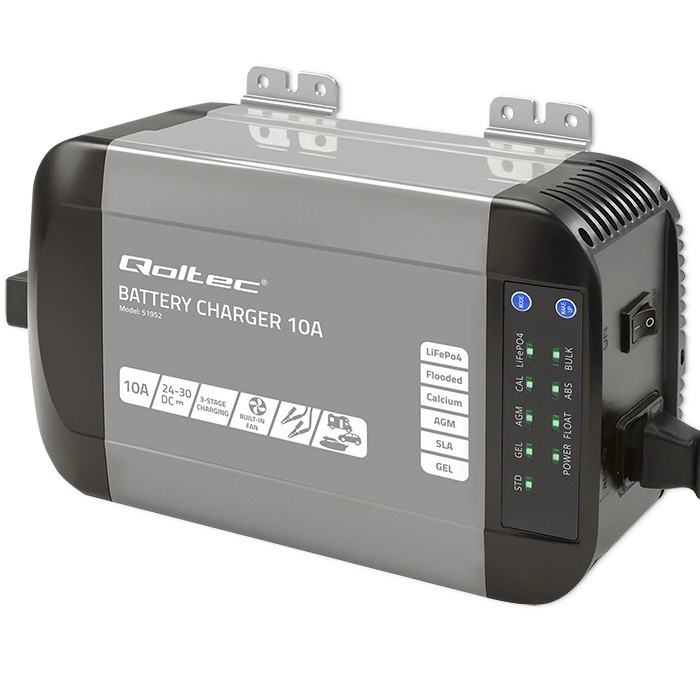

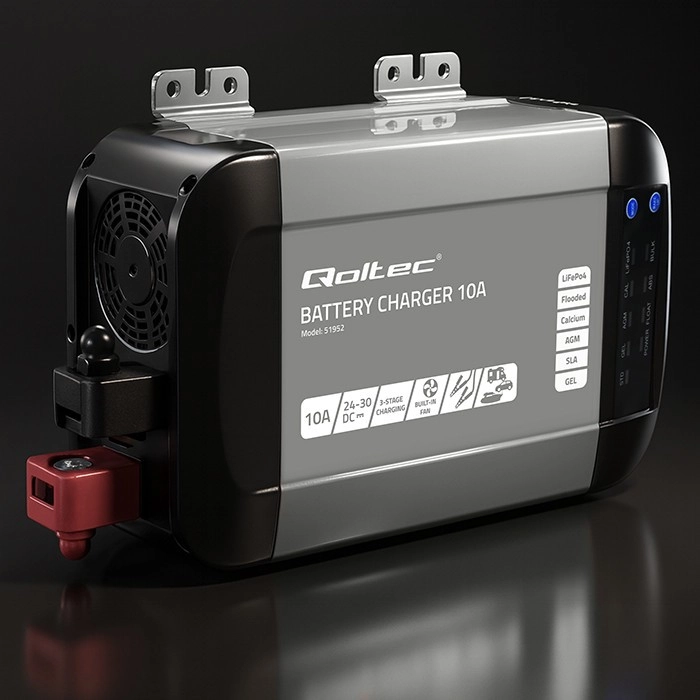

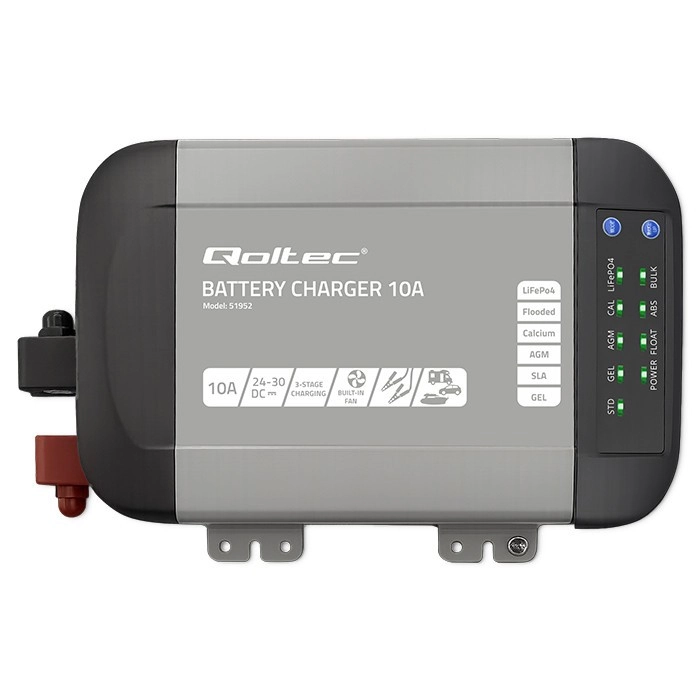

Using the integrated DIP switch, you can select one of 7 setting combinations for a specific battery type or the constant-voltage power supply mode. LED indicators clearly show the current status and charging phase. The durable aluminium body supports efficient heat dissipation, while the built-in active cooling switches on automatically during charging.
Main advantages:
- smart three-stage charging for even and gentle energy replenishment,

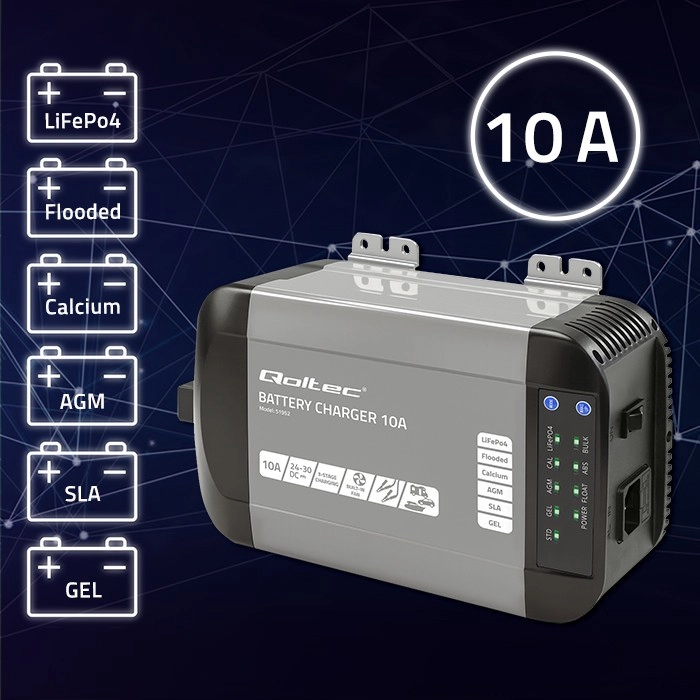

- compatibility with LiFePO4, AGM, GEL, SLA, flooded and calcium batteries,
- 7 adjustable modes via the DIP switch,
- LED charging process indication, active cooling and an integrated fuse,
- protection against short circuits, reverse polarity, overcharging, overvoltage, overcurrent, undervoltage and overheating,
- galvanically isolated input and output for increased operational safety.
Specifications
- Product type
- Smart battery charger
- Battery charging voltage
- 24 V
- Charging current
- 10 A
- Compatible battery types
- LiFePO4, AGM, GEL, SLA, flooded and calcium
- Charging mode
- Three-stage: BULK, BOOST, FLOAT
- BOOST phase voltage
- 28.4–30 V DC
- FLOAT phase voltage
- 26.6–27.6 V DC
- Mode settings
- DIP switch, 7 SW combinations
- Power supply mode
- Constant-voltage power supply
- Indication
- LED indication of status and charging phase
- Cooling

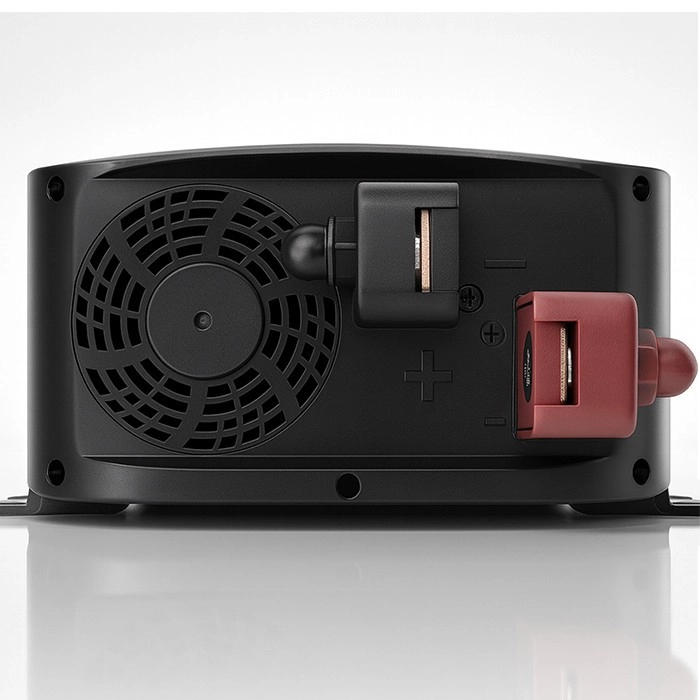

- Built-in active cooling
- Housing
- Aluminium
- Protection

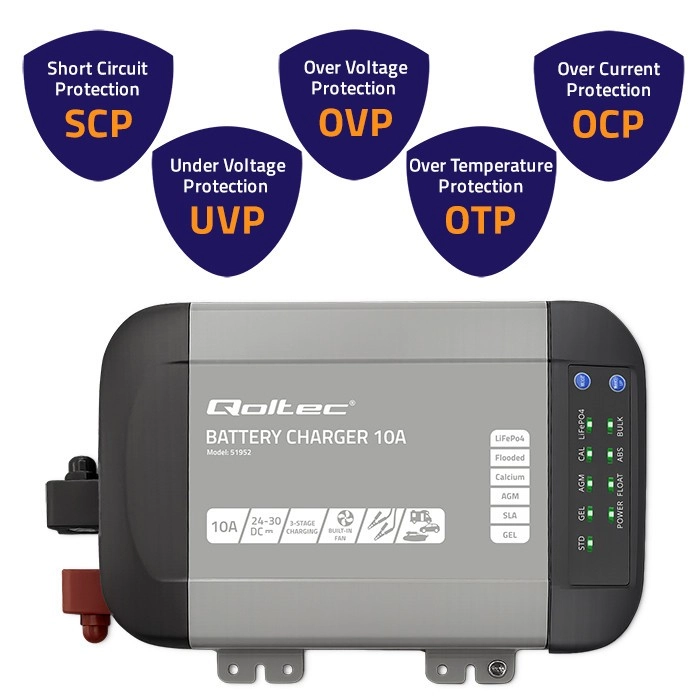

- UVP against undervoltage, SCP against short circuits, OVP against overvoltage, OCP against overcurrent, OTP against overheating, reverse-polarity and overcharge protection
- Safety
- Galvanically isolated input and output

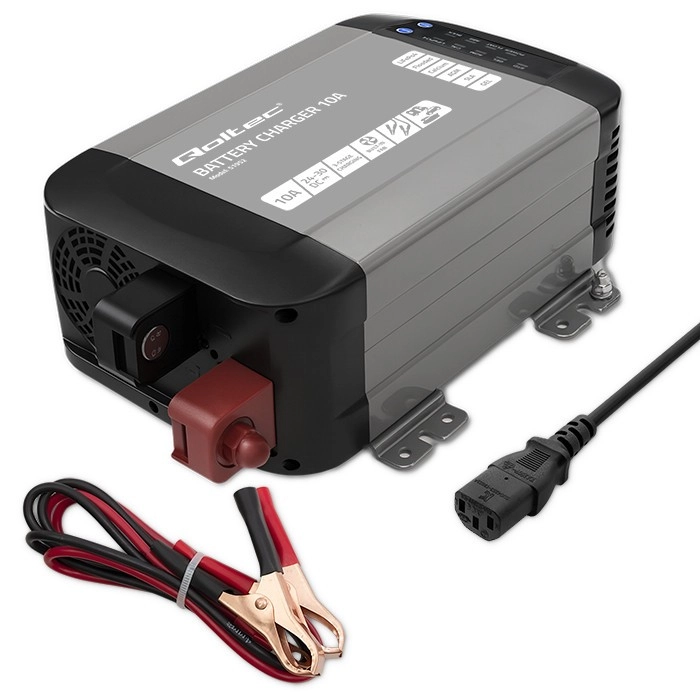

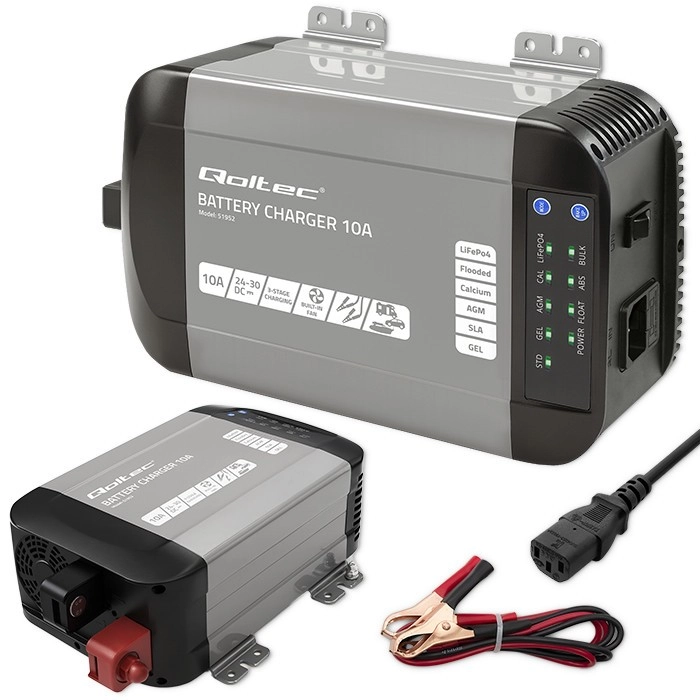

- Package contents

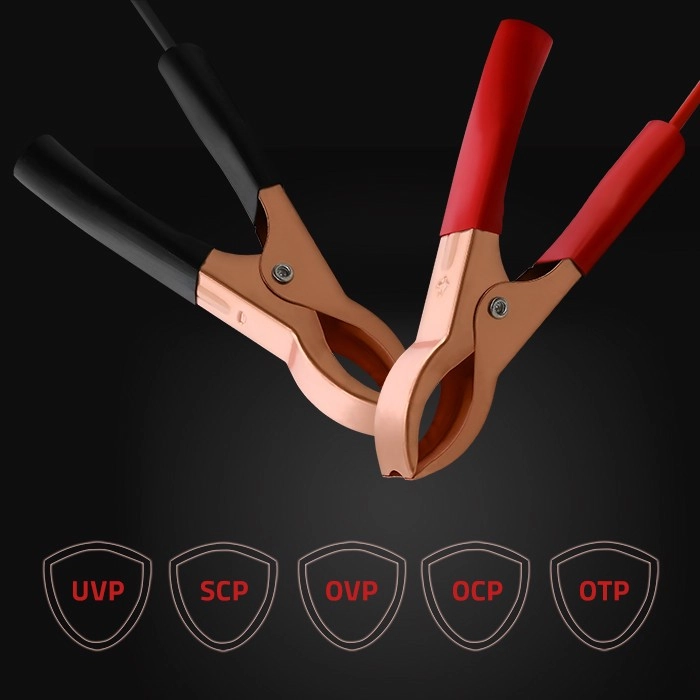

- Charger, necessary cabling and spare fuse
