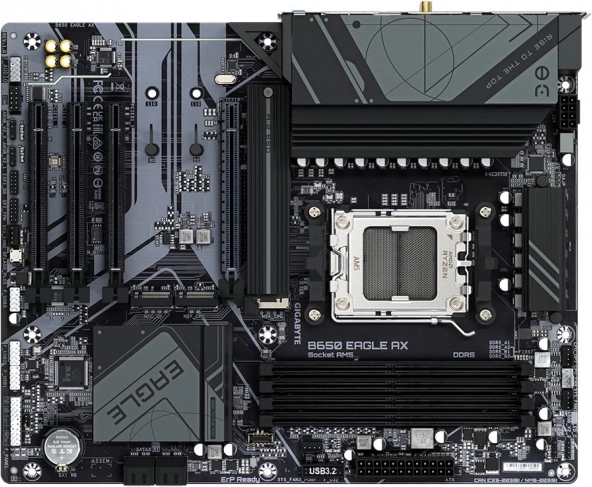

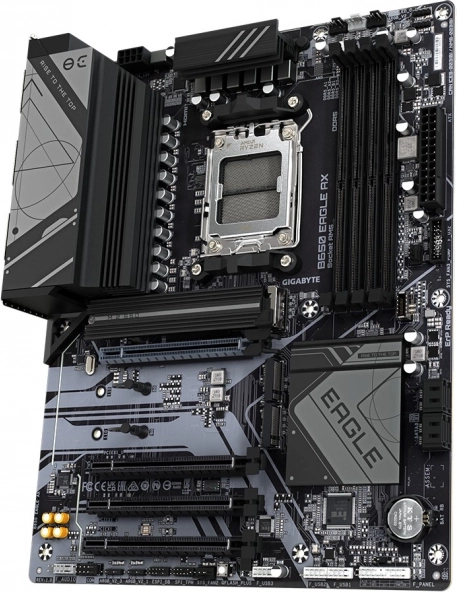

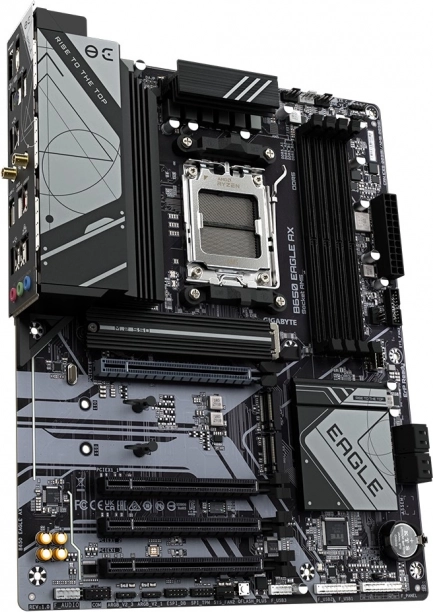

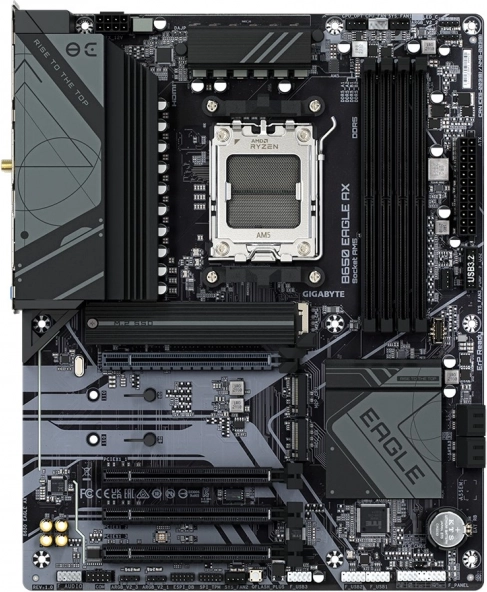

Gigabyte B650 Eagle AX – AM5 ATX motherboard with DDR5, HDMI and DisplayPort
Gigabyte B650 Eagle AX – AM5 ATX motherboard with DDR5, HDMI and DisplayPort
Robust 12+2+2 VRM power delivery for stable performance
The digital VRM with high-quality components ensures stability under heavy load and overclocking so your build delivers consistent performance.
Fast PCIe 5.0/4.0 M.2 storage
One PCIe 5.0 M.2 and two PCIe 4.0 M.2 slots provide maximum speeds for your OS drive and game library, complemented by M.2 Thermal Guard.
Modern connectivity: HDMI, DP, USB, and networking

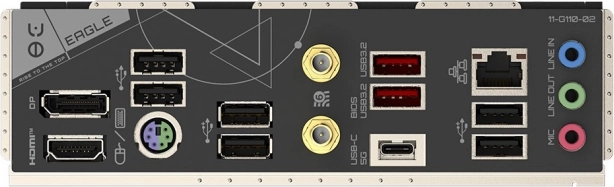

The rear I/O offers DisplayPort, HDMI, 10 Gb/s USB, GbE LAN, and Wi‑Fi 6E wireless for fast and flexible use.
Build a high-performance PC with the Gigabyte B650 Eagle AX, ready for AMD Ryzen 7000 processors on the AM5 socket. The robust 12+2+2 digital VRM ensures stability in demanding tasks and overclocking, while four DDR5 slots with EXPO/XMP support let you get the most from modern memory.
For blazing-fast storage, the board provides a combination of 1× PCIe 5.0 M.2 and 2× PCIe 4.0 M.2 with advanced cooling including M.2 Thermal Guard. You also get Wi‑Fi 6E (802.11ax) and GbE LAN for speedy connectivity, a rear panel with HDMI, DisplayPort, and 10 Gb/s USB, plus handy features like EZ-Latch for quick PCIe x16 release and Q-Flash Plus for BIOS updates without CPU, RAM, or GPU.
Key benefits:
- Powerful 12+2+2 VRM for stability and efficiency
- DDR5 dual-channel with EXPO/XMP profiles
- PCIe 5.0/4.0 M.2 storage with quality cooling
- Wi‑Fi 6E, GbE LAN, and rich I/O (DP, HDMI, 10 Gb/s USB)
- Smart Fan 6 with multiple sensors and FAN STOP
Specifications
- Socket
- AMD AM5 (Ryzen 7000)
- Power delivery
- 12+2+2 digital VRM
- Memory
- 4× DDR5 DIMM, dual‑channel, supports AMD EXPO and Intel XMP
- M.2 storage
- 1× M.2 PCIe 5.0, 2× M.2 PCIe 4.0; M.2 Thermal Guard cooling
- Expansion slots
- PCIe x16 with EZ-Latch (quick release)
- Video outputs
- DisplayPort, HDMI (depending on CPU with iGPU)
- Networking
- Wi‑Fi 6E (802.11ax), Gigabit LAN
- USB (rear panel)
- Ports up to 10 Gb/s
- Cooling
- Advanced thermal design, Smart Fan 6, multiple temperature sensors, hybrid headers, FAN STOP
- BIOS features
- Q-Flash Plus (update without CPU, RAM, and GPU)
- Form factor
- ATX
