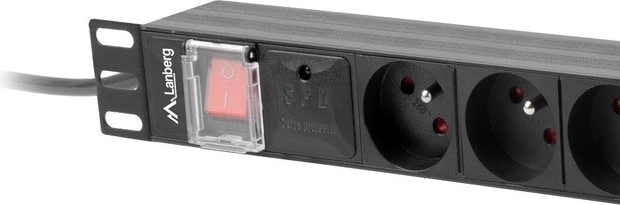

Lanberg 19" 1U rack PDU, 8 Type E outlets, 16 A, black
Lanberg 19" 1U rack PDU, 8 Type E outlets, 16 A, black
19" rack 1U installation with 8 outlets
A robust 1U PDU for horizontal front mounting in 19" cabinets. Removable, rotatable mounting ears simplify installation in various positions and ensure a secure fit.
Safety: surge protection and automatic circuit breaker
Integrated surge protection (3000–5000 A) and an automatic circuit breaker with a green LED protect equipment against spikes and overloads and allow rapid recovery.
Quality power feed and durable materials

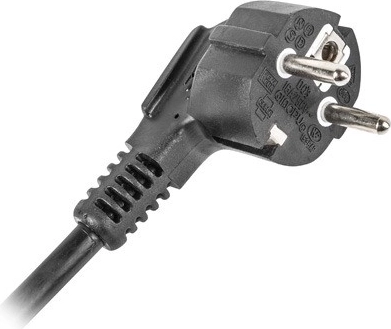

A 3-core 2 m cable with a 1.5 mm² cross-section (VDE) and a 16 A uni-schuko input plug ensure reliable power. Solid brass pins and an aluminum chassis increase longevity.
The Lanberg PDU is a reliable solution for power distribution in 19" server cabinets. The design for 1U horizontal front mounting with removable and rotatable brackets enables universal installation. Eight French outlets (Type E) with contact shutters and brass contacts are built for safe, long-term operation at full load.
Integrated surge protection (3000–5000 A) and an automatic circuit breaker with a green LED indicator protect connected devices against fluctuations and overload. A single-phase input, an oversized 3-core 1.5 mm² cable with a uni-schuko plug (DIN 49441), and a durable aluminum chassis ensure stable power in demanding environments.
- 19" / 1U horizontal rack mounting, removable and rotatable mounting ears
- 8× FR outlets (Type E, NF C 61-314) with contact shutters
- Surge protection 3000–5000 A and an automatic circuit breaker with green LED
- Max. power 4000 W, max. current 16 A
- 2 m power cord, 3×1.5 mm², VDE compliant
- Input uni-schuko plug (16 A), solid brass pins
- Durable aluminum construction, black
Specifications
- Rack height
- 1U
- Voltage range
- 220–250 V
- Frequency
- 50 / 60 Hz
- Maximum power
- 4000 W
- Maximum current
- 16 A
- Fuse / breaker
- automatic, status indicated by green LED
- Surge protection
- 3000–5000 A
- Body material
- aluminum
- Input plug type
- uni-schuko (DIN 49441), 16 A
- Input cable pins
- solid, brass
- Output outlets
- 8× French (Type E, NF C 61-314)
- Outlet contacts
- solid, brass
- Power cord
- 2 m, 3-core, cross-section 1.5 mm², VDE compliant
- Mounting
- horizontal front into 19" rack, removable/rotatable mounting ears
- Power input
- single-phase
- Overload protection
- yes
- Contact shutters
- yes
- Color
- black
