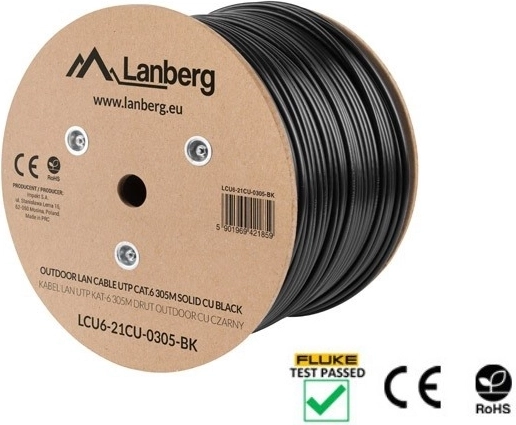

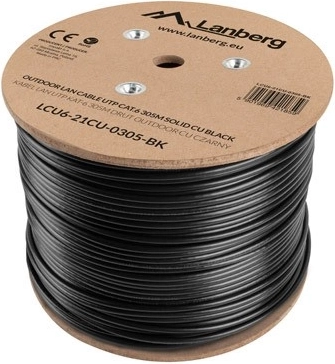

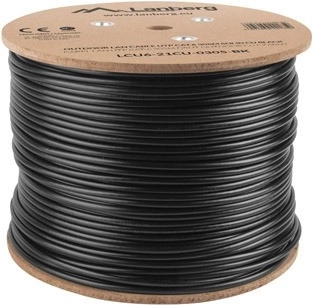

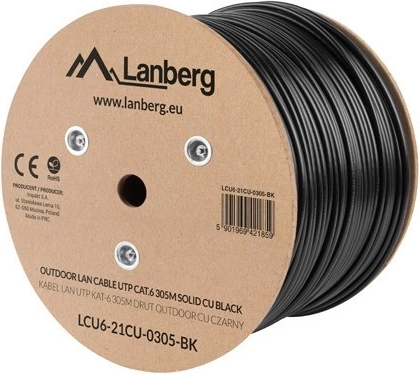

outdoor UTP Cat6 CU network cable 305 m – black
outdoor UTP Cat6 CU network cable 305 m – black

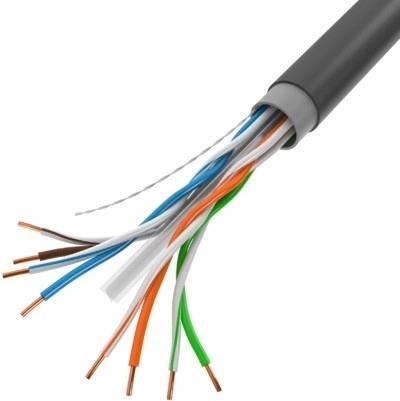

Solid copper conductors for maximum reliability
100% copper cores (AWG 23, solid) ensure low resistance and stable transmission even over longer runs up to 100 m.
Outdoor design with durable PE jacket
The black PE jacket (RAL9004) protects the cable against moisture and mechanical damage, ideal for outdoor installations.
Easy installation thanks to meter markings
Length print every meter speeds up measuring, cutting, and record-keeping. Supplied in a cardboard box for smooth payout.
This outdoor Category 6 UTP network cable is designed for long-term reliable connectivity in demanding conditions. Solid copper conductors (100% CU) in AWG 23 offer low resistance and excellent transmission up to 250 MHz, ideal for gigabit distribution in homes, commercial buildings, and industry.
The robust black PE jacket increases resistance to moisture and mechanical stress, making the cable suitable for outdoor runs, conduits, or façade routing. Meter-by-meter length printing makes measuring and route planning fast and error-free.
- Cat6 UTP – unshielded solution for gigabit networks
- CU conductors – solid for stability and lower losses
- PE jacket for outdoor use and higher durability
- Meter markings every 1 m for easy installation
- Length 305 m in a practical carton for smooth dispensing
Specifications
- Cable type
- UTP, Category 6 (unshielded)
- Conductor
- CU 100% copper, solid
- AWG
- 23 (4 × 2 × 0.55 mm)
- Length
- 305 m
- Color
- Black (RAL9004)
- Jacket diameter (approx.)
- 6.0 mm (PE)
- Core insulation
- HDPE, approx. 0.98 mm
- Operating frequency
- up to 250 MHz
- Recommended plug/connector pin diameter
- approx. 1.1 mm for solid conductors
- Packaging
- cardboard box
- Conductor DC resistance (max.)
- 20–36 Ω / 305 m
- Insulation resistance (min.)
- ≥ 5000 MΩ·km
- Pair-to-ground capacitance
- < 160 pF / 100 m
- Characteristic impedance
- 100 Ω (±15%)
- Operating temperature
- -20 to +75 °C
- Storage/transport temperature
- 0 to +60 °C
- Maximum segment length
- 100 m
