Universal 3D scanner for small and large objects with accuracy up to 0.02 mm and scan speed up to 20 fps. Thanks to four stereo lenses, spray-free scanning, and a 24-bit RGB camera, it faithfully captures colors and textures. Compatible with Windows and macOS, export to OBJ/STL/PLY for easy integration into your workflow.
One scanner for fine details and large objects
Two pairs of lenses handle precise capture of miniature parts as well as large objects. The long‑focal‑length optics capture micro‑details, while the short‑focal‑length optics quickly scan larger areas—always with maximum quality.
Broad compatibility and seamless integration
Support for Windows and macOS, expansion to wireless scanning with future accessories, and export to OBJ/STL/PLY. Choose alignment per project—geometry, markers, or texture—and easily integrate the scans into your workflow.
Intuitive operation and reliable power

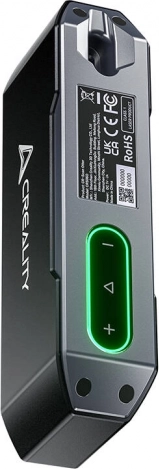

Touch buttons, audio feedback, and clear LED indicators make work easier even in dynamic conditions. 5 V/3 A power and a stable USB‑C connection ensure smooth, uninterrupted scanning.

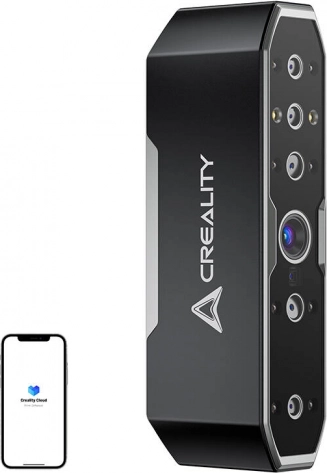

The CREALITY CR-Scan Otter is a powerful yet easy-to-use 3D scanner designed for precise capture of objects from miniature (10 × 10 × 10 mm) to very large pieces (up to 2000 × 2000 × 2000 mm). A combination of structured infrared light, an advanced stereo algorithm, and four lenses delivers detailed geometry and fine textures with minimal noise. Antishake and a frame rate up to 20 fps keep scanning smooth even in motion.
Otter handles challenging surfaces too—it scans without matting spray, including dark and metallic objects. A 24‑bit RGB camera and a pair of auxiliary LEDs provide vivid colors, while 8 IR LEDs enhance marker recognition. It supports multiple alignment modes (geometry/markers/texture) and offers output formats OBJ, STL, PLY for rapid deployment in CAD, DCC, and 3D printing.
- Wide scanning range: from 10 × 10 × 10 mm to 2 × 2 × 2 m
- Top-tier accuracy: up to 0.02 mm at 60 mm
- No spray needed: faithful colors and textures thanks to 24‑bit RGB and auxiliary lighting
- Compatibility: Windows/macOS, ready for wireless scanning with future accessories
- Easy operation: touch buttons, acoustic feedback, and LED status indication
Specifications
- Product name
- Creality CR-Scan Otter 3D scanner
- Manufacturer
- Creality
- Model
- 4008050048
- Accuracy
- up to 0.02 mm at 60 mm
- 3D resolution
- 0.05–2 mm
- Scanning speed
- up to 20 fps
- Minimum scan volume
- 10 × 10 × 10 mm
- Single capture (FOV)
- max 1350 × 840 mm at 1000 mm
- Technology
- structured infrared light
- Working distance
- 110–1000 mm
- Color mapping
- Yes
- Alignment modes
- geometry / markers / texture
- Output formats
- OBJ / STL / PLY
- IMU (inertial measurement unit)
- Yes
- Auxiliary lighting
- 2 white LEDs
- Marker recognition enhancement
- 8 infrared LEDs
- Laser safety
- Class I (eye‑safe)
- Supported systems
- Windows / macOS (*wireless scanning for iPhone iOS/Android requires future accessories)
- Wireless scanning
- supported when paired with future wireless accessories
- Buttons
- touch
- Audio feedback
- Yes
- Calibration plate
- Yes
- Operating temperature
- −10 °C to 40 °C
- Operating humidity
- 0–90% RH
- Power supply
- 5 V / 3 A
- Data interface
- USB‑C / USB 3.0 / USB 2.0
- Device dimensions
- 165 × 37 × 59 mm
- Device weight
- 390 g
