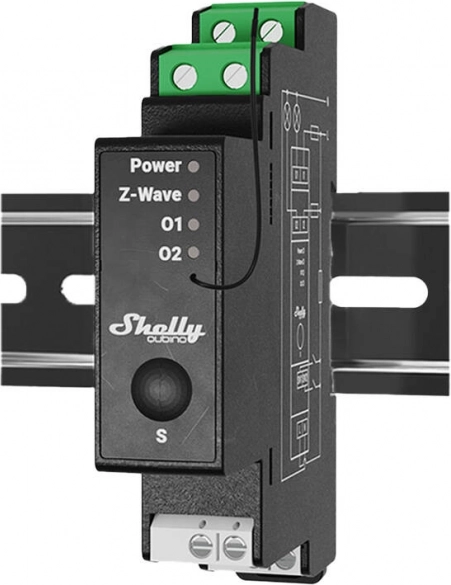

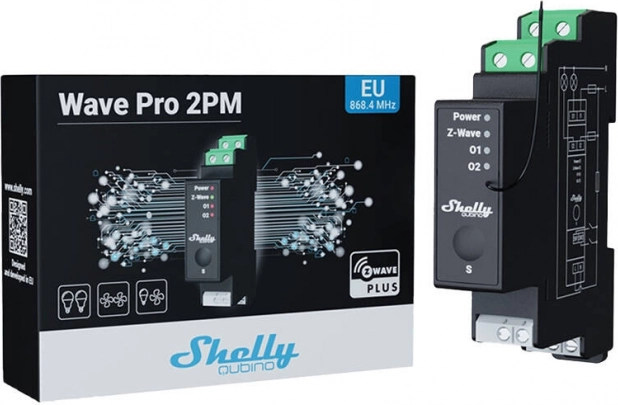

Shelly Qubino Pro 2PM dual-channel relay with energy monitoring
479151-1
€107.00
Take control of your home with Shelly Qubino Pro 2PM: a dual-channel DIN-rail relay with energy monitoring, ideal for complete home automation.
Shelly Qubino Pro 2PM dual-channel relay with energy monitoring
479151-1
Take control of your home with Shelly Qubino Pro 2PM: a dual-channel DIN-rail relay with energy monitoring, ideal for complete home automation.
€107.00
Gain full control over lighting and electrical appliances in your home with the Shelly Qubino Pro 2PM dual-channel relay for DIN-rail mounting. This device enables load control up to 16 A per channel and energy consumption monitoring for efficient cost reduction.
The Shelly Qubino Pro 2PM dual-channel relay is designed for DIN-rail installation to offer maximum flexibility when handling different voltages. With its dry contacts and the ability to control loads up to 16 A per channel (25 A total), it ensures reliable operation even for demanding devices.
Thanks to the energy consumption monitoring feature, you can track the usage of connected devices and optimize your consumption to save costs. The device is ideal for various home automation scenarios, allowing you to control lighting, heating, ventilation, and other appliances. Create schedules, scenes, and automated sequences so your home runs exactly the way you want!
Specifications
- Manufacturer
- Shelly
- Power supply
- 110 - 240 V AC, 50/60 Hz
- Power consumption
- < 0.3 W
- Power measurement
- Yes
- Max. switching voltage AC
- 240 V
- Max. switching current AC
- 16 A per channel, 25 A total
- Overheating protection
- Yes
- Overload protection
- Yes
- Overvoltage protection
- Yes
- Range
- Up to 40 m indoors
- Z-Wave repeater
- Yes
- CPU
- Z-Wave S800
- Z-Wave frequency bands
- 868.4 MHz; 865.2 MHz; 869.0 MHz; 921.4 MHz; 908.4 MHz; 916 MHz; 919.8 MHz; 922.5 MHz; 919.7-921.7-923.7 MHz; 868.1 MHz; 920.9 MHz
- Max. transmit power
- < 25 mW
- Dimensions
- 94 x 19 x 69 ±0.5 mm
- Weight
- 75 g
- Mounting
- DIN rail
- Enclosure material
- Plastic
- Color
- Gray
- Ambient temperature
- -20°C to 40°C / -5°F to 105°F
- Humidity
- 30% to 70% relative humidity
- Maximum altitude
- 2000 m
