Shelly Qubino Wave 2PM two-channel Z-Wave switch with power metering

48,90 €
Shipping from 5,90 €
External warehouse · Delivery on Friday 11 / 13
Product code: 56154-1
Free shipping on orders over €149.00
Hassle-free returns within 30 days
Fast delivery from 5,90 €
Shelly Qubino Wave 2PM is a compact two-channel Z-Wave switch for smart homes. It allows you to control two lights or electrical devices independently, measure power and energy consumption on each channel, and install it conveniently in a standard electrical installation box.
Two independently switched circuits

Two independently switched circuits

Control two lights or other electrical devices independently. Control is available via a wall switch, app, home automation system, or voice control.

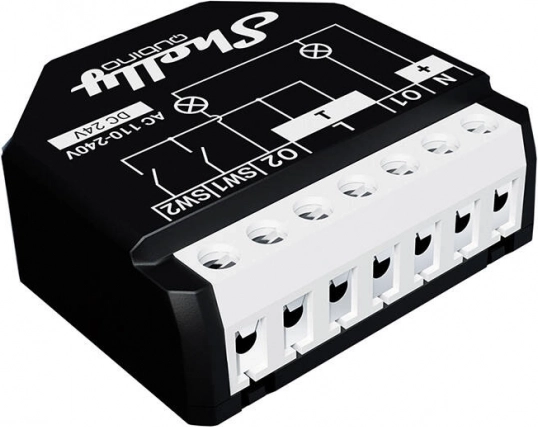

Energy consumption measurement

Energy consumption measurement

Integrated power measurement on each channel and monitoring of total consumption help you track the energy usage of connected devices.

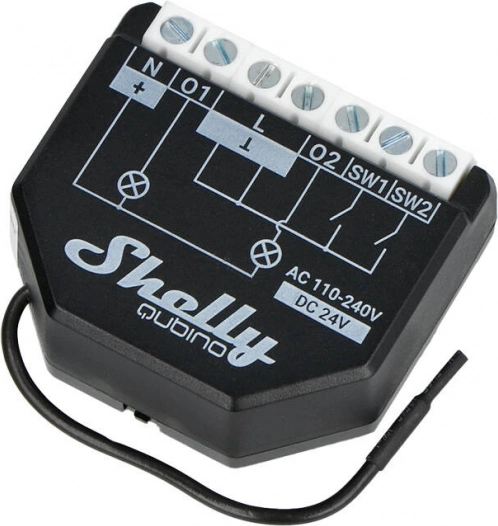

Compact smart home module

Compact smart home module

Thanks to its compact dimensions, the module can be installed in standard electrical installation boxes. SmartStart support makes it easier to add the module to a Z-Wave system.

Shelly Qubino Wave 2PM brings reliable electrical circuit control to your smart home. Compatibility with certified Z-Wave gateways and thousands of Z-Wave devices makes it easy to integrate into your existing automation system. Connected appliances can be controlled using a manual switch, mobile app, home automation system, or voice control.

Two independent channels allow you to control, for example, two lights or other electrical devices separately. Integrated power measurement on individual channels and monitoring of total consumption provide a better overview of energy usage in your home.

The module offers low power consumption of less than 0.3 W, SmartStart for easier configuration, protection against overheating and overload, and wireless firmware updates. Create schedules, sunrise and sunset-based automations, and custom Z-Wave scenes precisely according to your daily routine.

Specifications

Manufacturer
Shelly
Model
Qubino Wave 2PM
Type
Two-channel Z-Wave switch with power metering
Power supply
110–240 V AC / 24 V DC ±10 %
Power consumption
< 0.3 W
Power measurement
Yes
Maximum AC switching voltage
240 V
Maximum AC switching current
10 A per channel, 16 A total, 18 A total peak
Maximum DC switching voltage
30 V
Maximum DC switching current
10 A
Overheating protection
Yes
Overload protection
Yes
Range
Up to 40 m indoors, depending on local conditions
Z-Wave repeater
Yes
Processor
Z-Wave S800
Z-Wave frequency band
868.4 MHz
Maximum transmission power
< 25 mW
Dimensions (H × W × D)
37 × 42 × 16 mm ±0.5 mm
Installation
In an electrical installation box / on a wall
Maximum screw terminal tightening torque
0.4 Nm
Wire cross-section
0.5–1.5 mm² (20–16 AWG)
Wire strip length
5–6 mm
Enclosure material
Plastic
Color
Black
Operating temperature
-20 to 40 °C
Operating humidity
30–70 % relative humidity
Maximum altitude
2,000 m
