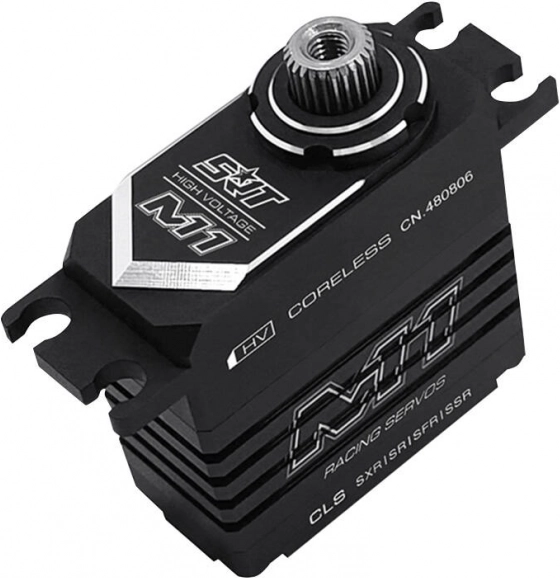

Digital Coreless Servo M11 HiVolt

58737-1
€84.50
On the road, at your place 10. 9. 2025
Digital servo SRT M11 HiVolt: High performance, coreless motor, metal gear train, precise control, and long service life ideal for RC vehicles.

Digital Coreless Servo M11 HiVolt

58737-1
Digital servo SRT M11 HiVolt: High performance, coreless motor, metal gear train, precise control, and long service life ideal for RC vehicles.
€84.50
On the road, at your place 10. 9. 2025
Servo M11 HiVolt with coreless technology is an ideal choice for RC vehicle models. It offers fast response and low power consumption, ensuring precise control and high performance.
Excellent performance

Excellent performance

The servo supports various high-speed modes for a wide range of applications.

Quality construction

Quality construction

The metal gear train ensures long service life and durability even in extreme conditions.

Precise control

Precise control

Low deadband and fast signal response for accurate and fine control.

The digital M11 HiVolt servo is designed for a wide range of RC vehicle models. Thanks to support for multiple operating modes, including high-speed SXR, SFR, SR, and SSR modes, it provides excellent flexibility for various applications. The servo excels in performance thanks to the coreless motor and has a very low deadband of only 2 μs, enabling immediate response to changes in the control signal.

The SRT M11 features dual ball bearings and a metal gear train made of titanium and steel, ensuring long service life and durability. The precise pulse-width control system ensures smooth and fast movements.

Ideal for demanding applications requiring reliability and endurance, the servo offers different performance levels depending on the operating voltage, allowing the user to tailor it precisely to their needs.

Specifications

Model
SRT-M11
Type
Digital
Bearings
Dual
Motor type
Coreless
Gear type
Metal
Gear material
Titanium and steel
Control system
Pulse width control
Operating frequency
1520 μs / 330 Hz
Operating voltage
DC 6.0–8.4 V
Operating speed (6.0 V)
0.07 s/60° no load
Operating speed (7.4 V)
0.065 s/60° no load
Operating speed (8.4 V)
0.055 s/60° no load
Stall torque (6.0 V)
7.0 kg·cm
Stall torque (7.4 V)
8.0 kg·cm
Stall torque (8.4 V)
9.0 kg·cm
Potentiometer drive
Direct
Dimensions
28.5 × 13.4 × 29 mm
Weight
28 g
Connector lead length
170 mm (JR-type connector)
