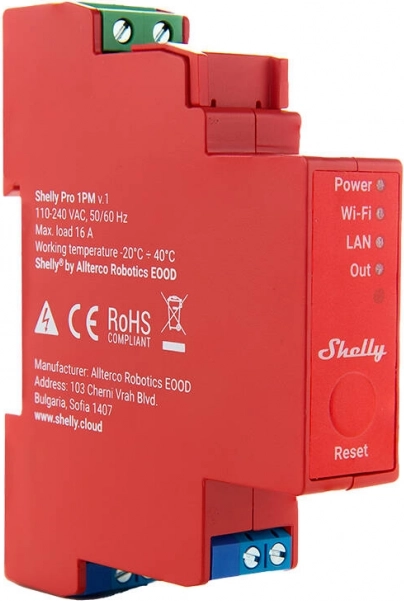

Shelly Pro 1PM measuring relay for DIN rail with WiFi/LAN
718859-1
€89.90
Shelly Pro 1PM: Smart relay for DIN rail with WiFi/LAN, measures consumption and allows remote control.
Shelly Pro 1PM measuring relay for DIN rail with WiFi/LAN
718859-1
Shelly Pro 1PM: Smart relay for DIN rail with WiFi/LAN, measures consumption and allows remote control.
€89.90
Shelly Pro 1PM is a smart single-channel switch designed for DIN rail mounting with consumption monitoring features. With WiFi and LAN support, it provides efficient appliance control with a maximum load of 16 A.
Easy DIN rail installation
Shelly Pro 1PM is designed for easy DIN rail installation, facilitating integration into existing systems.
Accurate consumption tracking
The built-in meter allows tracking energy consumption, helping users optimize their energy expenses.
Support for wide temperature ranges
The device is designed for use within a temperature range of -20 °C to 40 °C, enabling diverse applications in various conditions.
Shelly Pro 1PM is a smart relay capable of connecting via WiFi and LAN, suitable for intelligent home and building automation. It features a built-in consumption meter allowing users to monitor the consumption of connected devices in real-time, ideal for optimizing energy expenses.
Key features:
- Compatibility with voice assistants: Supports assistants like Google Assistant, Amazon Alexa, Samsung SmartThings.
- Remote control: Ability to control devices such as electrical circuits, lighting, or heating systems from anywhere.
- Automation: Create custom scenarios to optimize home management based on various events.
The device supports integration with popular platforms, enhancing the comfort and efficiency of smart home systems.
Specifications
- Manufacturer:
- Shelly
- Model:
- SPSW-201PE16EU
- AC source voltage:
- 110 - 240 V
- Power consumption:
- < 3 W
- Maximum AC switching voltage:
- 240 V
- Maximum AC switching current:
- 16 A
- AC voltmeter:
- Yes
- AC ammeter:
- Yes
- Internal temperature sensor:
- Yes
- Wi-Fi protocol:
- 802.11 b/g/n
- Wi-Fi range:
- Up to 30 m indoors and up to 50 m outdoors
- Bluetooth protocol:
- 4.2
- Bluetooth range:
- Up to 10 m indoors and up to 30 m outdoors
- CPU:
- ESP32-D0WDQ6
- Flash memory:
- 8 MB
- Dimensions:
- 94 x 19 x 69 mm ±0.5 mm
- Mounting:
- DIN rail
- Housing material:
- Plastic
- Ambient operating temperature:
- From -20 °C to 40 °C
- Humidity:
- From 30% to 70% relative humidity
- Maximum altitude:
- 2000 m
