Digital Clamp Meter Habotest HT208A True RMS






Digital Clamp Meter Habotest HT208A True RMS

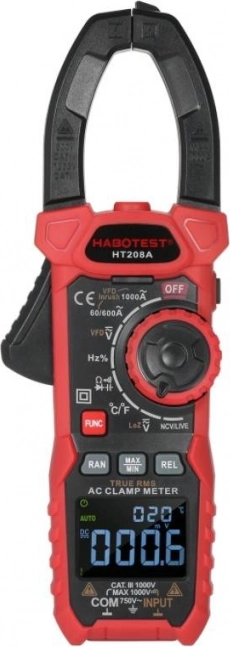

The HABOTEST HT208A is a multifunctional clamp meter designed for fast and safe diagnostics of electrical installations, appliances, and industrial equipment. Thanks to True RMS, it delivers reliable results even with non-linear loads. Wide jaws of 44 mm and an AC current range up to 1000 A enable convenient measurements without breaking the circuit.
The integrated NCV function detects voltage contactlessly with audible and visual indication, while the color backlit LCD improves readability (orange warning at high voltage). The instrument offers continuity with buzzer and LED, diode test, MAX/MIN, LPF, data hold, and auto power-off for energy saving. It is powered by 2× AA batteries (included).
Key benefits:
- True RMS for accurate measurements in real conditions
- Wide range of functions: AC voltage/current, resistance, capacitance, frequency, temperature, duty cycle, continuity, diodes
- NCV non-contact voltage detection with audible/visual indication
- 6000-count display with dual backlight and flashlight
- Safety rating CAT III 1000 V / CAT IV 600 V, compliant with EN61010 and EN61326-1
Specifications
- Display
- 6000 counts, dual backlight
- DC voltage (DCV)
- 6 V / 60 V / 600 V / 1000 V, ±(1 % + 3)
- AC voltage (ACV)
- 6 V / 60 V / 600 V / 750 V, ±(1.2 % + 3)
- DC current (DCA)
- n/a
- AC current (ACA)
- 60 A / 600 A / 1000 A, ±(3.0 % + 5)
- Resistance
- 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ, ±(1.0 % + 3)
- Capacitance
- 10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1 mF / 10 mF ±(4.0 % + 3); 100 mF ±(5.0 % + 5)
- Frequency
- 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz, ±(1.0 % + 3)
- Duty cycle
- 1% – 99%, ±(1.0 % + 2)
- Temperature
- -40 °C to 1000 °C, ±(1.0 % + 3)
- Range
- Auto / manual
- Continuity
- Yes, LED and buzzer
- Diode test
- Yes
- Data Hold
- Yes
- NCV
- Yes, LED and buzzer; audible alert on detection, backlight changes to orange at high voltage/current
- True RMS
- Yes
- LPF
- Yes
- MAX/MIN
- Yes
- V-LoZ
- No
- Flashlight
- Yes
- Low battery indication
- Yes
- Auto power-off
- Yes (after ~15 minutes of inactivity)
- Power supply
- 2× AA batteries (included)
- Jaw width
- 44 mm (max conductor diameter approx. 40 mm for comfortable measurement)
- Dimensions
- 240 × 85 × 40 mm
- Weight
- approx. 380 g
- Safety
- EN61010-1, EN61010-2-030, EN61010-2-033; EN61326-1; CAT III 1000 V, CAT IV 600 V
